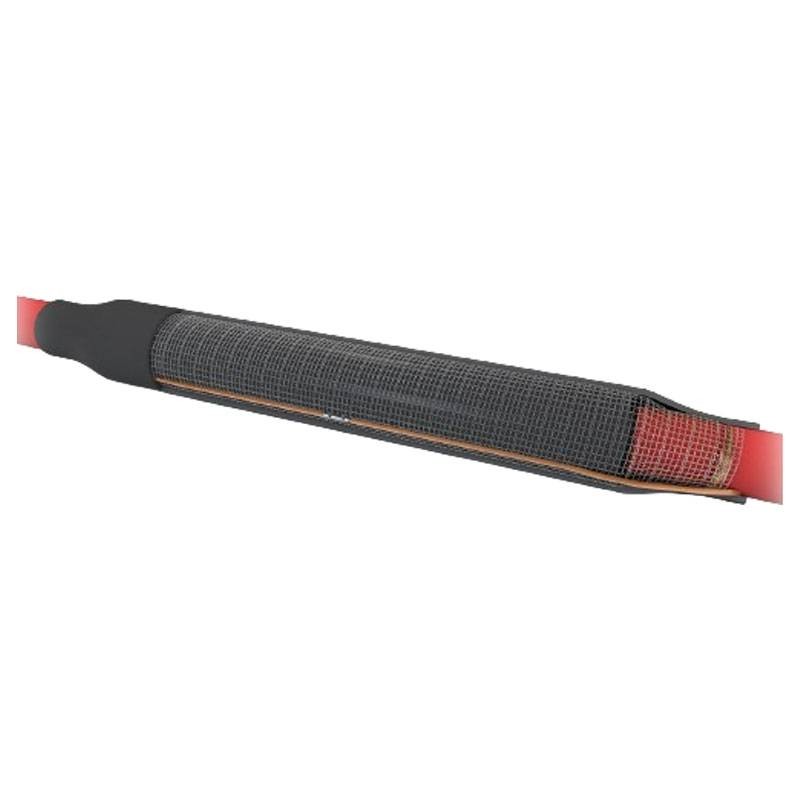

Etelec heat shrinkable joint for 25-95 sq. mm cables JT240951
ETL JT240951
8033501687717
Etelec Medium Voltage Heat Shrinkable Joint for single-core cables with extruded insulation up to 24 kV with the following characteristics:
- Execution: heat shrink
- Max through-wire conductors number: 1
- Min-max cable cross-section: 25-95 sq mm
- Diameter on insulation min-max: 16.5-22.6 mm
- Insulation degree: 12-20 kV
- Length: 650 mm
Application: underground, overhead, submerged.
Kit contents: Heat-shrink tubing, tinned copper stockings, insulating filler tapes, heat-shrink trifurcation, installation instructions.
€106.93
Items Available: 5
: 1
Features:
- Family: Medium Voltage
- In-Line Connection
- Copper Conductor
- Aluminum conductor
- Material: Polyolefin
- Color: Black
- Operating temperature: -20/+120 degrees
- Construction: Heat shrink
- Max through-wire conductors number: 1
- Min-max cable cross-section: 25-95 sq mm
- Diameter on insulation min-max: 16.5-22.6 mm
- Insulation degree: 12-20 kV
- Length: 650 mm
There are no reviews
Data sheet
- Type: Connections
