Etelec gel T-joint for 0.5-2.5 mmq cables IP68 black EV201D
ETL EV201D
8053323905561
Re-accessible and non-toxic silicone gel insulation joint for shunt connection of Etelec EVO 02D power cables with the following characteristics:
- Execution: In pre-filled gel
- Min-max through-wire section: 1.5-4 sq. mm.
- Min-max derived cable section: 1-2.5 sq mm
- Min-max through cable diameter: 10-13 mm
- Min-max derived cable diameter: 6-8 mm
- Number of conductors feed-through cable max: 3
- Number of poles: 3
- Clamping type: Screw type
- Material: Polypropylene
- Color: Black
- Degree of protection: IP68
Application: underground, aerial, submerged, permanent immersion.

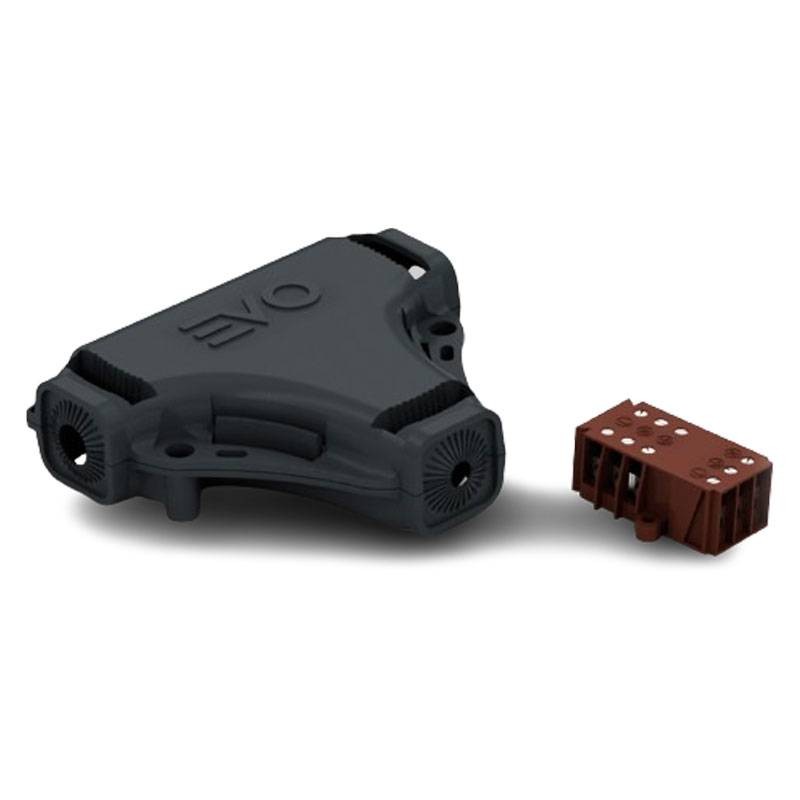

Kit contents: Pre-filled gel joint, Screw terminal block for copper-copper, aluminum-aluminum and copper-aluminum connections, Instructions.
€16.62
Items Available: 27
: 1

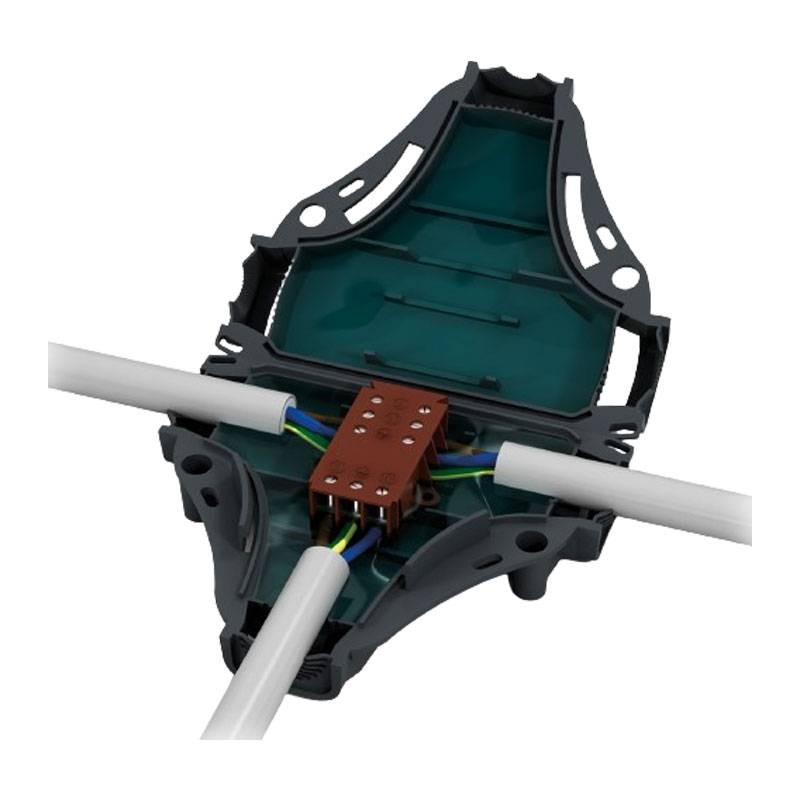

Gel-insulated T-joint for IP68 splices for low voltage 0.6/1 kV cables up to three poles. Laying directly underground, overhead, in conduits.
Even faster and easier installation due to new (improved) fracturable bulkheads and prefilled: no resin or gel to pour. Dimensions: Length 105 mm Width 90 mm Depth 28 mm.
Connector Information:
- Connector included
- Connector Type Included: Screw Terminal Block
- Connector Material: Chrome plated steel
- Pre-insulated connector
- Connector insulation material: PA
- Insulation voltage: 0.6/1 V
- Number of poles: 3
- Clamping type: Screw type
- Copper conductor
- Aluminum conductor
- Copper/aluminum connection
Shell Information:
- Material: Polypropylene
- Dielectric strength kV/mm > 20
- Color: Black
- Operating temperature: - 20/+ 90 degrees
- Self-extinguishing UL94 V2
- Halogen Free (F), (Cl), (Br), (I), (At) Si
- Lead Free Pb
- UV Resistant
Insulation Information:
- Material: silicone gel
- Dielectric Strength kV/mm 27
- Non-toxicity
- Self-extinguishing UL94 HB
- Halogen Free (F), (Cl), (Br), (I), (At) Si
- Lead Free Pb
- No expiration date
