Etelec Gel joint for low voltage cables EVO 03 IP68 EV103
ETL EV103
8053323905493

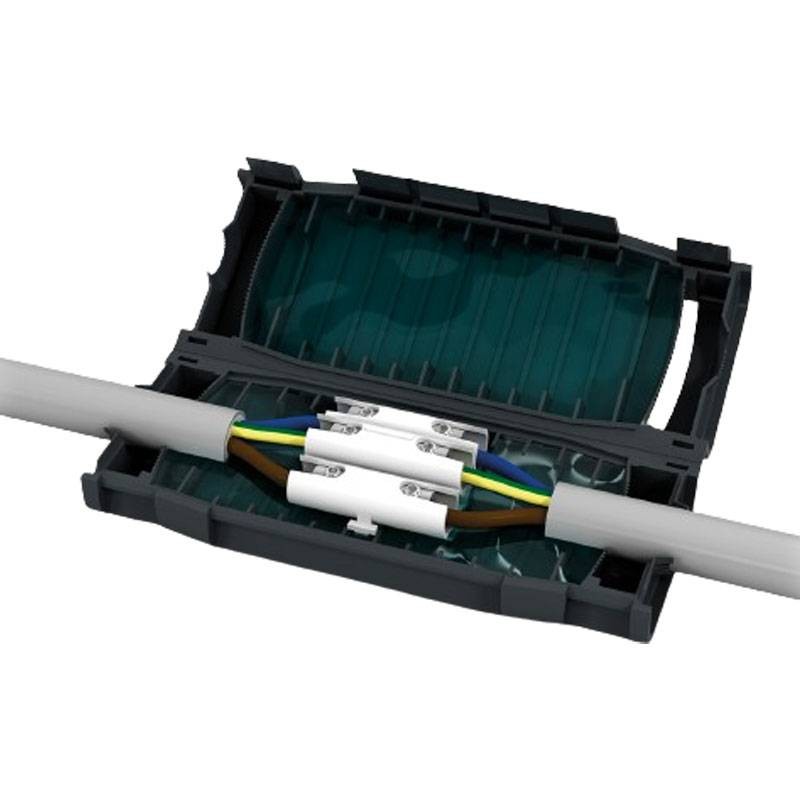

Re-accessible and non-toxic silicone gel insulation joint for in-line connection of Etelec EVO 03 power cables with the following features:
- Construction: In pre-filled gel
- Min-max conductor cross-section: 1.5-6 sq mm
- Min-max cable diameter: 13-17 mm
- Number of conductors pass-through cable max: 5
- Number of poles: 5
- Clamping type: Screw
- Material: Polypropylene
- Color: Black
- Degree of protection: IP68
Application: In free air, in conduit, buried, underground protected, temporary and continuous immersion.

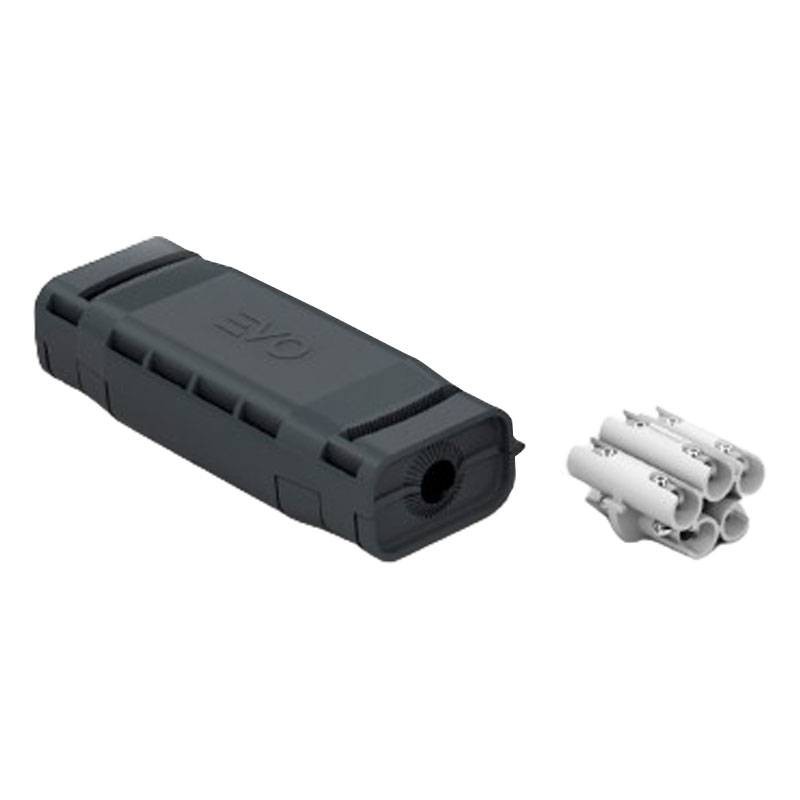

Kit contents: Pre-filled gel joint, MC-RJ screw clamps, Instructions.
€17.27
Items Available: 15
: 3
IP68 re-accessible, non-toxic silicone gel-insulated joint for in-line connection of 0.6/1 kV power cables complete with pentapole connection terminal block with screw clamping. Dimensions: 145 mm length, 56 mm width, 35 mm height.
Connection Information:
- In-Line Connection
- Execution In pre-filled gel
- Laying condition In free air, in conduit, underground, underground protected, temporary and continuous immersion
- Number of conductors through cable max 5
- Cable cross-section (min max): 1.5-6 sq mm
- Through cable diameter (min max): 13-17 mm
Connector Information:
- Connector included
- Connector type included Screw terminal block
- Connector material Tin-plated aluminum
- Pre-insulated connector
- Connector insulation material Nylon PA6
- Insulation voltage kV 0.6/1
- Number of poles 5
- Clamping type Screw type
Information Shell:
- Polypropylene Material
- Dielectric strength kV/mm > 20
- Color Black
- Operating temperature: -20/+90 degrees
- Self-extinguishing UL94 V2
- Halogen Free (F), (Cl), (Br), (I), (At) Si
- UV Resistant
- Innovative locking system
Insulation Information:
- Silicone Gel Material
- Dielectric Strength kV/mm 27
- Color Transparent
- No expiration date
There are no reviews
Data sheet
- Type: Connections
