Etelec Gel joint for low voltage cables EVO 02D IP68 EV202D
ETL EV202D
8053323905530

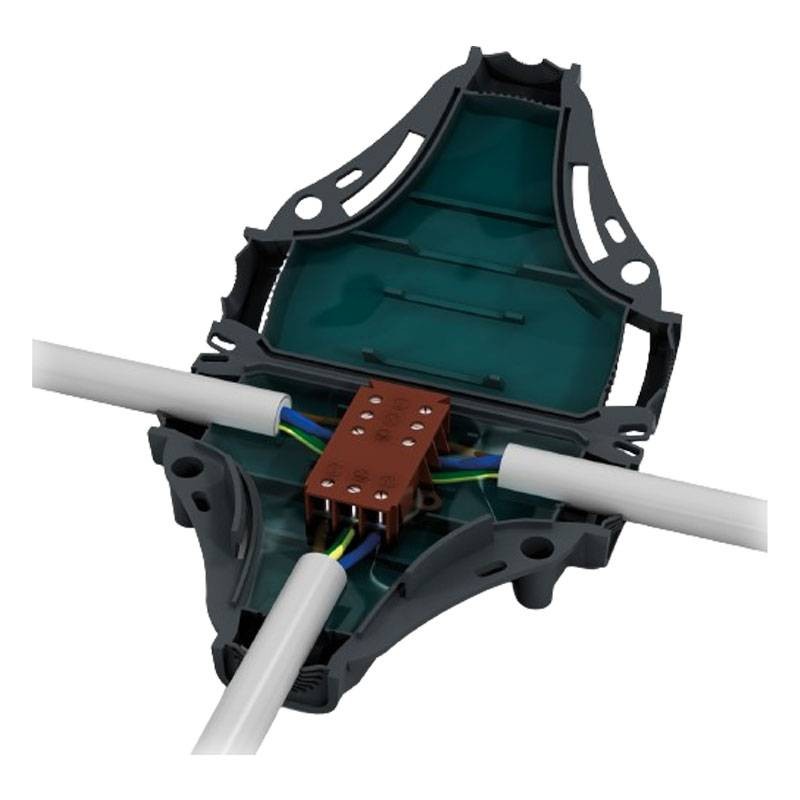

Re-accessible and non-toxic silicone gel insulation joint for shunt connection of Etelec EVO 02D power cables with the following characteristics:
- Execution: In pre-filled gel
- Min-max through-wire cross-section: 1.5-4 sq mm
- Min-max feed-through cable diameter: 10-13 mm
- Min-max derived cable section: 1-2.5 sq. mm
- Min-max derived cable diameter: 6-8 mm
- Number of conductors feed-through cable max: 3
- Number of poles: 3
- Clamping type: Screw type
- Material: Polypropylene
- Color: Black
- Degree of protection: IP68
Application: underground, aerial, submerged, permanent immersion.

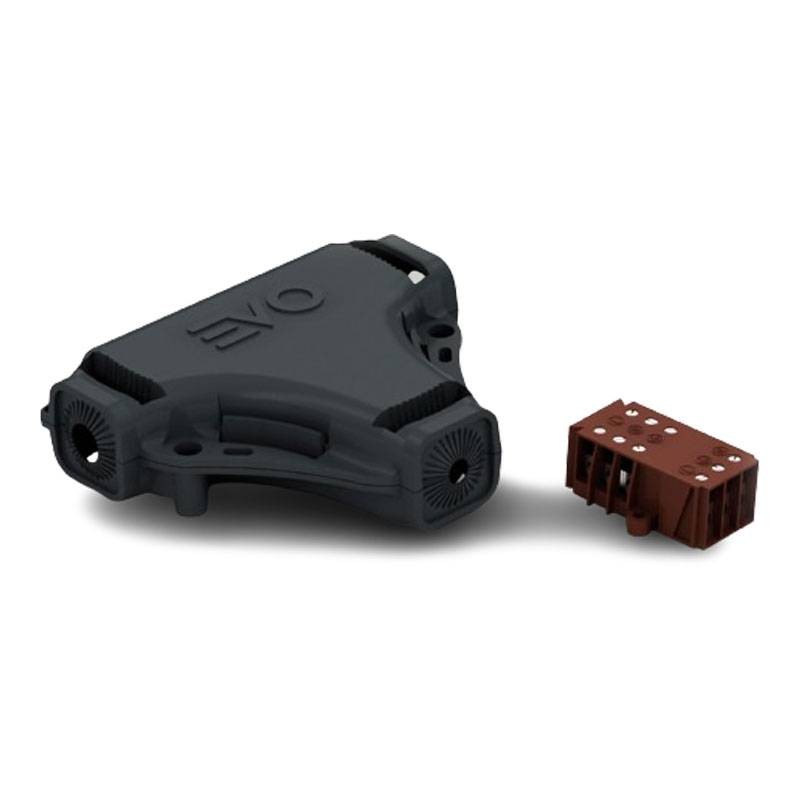

Kit contents: Pre-filled gel joint, Screw terminal block for copper-copper, aluminum-aluminum and copper-aluminum connections, Instructions.
€17.54
Items Available: 27
IP68 re-accessible, non-toxic silicone gel insulation joint for branch connection of power cables. Dimensions: Length 105 mm, Width 90 mm, Depth 28 mm.
Connector Information:
- Connector included
- Connector type included: Screw terminal block
- Connector Material: Chrome plated steel
- Pre-insulated connector
- Connector insulation material: PA
- Insulation voltage: 0.6/1 V
- Number of poles: 3
- Clamping type: Screw type
- Copper conductor
- Aluminum conductor
- Copper/aluminum connection
Shell Information:
- Material: Polypropylene
- Dielectric strength kV/mm > 20
- Color: Black
- Operating temperature: - 20/+ 90 degrees
- Self-extinguishing UL94 V2
- Halogen Free (F), (Cl), (Br), (I), (At) Si
- Lead Free Pb
- UV Resistant
Insulation Information:
- Material: silicone gel
- Dielectric Strength kV/mm 27
- Non-toxicity
- Self-extinguishing UL94 HB
- Halogen Free (F), (Cl), (Br), (I), (At) Si
- Lead Free Pb
- No expiration date
There are no reviews
Data sheet
- Type: Connections
