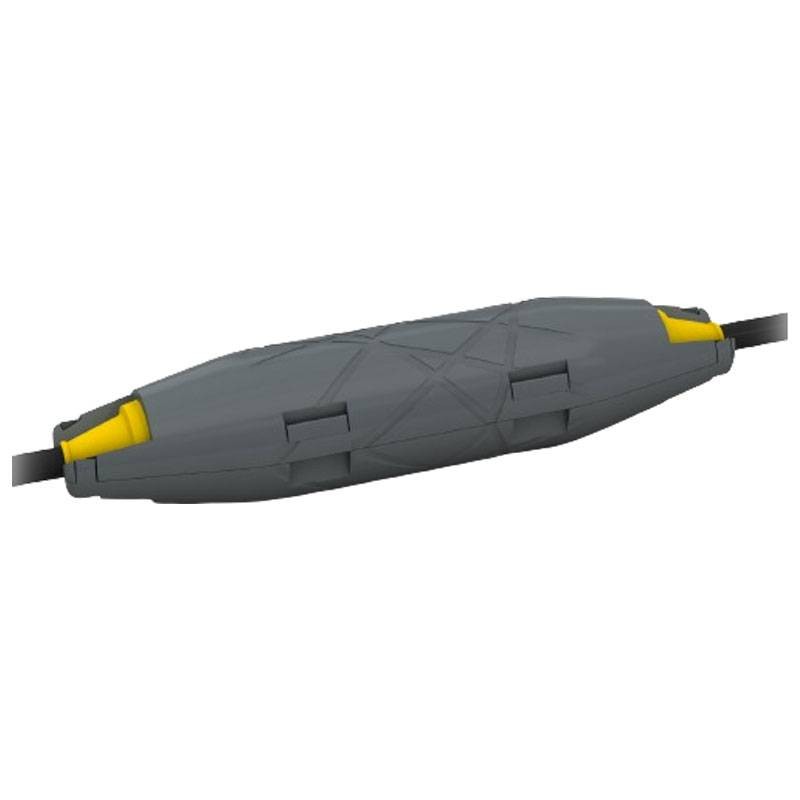

Etelec gel joint for 0.5-1.5 sq. mm cables IP68 LDJ01
ETL LDJ01
8058774266766
Etelec gel-insulated splicing device with two connectors included for cables with the following characteristics:
- Construction: Pre-filled gel
- Max-through cable conductors number: 3
- Min-max cable cross-section: 0.5-1.5 sq. mm
- Min-max cable diameter: 5-9 mm
- Insulation degree: 450 V
- Rated current: 24 A
- Degree of protection: IP68

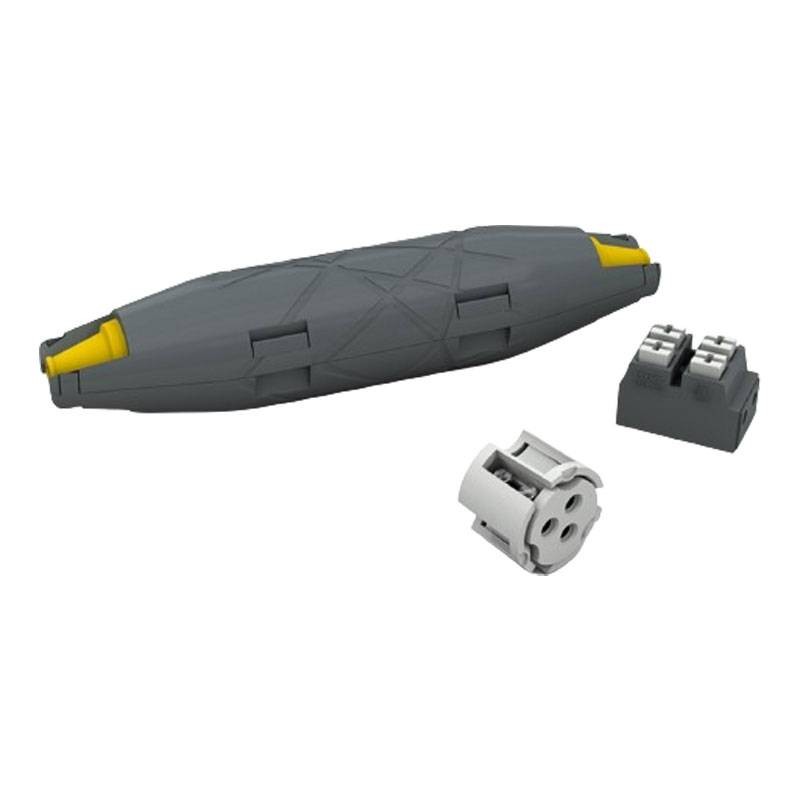

Kit contents: Joint, Two-pole and three-pole connector, Cable clamp system.
€9.81
Items Available: 34
: 10

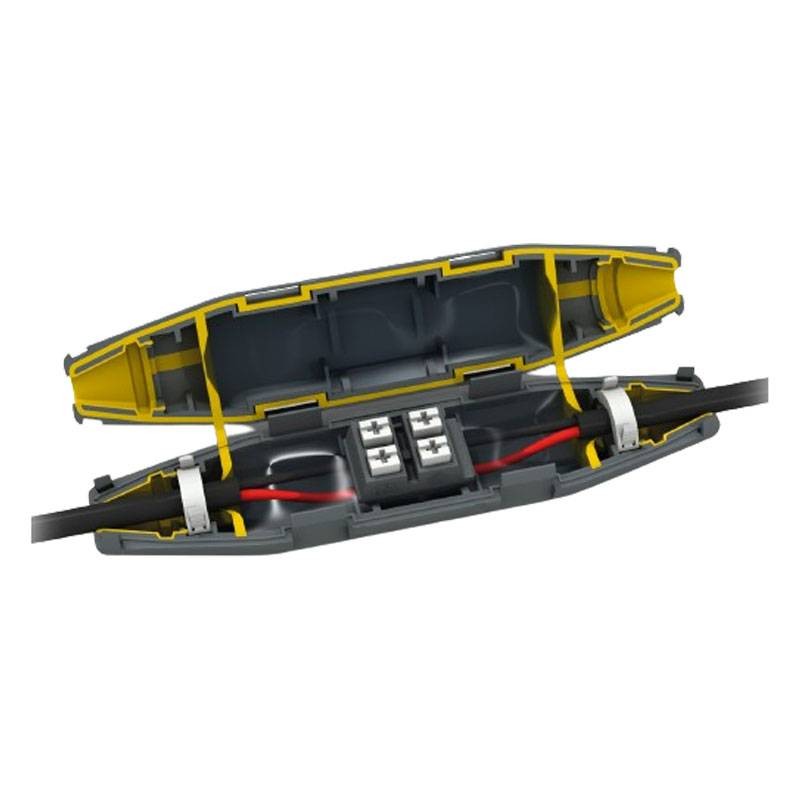

IP68 gel-insulated junction device with two connectors included.

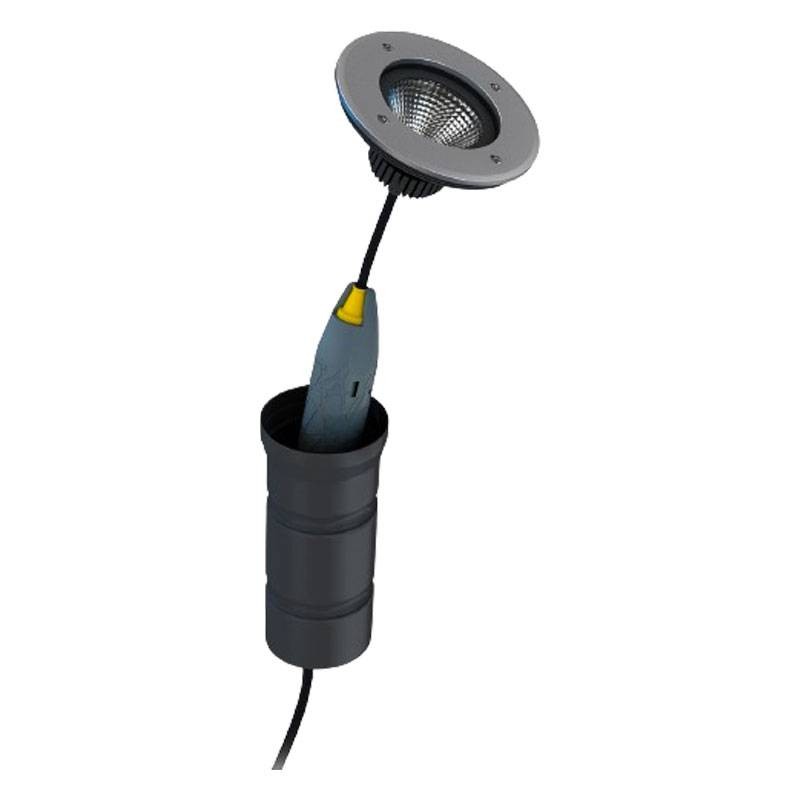

The gel inside Ledjoy preserves the insulation and protection characteristics over time and prevents the capillary rise of moisture in the cables and the formation of condensation inside the equipment, a frequent cause of damage (particularly of LED luminaires).
Characteristics:
- Family: Low Voltage
- Length: 118 mm
- Diameter: 25 mm
- In-Line Connection
- Copper conductor
- Aluminum conductor
- Connector Type Included: Bipolar Connector Tripolar Circular Connector
- Connector Material: Tin-plated Brass Tin-plated Brass
- Clamping Type: Mechanical spring clamp, Mechanical screw clamp
- Colour: Grey/Yellow
- Operating Temperature: -20/+90 degrees
- Construction: Gel pre-filled
- Max-through cable conductor number: 3
- Min-max cable cross-section: 0.5-1.5 sq. mm
- Min-max cable diameter: 5-9 mm
- Insulation degree: 450 V
- Rated current: 24 A
- Degree of protection: IP68
There are no reviews
Data sheet
- Type: Connections
