Etelec gel joint for 0.5-1.5 sq. mm cables IP68 black EV100
ETL EV100
8053323904762
Re-accessible and non-toxic Etelec EVO PX silicone gel joint for in-line connection of 300/500V power cables with the following features:
- Construction: Pre-filled gel
- Max through-wire conductor number: 2
- Min-max conductor cross-section: 0.5-1.5 sq. mm
- Min-max cable diameter: 0.75-2.5 mm
- Rated voltage and current: 450V 24 A
- Insulation degree: 300/500V
- Clamping type: spring type
- Color: Black

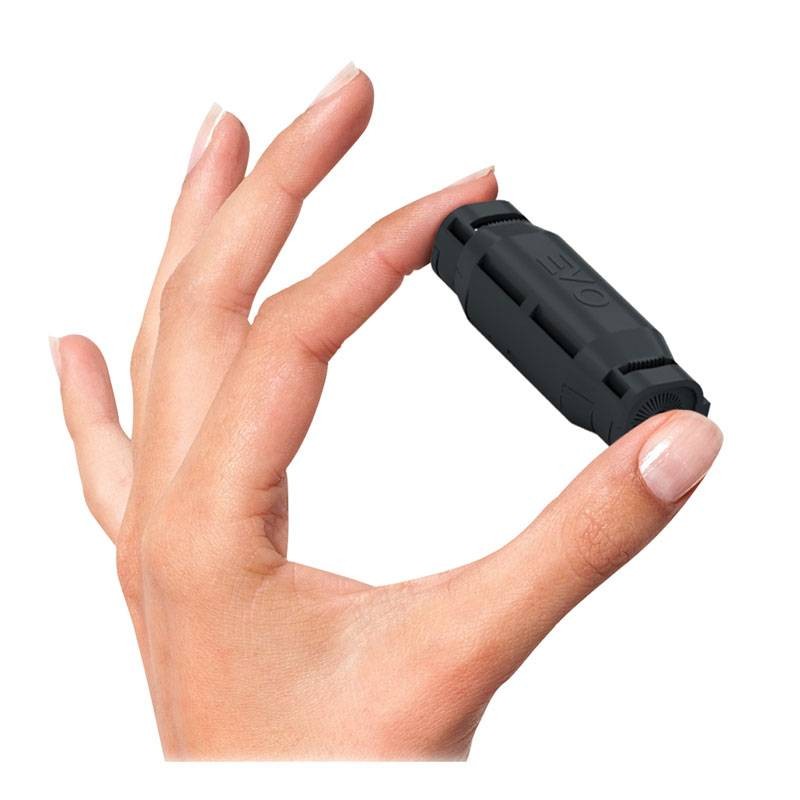

The smallest connection device in the range, the dedicated solution conceived and designed for small cable cross-sections and tight installation spaces: only 68 mm in length and 24 mm in diameter.

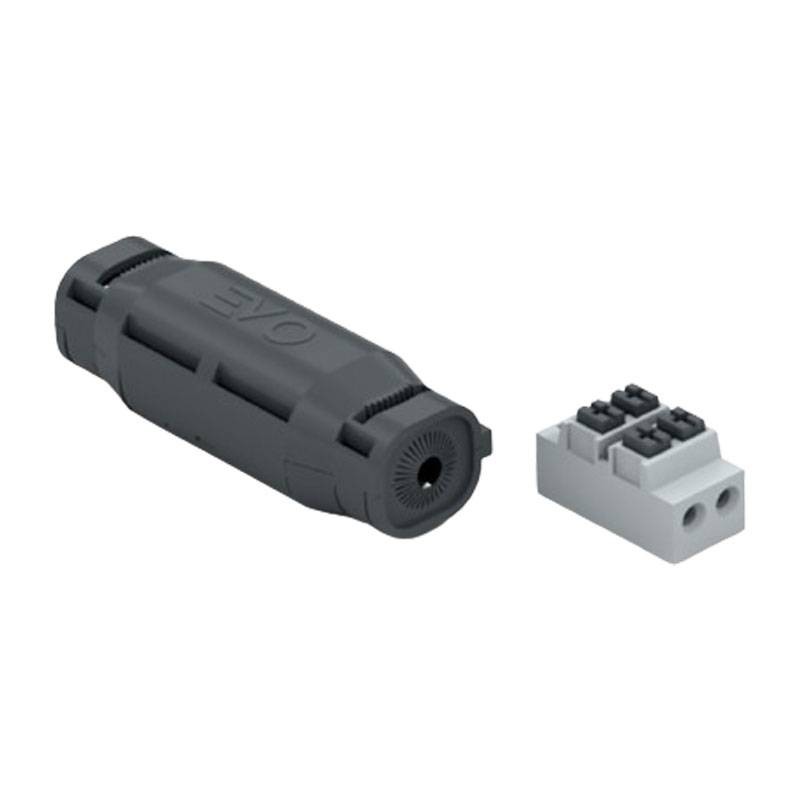

Kit contents: Pre-filled gel connection device, Two-pole SP series terminal block, Instructions.
€5.41
Items Available: 49
: 10
IP68 gel-insulated in-line and branch connection devices. EVO PX The smallest connection device in the range, the dedicated solution conceived and designed for small cable cross-sections and tight installation spaces: only 68 mm in length and 24 mm in diameter, little more than a pixel.
Features:
- Family: Low voltage
- Length: 68 mm
- Width: 24 mm
- Height: 22 mm
- Connector included
- Connector Type Included: Spring Clamp
- Connector Material: Chrome plated steel
- Insulation Voltage: 450V
- Number of poles: 2
- Material: Polypropylene
- Dielectric strength: >20 kV/mm
- Operating Temperature: -20/+90 degrees
- UV Resistant
There are no reviews
Data sheet
- Type: Connections
