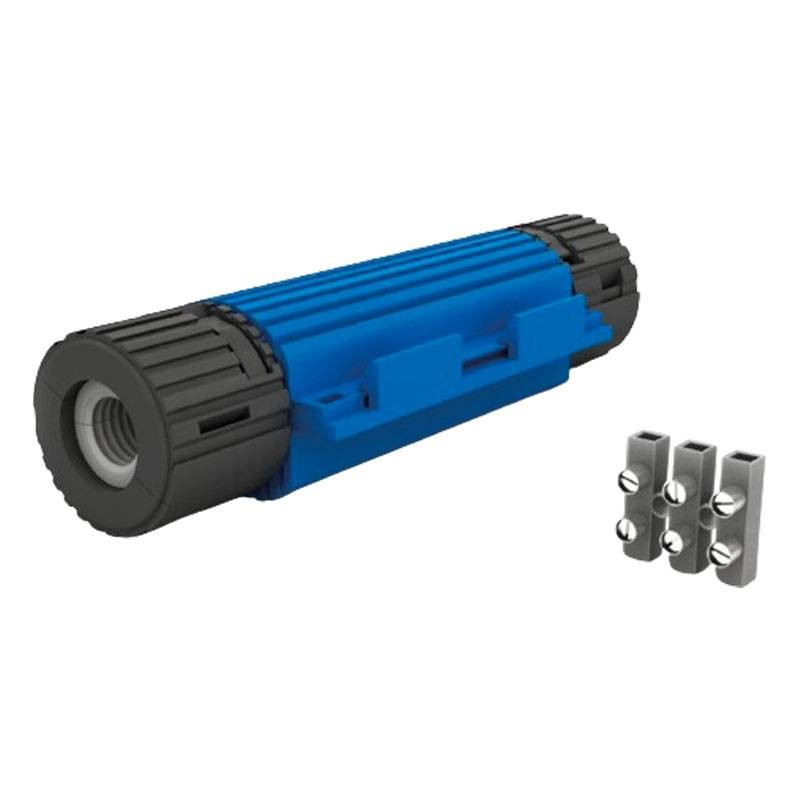

Etelec Gel joint for 0.6/1 kV cables SHARK D 14-21 mm IP68 SH6802
ETL SH6802
8033712908861
Etelec SHARK 6802 re-accessible, non-toxic silicone gel insulation joint for in-line connection of 0.6/1 kV power cables up to five phases with the following features:
- Construction: In pre-filled gel
- Max through-wire cable conductors number: 5
- Min-max cable diameter: 14-21 mm
- Min-max cable cross-section: 2.5-10 sq. mm
- Material: Polypropylene
- Color: Blue/Gray
- Degree of protection: IP68
Application: underground , overhead , submerged.

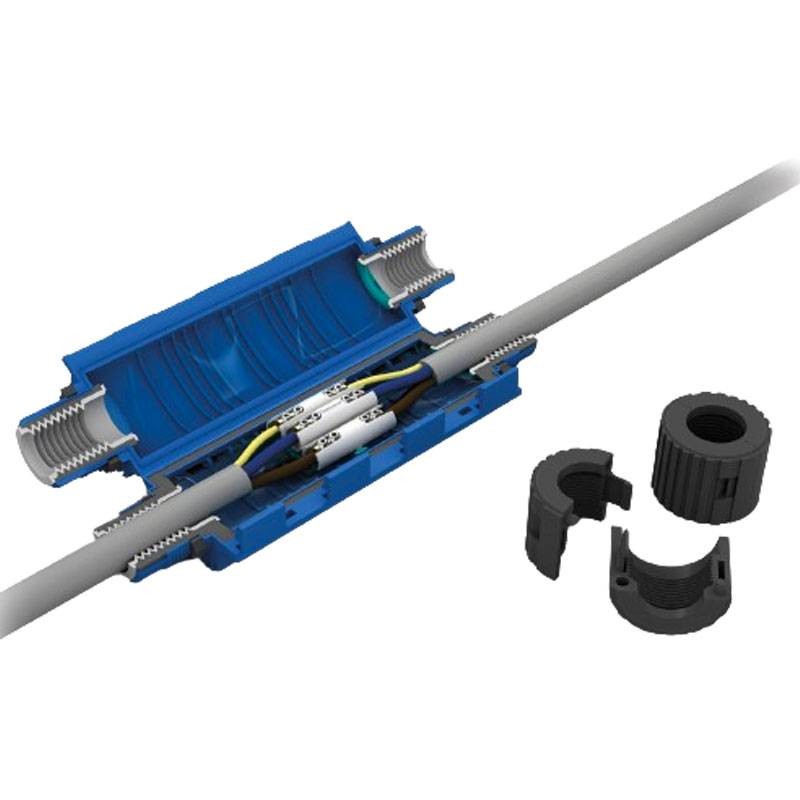

Kit contents: Joint, Clamping nuts, Gaskets, Instructions.
€23.30
Items Available: 2
IP68 re-accessible, non-toxic gel-insulated joint for in-line connection of 0.6/1 kV power cables up to five phases.
Features:
- In-Line Connection
- Pre-filled Gel execution
- Application Buried , overhead , submerged
- Number of conductors through cable max 5
- Insulation degree kV 0.6/1
- UV Resistant
- No expiration date
- Degree of Protection: IP68
- Length: 235 mm
- Width: 69 mm
- Depth: 49 mm
- Thickness: 3 mm
There are no reviews
Data sheet
- Type: Connections
