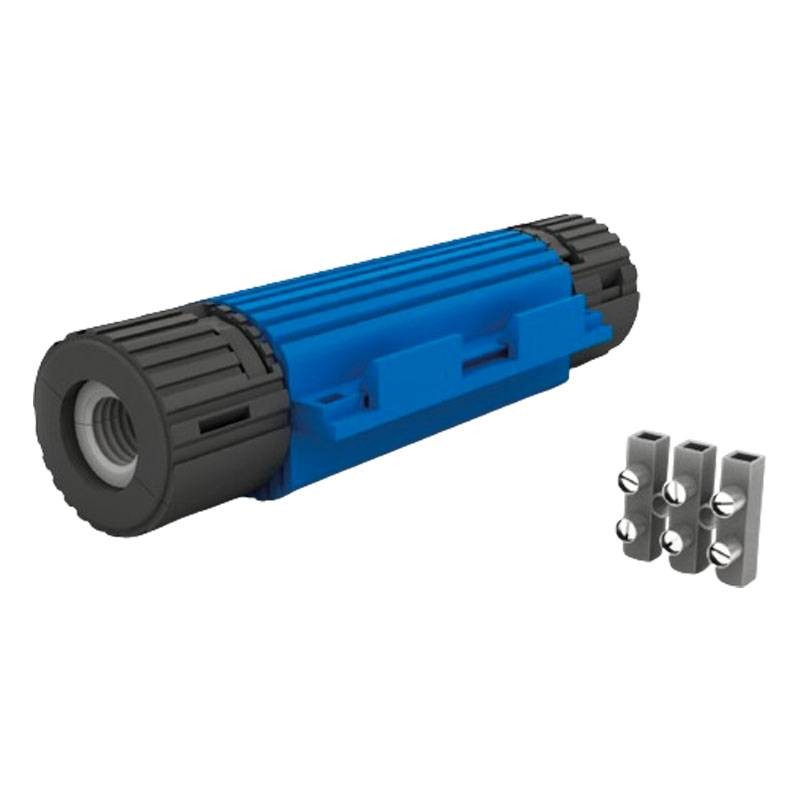

Etelec Gel joint for 0.6/1 kV cables SHARK D 12-18 mm IP68 SH6801
ETL SH6801
8033712908816
Etelec SHARK 6801 re-accessible, non-toxic silicone gel insulation joint for in-line connection of 0.6/1 kV power cables up to five phases with the following characteristics:
- Construction: In pre-filled gel
- Max through-wire cable conductors number: 5
- Min-max cable diameter:12-18 mm
- Min-max cable cross-section:2.5-6 sq. mm
- Material: Polypropylene
- Color: Gray/Blue
- Degree of protection: IP68
Application: underground , overhead , submerged.
Kit contents: Joint, Clamping nuts, Gaskets, Instructions.
€19.38
Items Available: 3

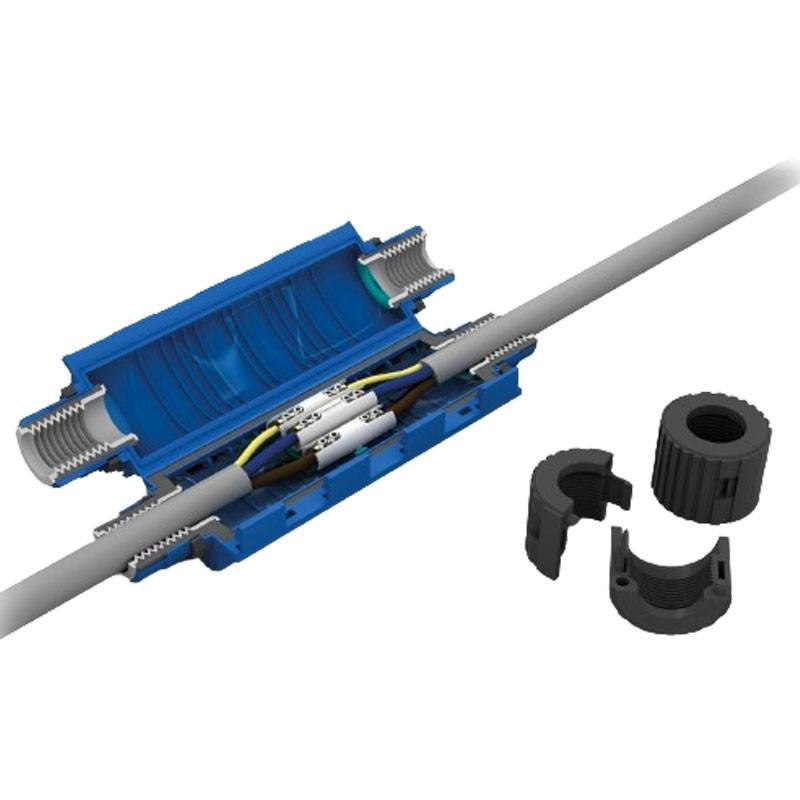

IP68 re-accessible, non-toxic gel-insulated joint for in-line connection of 0.6/1 kV power cables up to five phases.
Features:
- In-Line Connection
- Pre-filled Gel execution
- Application Buried , overhead , submerged
- Number of conductors through cable max 5
- Insulation degree kV 0.6/1
- UV Resistant
- No expiration date
- Degree of Protection: IP68
- Length: 190 mm
- Width: 60 mm
- Depth: 47 mm
There are no reviews
Data sheet
- Type: Connections
