Etelec Gel joint for 0.6/1 kV cables SHARK 2/5x6-16 mmq IP68 SH6516
ETL SH6516
8033501688943

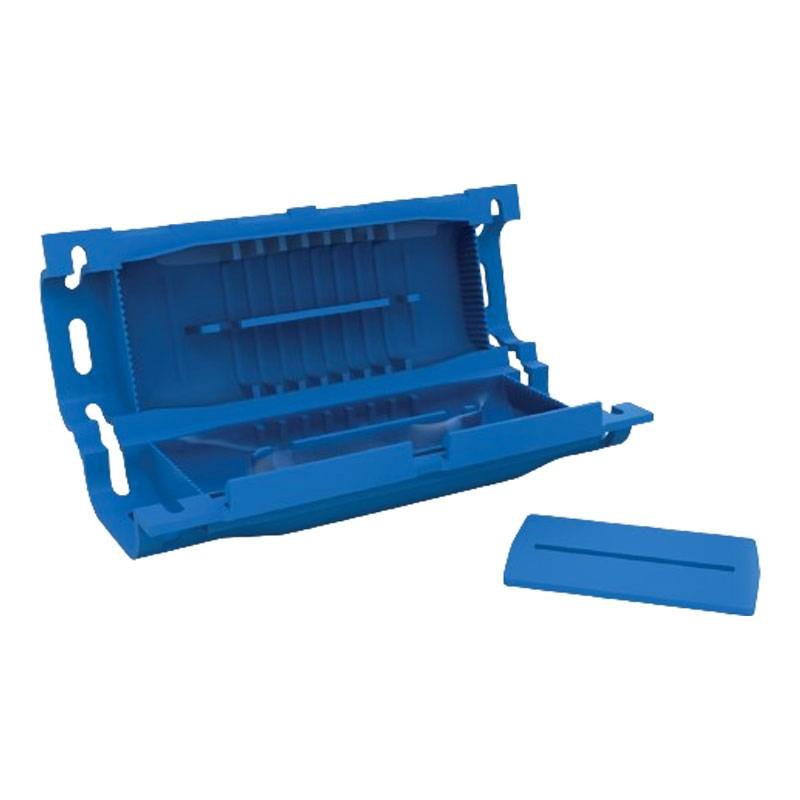

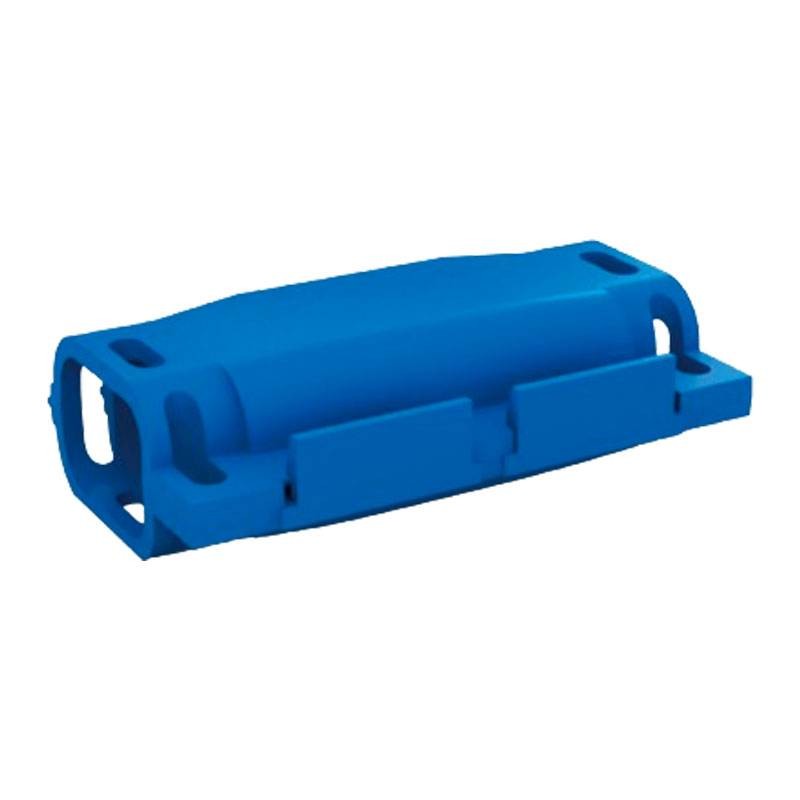

Etelec SHARK 516 re-accessible, non-toxic gel insulation joint for in-line connection of pentapolar 0.6/1 kV power cables complete with insulated pentapolar terminal block with screw clamping with the following features:
- Construction: In pre-filled gel
- Max through-wire conductors number: 5
- Conductor cross-section min-max: 6-16 sq mm
- Material: Polypropylene
- Color: Blue
- Degree of protection: IP68
Application: underground , overhead , submerged.
Kit contents: Joint, Insulated terminal block, Cable ties, Instructions.
€43.81
Items Available: 4
: 1
Re-accessible, non-toxic gel-insulated joint for in-line connection of pentapolar 0.6/1 kV power cables complete with insulated pentapolar terminal block with screw clamping.
Features:
- In-Line Connection
- Pre-filled Gel execution
- Application Inground , overhead , submerged
- Number of conductors through cable max 5
- Insulation degree kV 0.6/1
- UV Resistant
- No expiration date
- Degree of Protection: IP68
- Length: 180 mm
- Width: 69 mm
- Depth: 40 mm
- Thickness: 2 mm
There are no reviews
Data sheet
- Type: Connections
