Etelec Gel joint for 0.6/1 kV cables SHARK 2/4x2.5-10 mmq IP68 SH0410
ETL SH0410
8033712903583

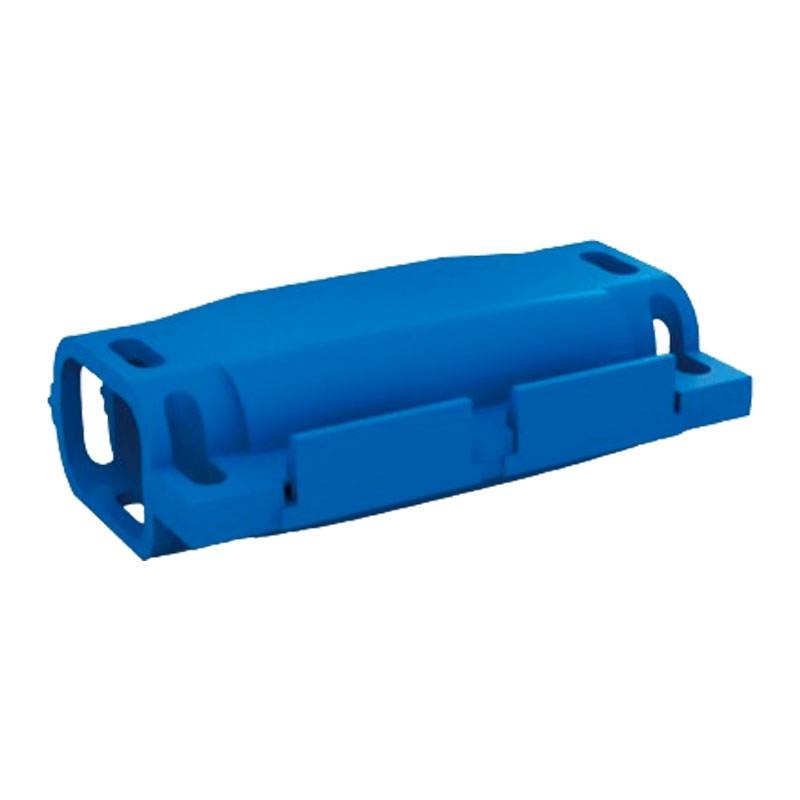

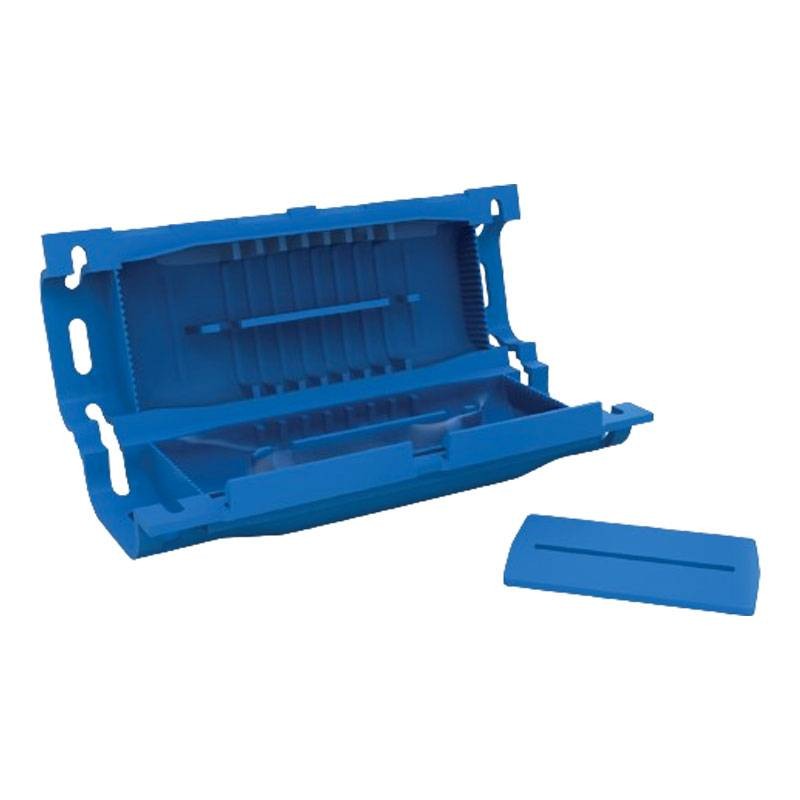

Etelec SHARK 410 re-accessible, non-toxic gel insulation joint for in-line connection of 0.6/1 kV three-core power cables complete with insulated three-core terminal block with screw clamping with the following features:
- Construction: In pre-filled gel
- Max through-wire conductors number: 4
- Min-max conductor cross-section: 2.5-10 sq mm
- Material: Polypropylene
- Color: Blue
- Degree of protection: IP68
Application: underground , overhead , submerged.
Kit contents: Gel pre-filled joint, Phase separator, Cable ties, Instructions.
€13.15
Items Available: 122
: 2
Re-accessible, non-toxic gel-insulated joint for in-line connection of 0.6/1 kV three-core power cables complete with insulated three-core terminal block with screw clamping.
Features:
- In-Line Connection
- Pre-filled Gel execution
- Application Inground , overhead , submerged
- Number of conductors through cable max 4
- Insulation degree kV 0.6/1
- UV Resistant
- No expiration date
- Degree of Protection: IP68
- Length: 146 mm
- Width: 55 mm
- Depth: 35 mm
- Thickness: 2 mm
There are no reviews
Data sheet
- Type: Connections
