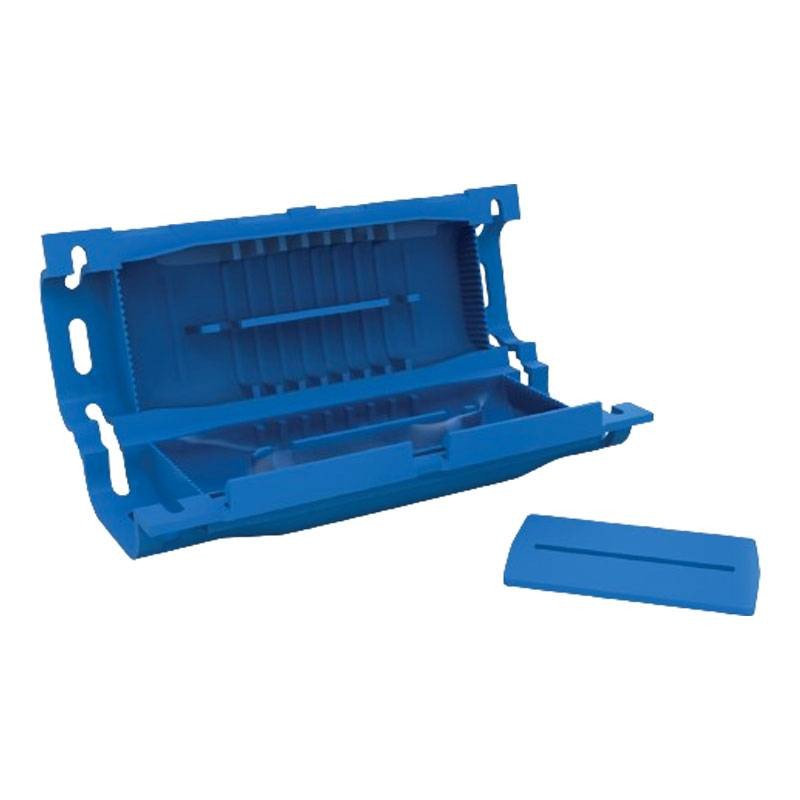

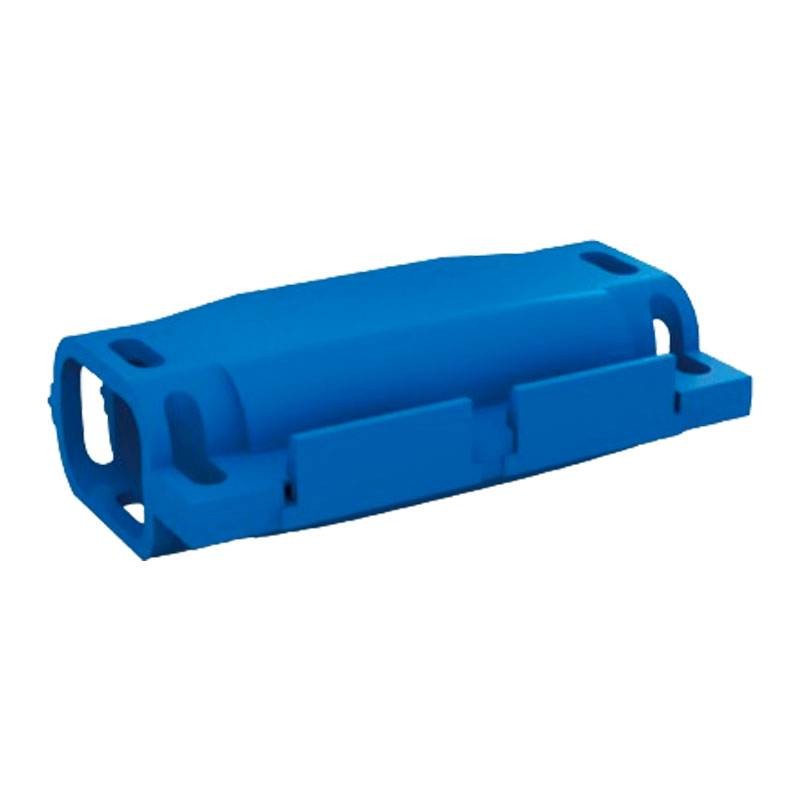

Etelec Gel joint for 0.6/1 kV cables SHARK 2/4x10-16 mmq IP68 SH0416
ETL SH0416
8033712903590
Etelec SHARK 416 re-accessible, non-toxic gel insulation joint for in-line connection of 0.6/1 kV three-core power cables complete with insulated three-core terminal block with screw clamping with the following features:
- Construction: In pre-filled gel
- Max through-wire conductors number: 4
- Min-max feed-through cable cross-section: 4-16 sq mm
- Min-max branch cable section: 1.5-10 mmq
- Material: Polypropylene
- Color: Blue
- Degree of Protection: IP68
Application: underground , overhead , submerged.
Kit contents: Gel pre-filled joint, Phase separator, Cable ties, Instructions.
€20.10
Items Available: 48
: 2
Re-accessible, non-toxic gel-insulated joint for in-line connection of 0.6/1 kV three-core power cables complete with insulated three-core terminal block with screw clamping.
Features:
- In-Line Connection
- Pre-filled Gel execution
- Application Inground , overhead , submerged
- Number of conductors through cable max 4
- Insulation degree kV 0.6/1
- UV Resistant
- No expiration date
- Degree of Protection: IP68
- Length: 180 mm
- Width: 69 mm
- Depth: 40 mm
- Thickness: 2 mm
There are no reviews
Data sheet
- Type: Connections
