Etelec Gel joint for 0.6/1 kV cables SHARK 2/3x1.5-2.5 mmq IP68 SH0325
ETL SH0325
8033712907185

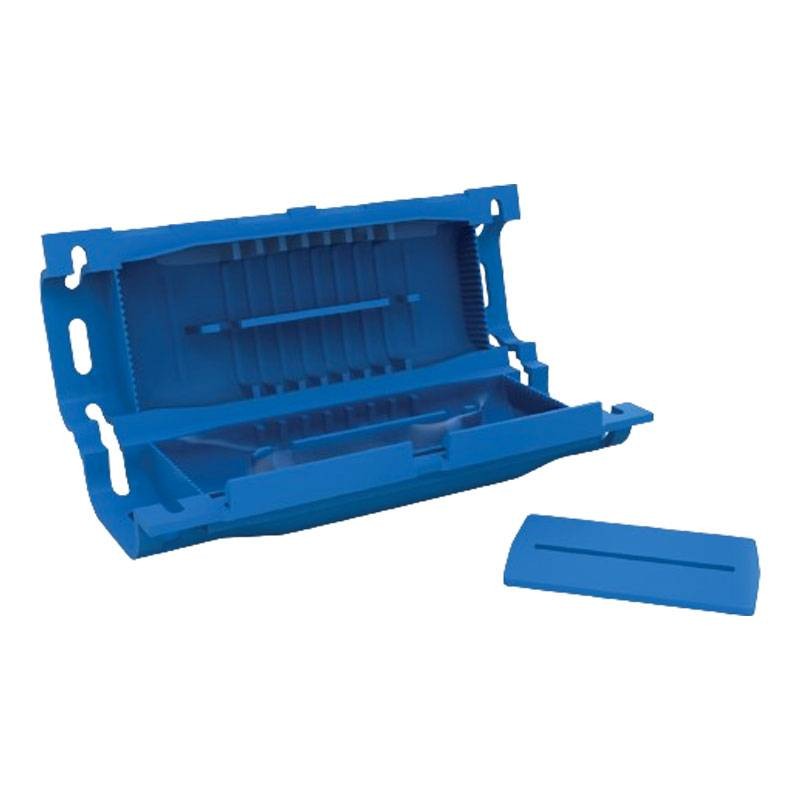

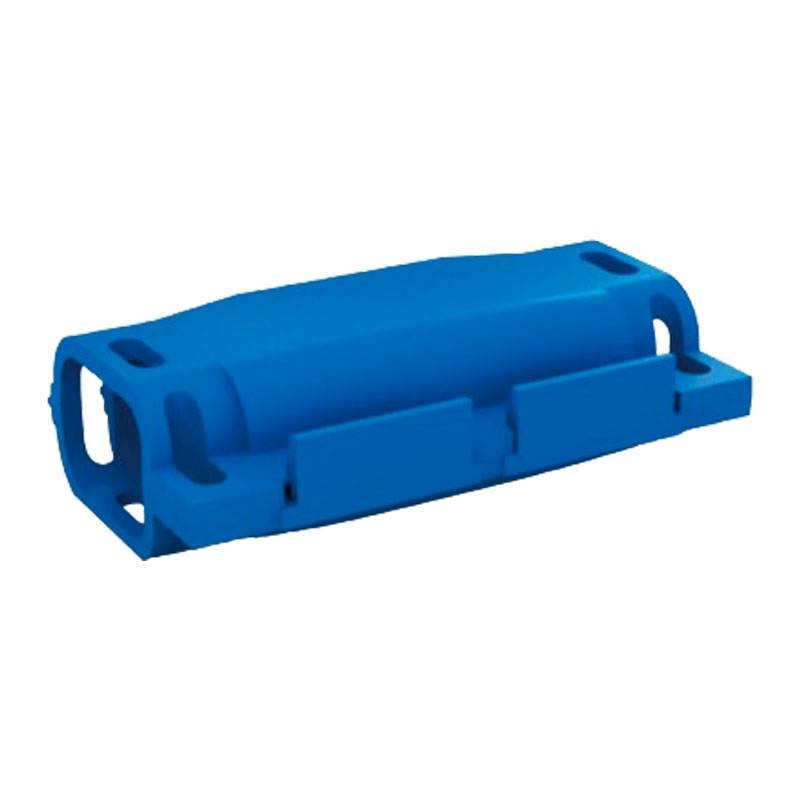

Etelec SHARK 325 re-accessible, non-toxic gel insulation joint for in-line connection of 0.6/1 kV three-core power cables complete with insulated three-core terminal block with screw clamping with the following features:
- Construction: In pre-filled gel
- Max through-wire conductor number: 3
- Conductor cross-section min-max: 1.5-2.5 sq mm
- Material: Polypropylene
- Color: Blue
- Degree of protection: IP68
Application: underground , overhead , submerged.
Kit contents: Joint, Insulated terminal block, Cable ties, Instructions.
€10.34
Items Available: 124
: 30
Re-accessible, non-toxic gel-insulated joint for in-line connection of 0.6/1 kV three-core power cables complete with insulated three-core terminal block with screw clamping.
Features:
- In-Line Connection
- Pre-filled Gel execution
- Application Inground , overhead , submerged
- Number of conductors through cable max 3
- Insulation degree kV 0.6/1
- UV Resistant
- No expiration date
- Degree of Protection: IP68
- Length: 86 mm
- Width: 47 mm
- Depth: 27 mm
- Thickness: 2 mm
There are no reviews
Data sheet
- Type: Connections
