Etelec Gel joint for 0.6/1 kV cables 1x2.5-10 mmq IP68 SH0125
ETL SH0125
8033501680381

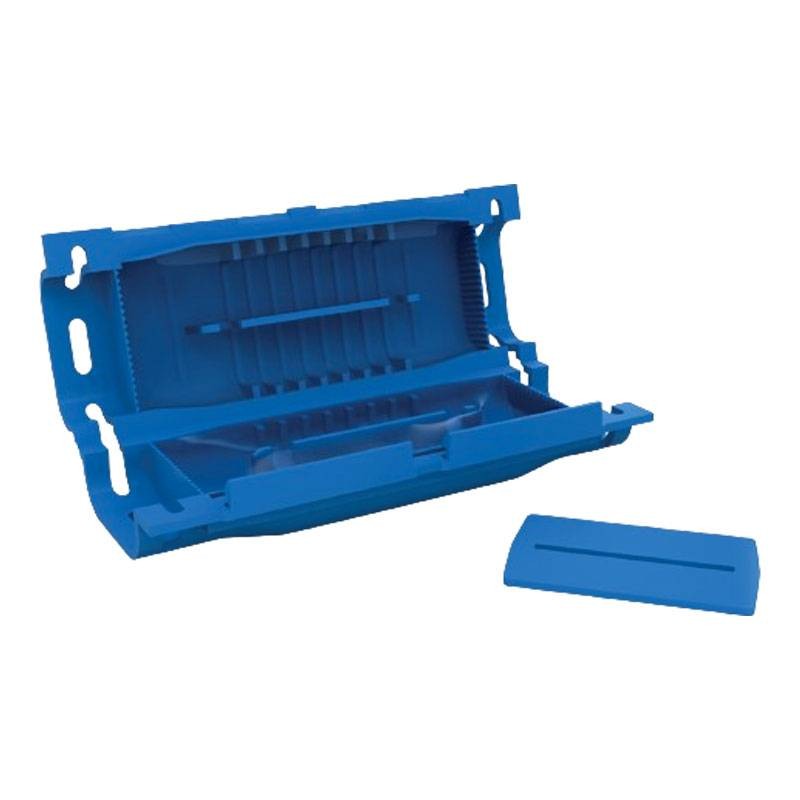

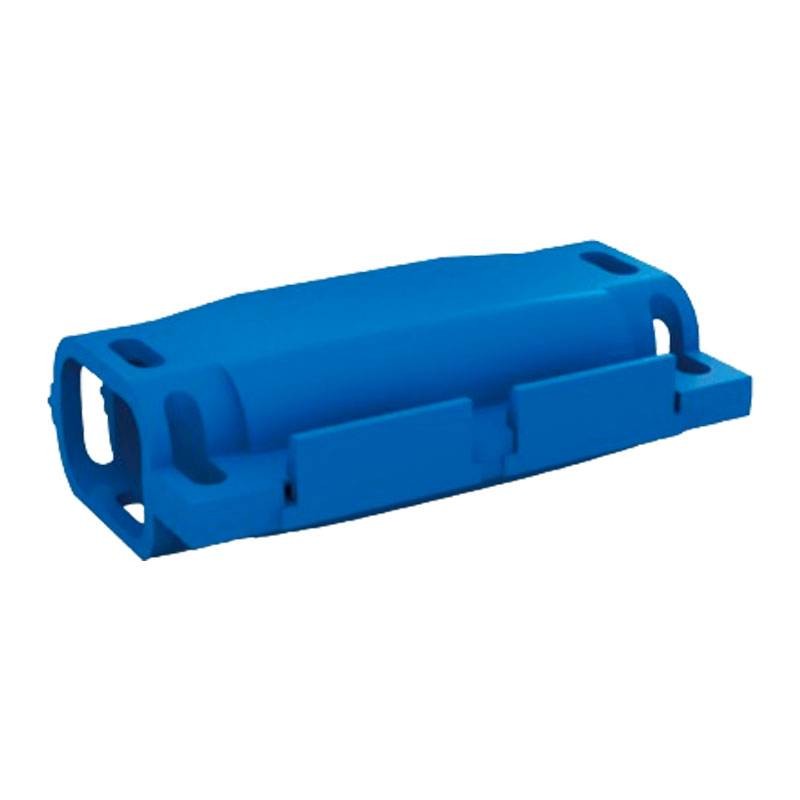

Etelec SHARK 125 reaccessible and nontoxic gel-insulated joint for in-line and branch connection of 0.6/1 kV single-pole power cables with U-clamp clamp with the following features:
- Construction: In pre-filled gel
- Max through-wire conductor number: 1
- Min-max feed-through cable section: 6-25 sq mm
- Min-max branch cable section: 1.5-10 mmq
- Material: Polypropylene
- Color: Blue
- Degree of Protection: IP68
Application: underground , overhead , submerged.
Kit contents: Pre-filled gel joint, Clamp, Hex wrench, Cable ties, Instructions.
€8.83
Items Available: 86
: 38
Re-accessible, non-toxic silicone gel insulation joint for in-line and branch connection of 0.6/1 kV single-pole power cables with U-clamp clamp.
Features:
- In-Line Connection
- Pre-filled Gel execution
- Application Inground , overhead , submerged
- Number of conductors through cable max 1
- Insulation degree kV 0.6/1
- UV Resistant
- No expiration date
- Degree of Protection: IP68
- Length: 72 mm
- Width: 40 mm
- Depth: 23 mm
- Thickness: 2 mm
There are no reviews
Data sheet
- Type: Connections
