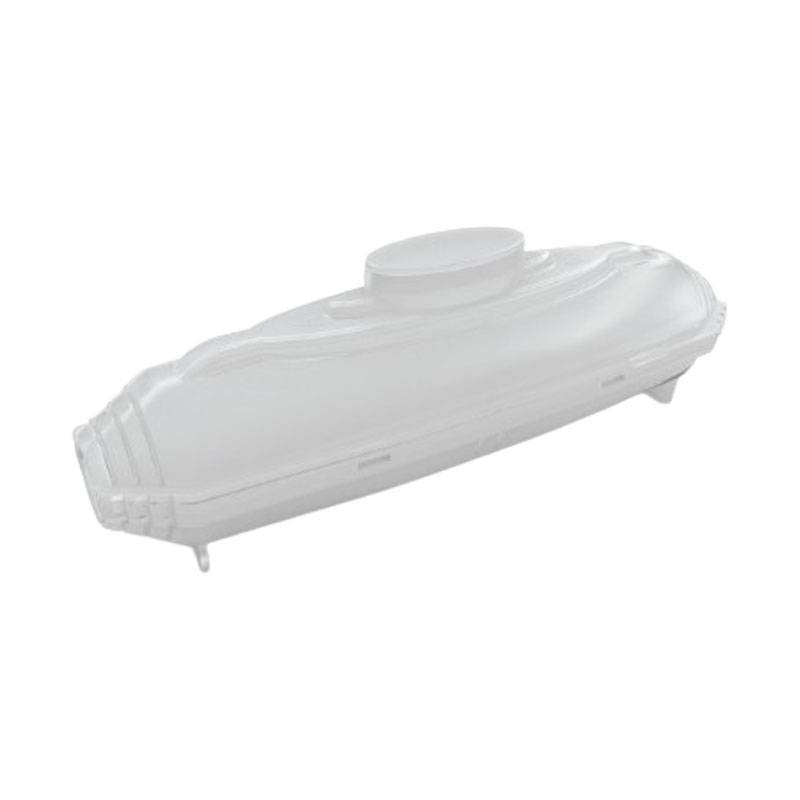

Etelec cable linear joint connector 1.5-10 sq. mm GSA1
ETL GSA1
8058774263345
Etelec re-accessible resin castable linear splice connector for extruded cables up to 5 poles with 0.6/1 kV insulation with the following features:

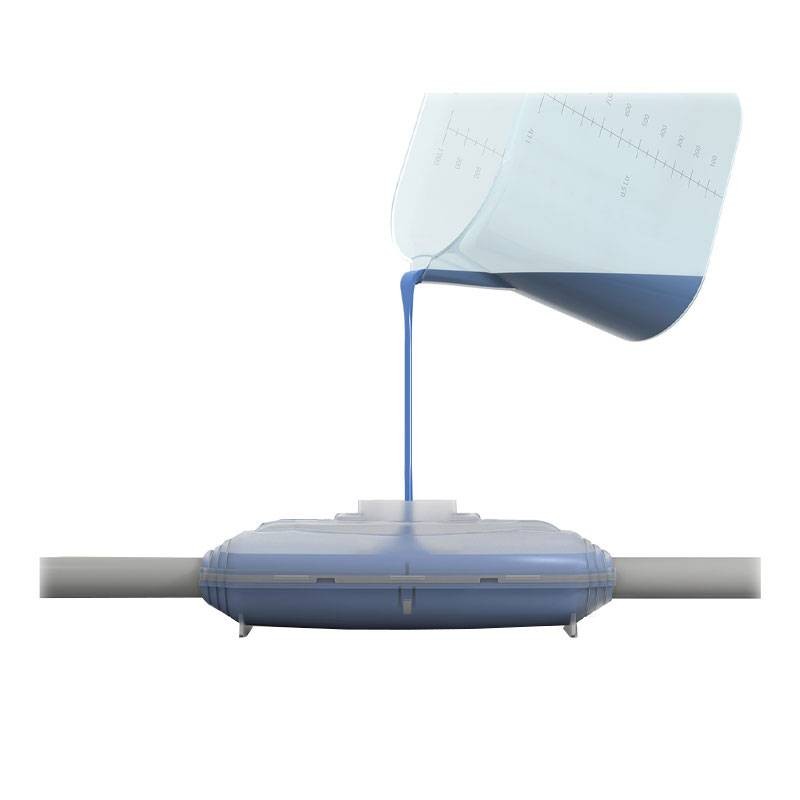

- Execution: Cast-on
- Max through-wire conductor number: 5
- Min-max cable cross-section: 1.5-10 sq mm
- Min-max cable diameter: 7-30 mm
- Insulation degree: 0.6/1 kV
Application: underground, overhead, submerged.
Kit contents: Patented modular separator for cables up to 5 poles, Polypropylene half-connectors, Instructions.
€3.23
Items Available: 36
: 18
Features:
- Family: GSA
- Length: 190 mm
- Width: 51 mm
- Depth: 51 mm
- In-Line Connection
- Copper Conductor
- Aluminum Conductor
- Material: Polypropylene
- Dielectric Strength: > 20 kV/mm
- Construction: Casting
- Max through-wire conductors number: 5
- Min-max cable cross section: 1.5/10 sq mm
- Min-max cable diameter: 7/30 mm
- Insulation degree: 0.6/1 kV
There are no reviews
Data sheet
- Type: Connections
