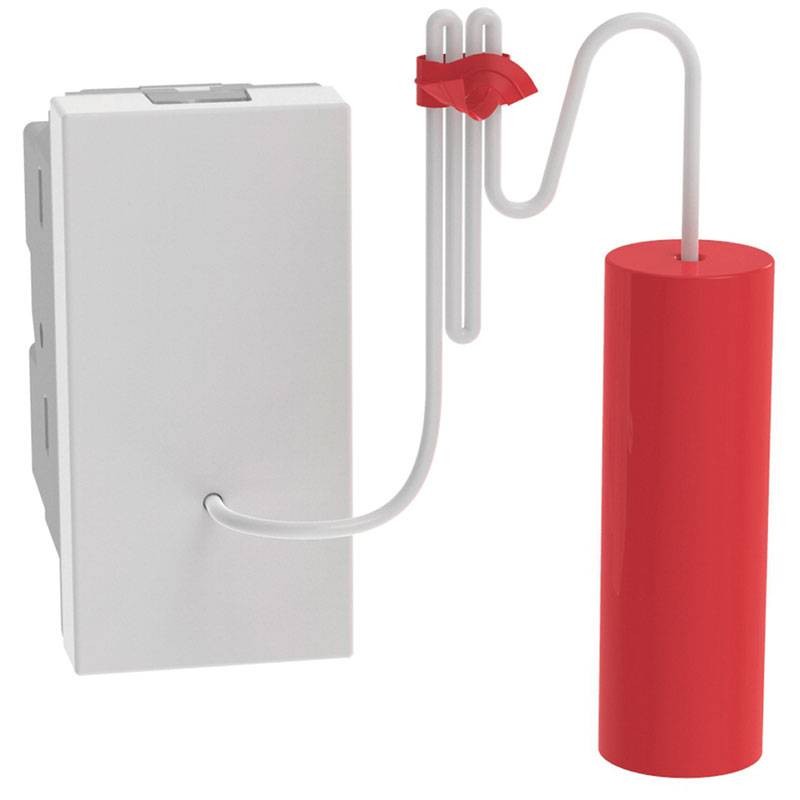

Bticino MatixGO 1P NO/NC 10A Cord-operated Push 1 Module White JW4033
BTI JW4033
8005543723418
Bticino MatixGO Cord-operated Push:
- Voltage 250Vac
- Current In 10A
- Modules 1
- Contact type 1 NO/NC
- Color white
To be applied on frames J4702-J4703-J4704-J4707.
€10.72
Items Available: 378
Frequently bought together
It is usually installed in bathrooms, the button works if the string is pulled. To be connected to a buzzer or chime.
Features:
- Push button for lighting and other loads with pull cord
- Clamp type: screw
- Clamp capacity: 2 x 4 mm2
- Strip length: 9 mm
- Compatible with flexible and rigid cables
- IP40 degree of protection
- Shock protections IK04
- Housing: PC (polycarbonate)
- Cover : ABS
- Halogen Free
- UV Resistant
- Self-extinguishing: 850°C/30s for insulating parts that hold live parts in place, 650°C/30s for other parts of insulating materials
- The covers of: JW4033AB and JW4032AB are made of antibacterial ABS.
- Storage temperature: -10° C to +70° C
- Operating temperature: -5° C to +35° C
There are no reviews
Data sheet
- Main Commands: Pushbuttons
