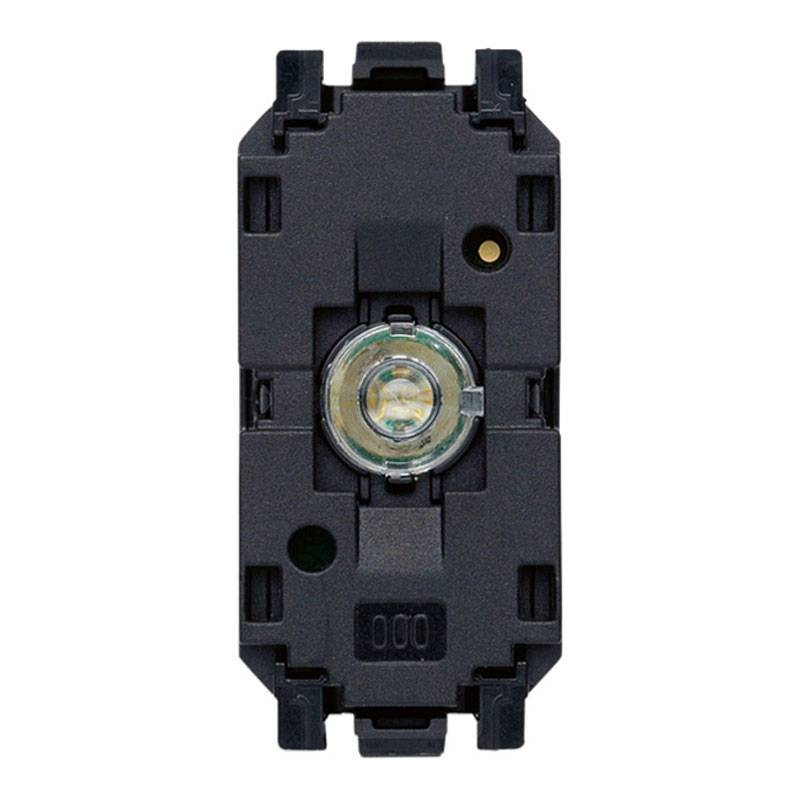

Vimar Linea View Wireless Smart Roller Shutter Control 30804
VIW 30804
8007352688971
Vimar Linea View Wireless smart electronic roller shutter control:
- For 1 roller shutter with slat orientation with changeover relay output for motor so? 0.6 2 A 100-240 V~
- Local or remote control
- Dual IoT technology on Bluetooth 5.0 standard for realization of VIEW Wireless mesh system and on Zigbee 3.0 standard
- 1 input for external button for recalling a scenario
- Favorite position recall function
- RGB LED dark detection with intensity adjustment
- Power supply 100-240 V 50/60 Hz
- 1 module
- Compatible with SmartThings hub
To be completed with interchangeable buttons and gateways: 31000A.FG - 31000A.FB - 31000A.FC - 30807.G - 30807.B - 30807.C.
To be applied only to Vimar Linea series frames codes: 30613/30614/30617.
€57.16
Items Available: 142
Frequently bought together
The device is provided with a 2-relay monostable output with interlocked actuation i.e., with mutually exclusive activation of the relays with minimum interlock time. In the absence of mains power, the relays both remain open. The front buttons of the device control only the on-board shutter actuator:
- Short pressure: if the shutter is stationary, there is slat rotation; if the shutter is moving, it stops
- Long pressure: the upper button raises the shutter while the lower button lowers it
- Double pressure of any of the two buttons: recall of the preferred position (memorization is done by lApp View Wireless)
Features:
- Rated supply voltage: 100-240 V~, 50/60 Hz
- Power dissipation: 0.55 W
- Transmitted RF power: < 100mW (20 dBm)
- Frequency range: 2400-2483.5 MHz
- Switching to zero crossing
- 2 front buttons that are used both for load control and as configuration buttons
- RGB LED signaling the movement of the shutter (settable from View Wireless App) and configuration status (flashing blue)
- In Bluetooth technology mode, up to 2 radio devices (art. 03925) can be associated with the device, allowing actuator control or scenario activation
- Operating temperature: -10 to +40 °C (for indoor)
- Degree of protection: IP20
- Configuration from App View Wireless for Bluetooth technology system and Amazon App for Zigbee technology
- Controllable by App View (for Bluetooth technology) and Amazon App Alexa (for Zigbee technology).

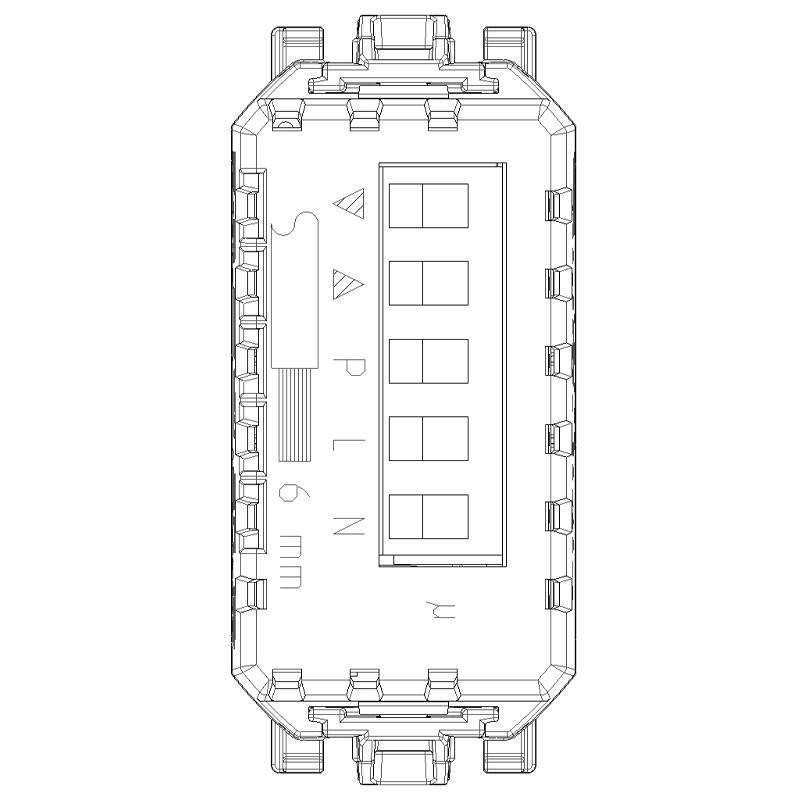

Terminals:
- 2 terminals (L and N) for line and neutral
- 1 terminal (P) for connection to remote wired control (e.g. art. 30008.x-20008-19008-16080-14008)
- Maximum distance between IoT device and push button is 50 m with minimum 1.5 mm2 cable cross section
- 2 terminals (up and down) for the shutter output.
