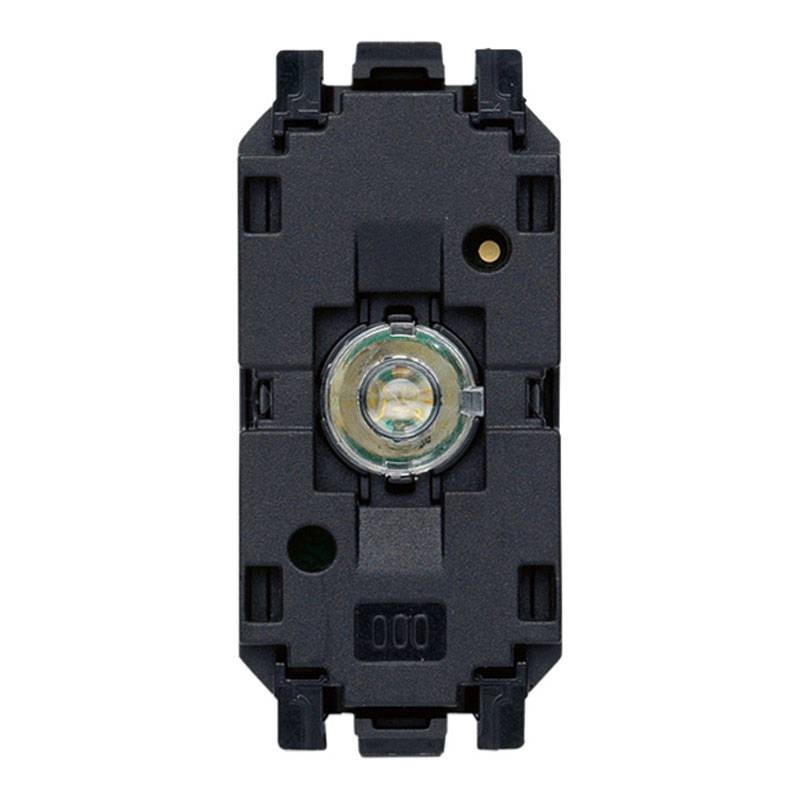

Vimar Linea IoT View Wireless Smart Electronic Controller 30801

Vimar
Vimar
VIW 30801 8007352707177

Vimar Linea View Wireless IoT smart electronic control:



  • Local push-button or remote control
  • IoT technology on Bluetooth 5.0 standard
  • RGB LED detection in the dark with intensity adjustment
  • 100-240 V 50/60 Hz power supply
  • To be completed with interchangeable buttons
  • 1 module



The device has two front buttons that can control the group with which the device has been associated or recall a scenario.



To be applied only to Vimar Linea series frames codes: 30613/30614/30617.

  • bluetooth
    • Do you have questions about this product or did you not find what you were looking for? Ask us!
    Vimar Linea IoT View Wireless Smart Electronic Controller 30801
    €39.24
    €39.24

    €39.24
    Tax included
    Calculate shipping cost
    Items Available: 73
    Further availability of the manufacturer
    €39.24

    Buy it within and receive it from Tuesday, 24 February
    Two-year warranty
    Easy return within 14 days
    Purchase with tax breaks

    Are you a professional ?

    Request access to

    Trustpilot

    Frequently bought together

    It is configured in the Bluetooth technology system via the View Wireless app, and thanks to gateway 30807.x-20597-19597-16497-14597, it interacts with all other devices in the system. It can also recall scenarios created with the View app.



    The front buttons can be configured for the following functions:

    • Light group command and miscellaneous: Pressure: ON command (UP key) or OFF command (DOWN key)
    • Light group control with dimmer actuators: Short pressure: ON command (UP key) or OFF command (DOWN key) - Long pressure: load adjustment (UP key = increase; DOWN key = decrease)
    • Roller shutter group command Long pressure: roller shutter up command (UP key) or roller shutter down command (DOWN key) - Short pressure: movement STOP command (UP or DOWN key indifferently) or slat rotation if the shutter is stopped - Double pressure of any of the two keys: recall of the preferred position (memorization is done through the View Wireless App)
    • Scenario recall command: Pressure: scenario recall associated with the upper key (UP key) or scenario recall associated with the lower key (DOWN key).




    Compatible interchangeable keys:

    • 31000.B - 31000.C - 31000.G - 31000.LB - 31000.LC - 31000.LG - 31000A.B - 31000A.C - 31000A.FB - 31000A.FC - 31000A.FG -31000A.G - 31000A.LG - 31000A.LC - 31000A.LG - 31000A.RB - 31000A.RC - 31000A.RG - 31000A.SB - 31000A.SC - 31000A.SG - 31000S.B - 31000S.C - 31000S.G.



    Features:

    • Rated supply voltage: 100-240 V~, 50/60 Hz
    • Power consumption: 5 mA
    • Transmitted RF power: < 100mW (20 dBm)
    • Frequency range: 2400-2483.5 MHz

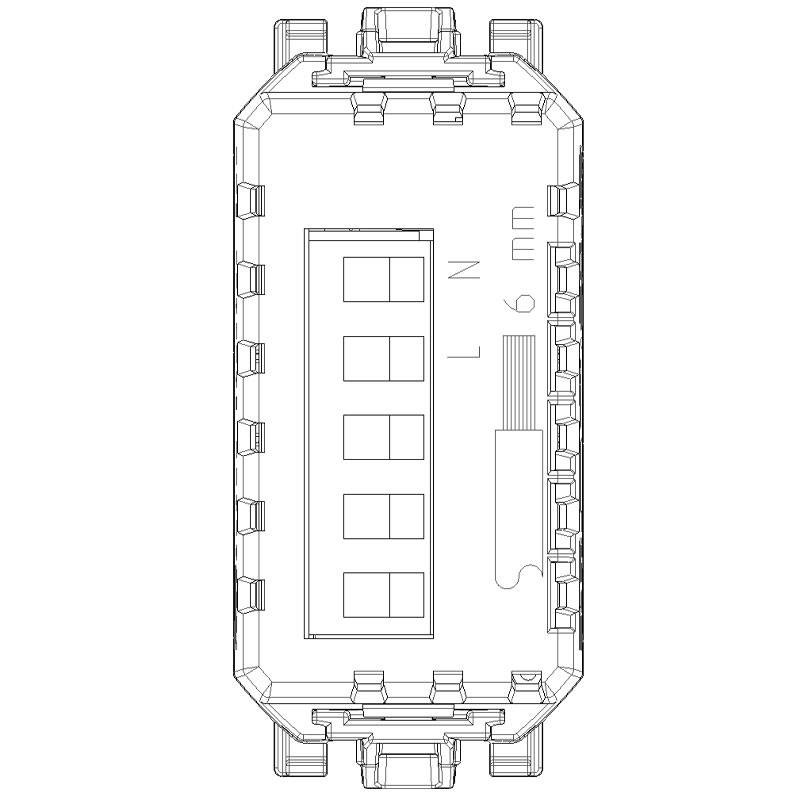

    • Terminals: 2 (L and N) for line and neutral
    • 2 front buttons that are used both for control and as configuration buttons
    • RGB LED indicating group status (settable from View Wireless App) and configuration status (flashing blue)
    • Operating temperature: -10 to +40 °C (for indoor)
    • Degree of protection: IP20
    • Configuration from App View Wireless for Bluetooth technology system

    great product by great firm - does what it meant to

    Read all reviews

    Data sheet

    Smart System:
    Commands Scenarios
    Light controls
    Roller Shutter Controls
