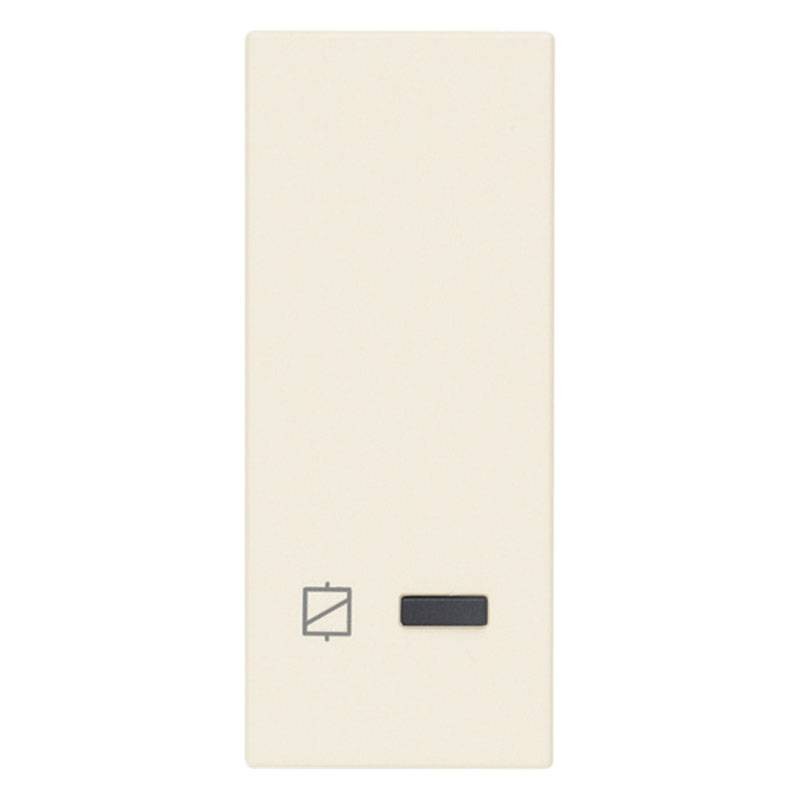

Vimar Linea IoT Smart Actuator for 16A Socket Canvas 30803.C

Vimar
Vimar
VIW 30803.C 8007352690134

Vimar Linea IoT Smart actuator for socket:



  • VIEW Wireless with NO relay output 16 A 100-240 V~
  • Local control with push button or remote control
  • Dual IoT technology on Bluetooth 5.0 standard for realizing VIEW Wireless mesh system and on Zigbee 3.0 standard
  • Instantaneous power and energy consumed measurement function and load disconnection threshold
  • RGB LED dark detection with intensity adjustment
  • Power supply 100-240 V 50/60 Hz
  • Color Hemp



To be applied only to Vimar Linea series frames codes: 30613/30614/30617.

  • bluetooth
    • Offer expires in
    Do you have questions about this product or did you not find what you were looking for? Ask us!
    Vimar Linea IoT Smart Actuator for 16A Socket Canvas 30803.C
    €44.28
    €42.95
    €42.95

    Lowest price in 30 days:
    €44.28
    Save 3%
    €42.95
    Tax included
    Calculate shipping cost
    Offer expires in
    Items Available: 14
    Further availability of the manufacturer
    €42.95

    Buy it within and receive it from Tuesday, 30 December
    Two-year warranty
    Easy return within 14 days
    Purchase with tax breaks

    Are you a professional ?

    Request access to

    Trustpilot

    Frequently bought together

    The actuator is equipped with a relay output with current meter and a front button with which to reset the load and perform configuration/reset. It realizes the function of overcurrent protection by disconnecting the load when the threshold value set through the View Wireless app is exceeded; the disconnection of the load is signaled through the red flashing of the LED on the front of the device. Load reactivation, in addition to from the front button, can also be done from the View App. The View App also allows the user to view the instantaneous power consumed.




    Features:

    • Rated supply voltage: 100-240 V~, 50/60 Hz
    • Power dissipation: 0.85 W
    • Transmitted RF power: < 100mW (20dBm)
    • Frequency range: 2400-2483.5 MHzLED RGB indicating output status (settable from View Wireless App) and configuration status (blue flashing)
    • In Bluetooth technology mode, up to 2 radio devices (art.03925) can be associated with the device, enabling actuator control or scenario activation
    • Operating temperature: -10 to +40 °C (for indoor)
    • Degree of protection: IP20
    • Configuration from App View Wireless for Bluetooth technology system and Amazon App for Zigbee technology
    • Controllable by App View

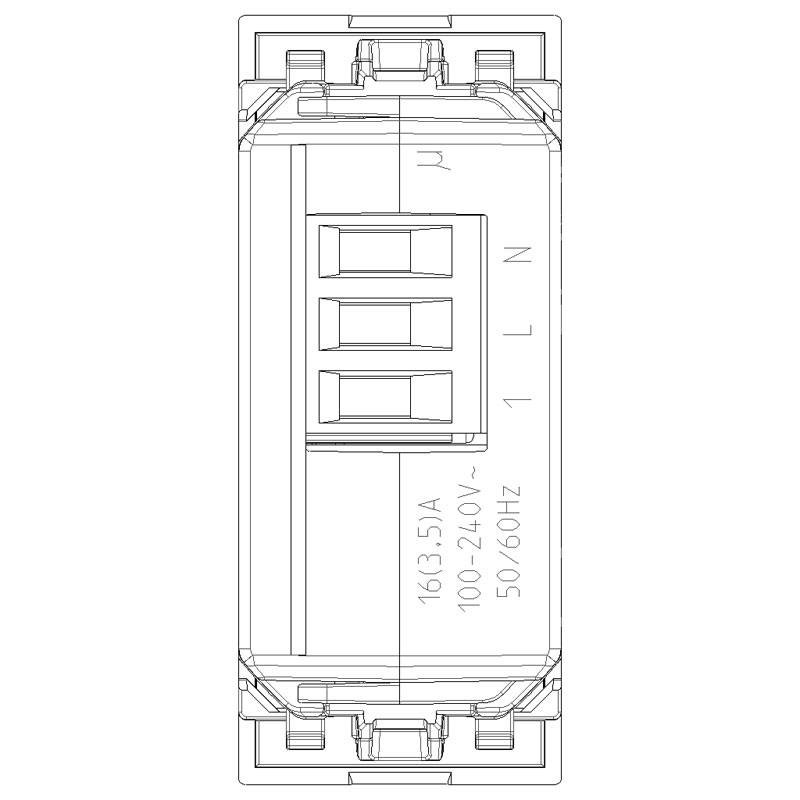

    • Terminals: - 2 terminals (L and N) for line and neutral - 1 terminal (1) for relay output in tension
