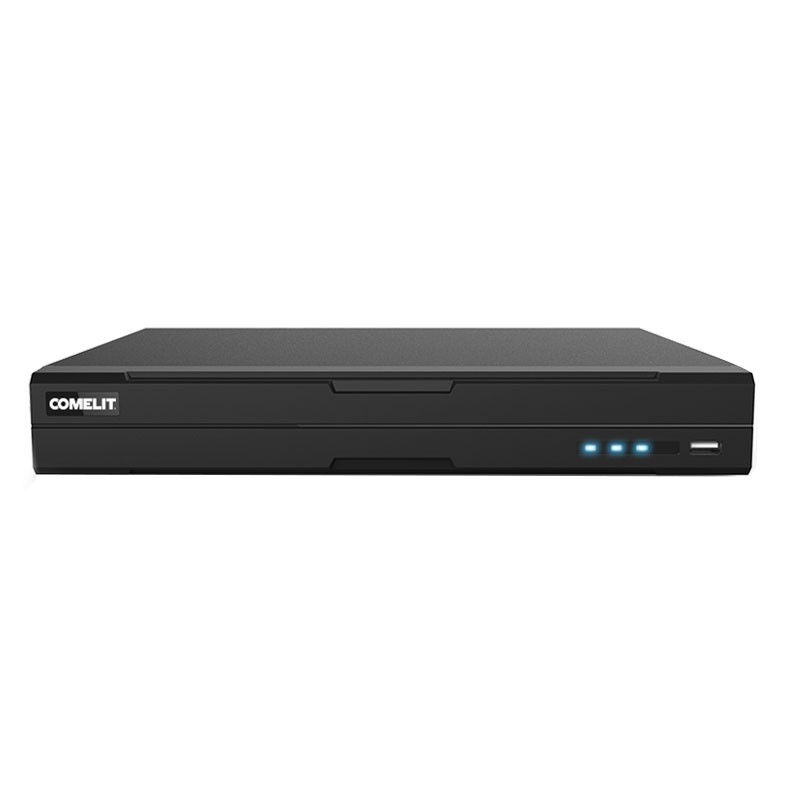

Comelit NVR Video Recorder 4K 8 channels POE 1TB NIPNVR008A12PA
COE NIPNVR008A12PA
8023903456318
Comelit ADVANCE series network video recorder (NVR):
- For 8 IP channels (8 PoE)
- NDAA compliant
- 12MP max resolution
- H.265S/H.265+/H.265/H.264 video compression, dual streaming, 160Mbps bandwidth
- Supports all DVA video analysis functions of connected cameras
- Face and license plate database function
- Compatible with browsers: IE/Google Chrome/Edge/Firefox/Safari. Alarm inputs/outputs
- Remote control via Comelit CCTV APP and Comelit CCTV Manager software.
48V power supply included.
This NVR connects to Comelit's servers protected by AWS services.
€431.73
Items Available: 19
: 2
Features:
- Video inputs 8 PoE (12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280x1024/960P/ 720P/960H/D1/CIF)
- Main video outputs 1 HDMI (4K) 1 VGA (1920x1080), (VGA programmable)
- Audio inputs/outputs 1 / 1
- Alarm inputs/outputs 8/4 Video compression H.265S / H.265+ / H.265 / H.264
- Frame rate in playback/recording 30fps@8MP 20fps@12MP
- Included hard disk capacity 1TB (10TB max)
- Recording methods Automatic, manual, scheduled, event
- Maximum number of channels played back simultaneously 1@12MP, 4@Full HD
- Supported protocols DDNS, DHCP, HTTP, HTTPS, SMTP, TCP/IP, ONVIF (Profile-T, Profile-S, Profile-G)
- DHCP IP assignment, manual Max bandwidth (Mbps) 160
- Remote control by browser Internet Explorer, Firefox, Chrome, Safari
- Remote control from Comelit CCTV Manager software
- Remote control from mobile APP Comelit CCTV
- Simultaneously connected users 64 Main functions Video analysis (only with dedicated cameras)
- Parking management function
- Alarm system function
- Motion detection function (zones) Yes
- Type of connections/ports 1 x Ethernet 10/100/1000 Mbit/s, 2xUSB 2.0, 1xUSB 3.0, 8 x Ethernet PoE 10/100 Mbit/s
- Fanless Yes
- Machine power consumption (no HDD) (W) 20
- Maximum power consumption per POE port (W) 30
- POE total power (W) 80
- Maximum distance in long range mode (m) 100
- Supply voltage (VDC) 48
- Dimensions: Height (mm) 45 Width (mm) 300 Depth (mm) 249
- Product weight (g) 3150
- Type coating materials Metallic
- Product color Black
- Operating temperature (°C) -10 to 50
- Operating humidity (RH max) (%) 25 ÷ 90
- Included accessories Power supply unit, Mouse
Data sheet
- Type: Video recorders
- System: IP
- Resolution: 12MP
- Channels: 8
