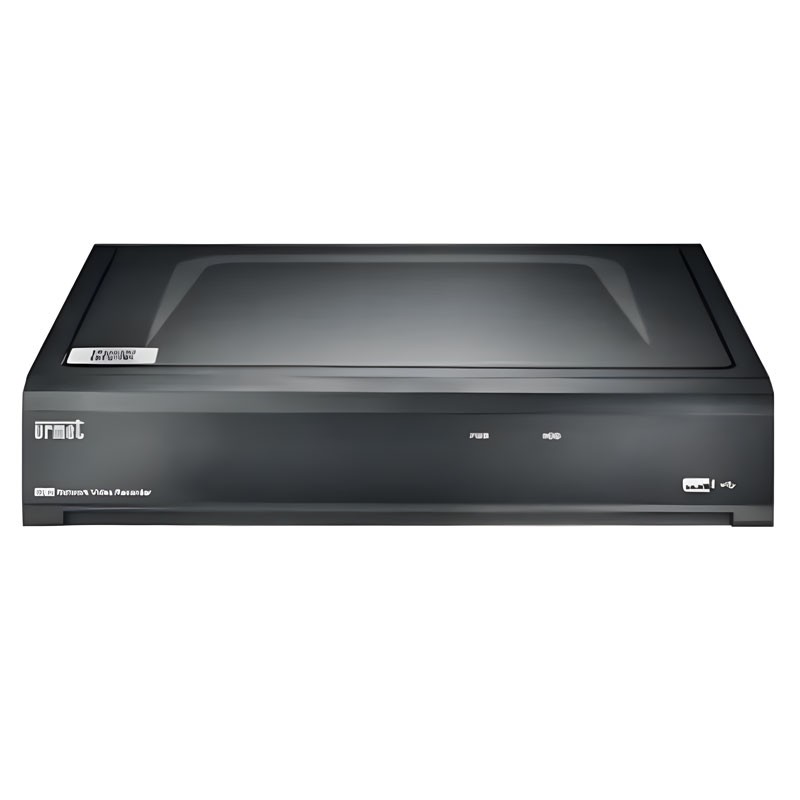

The HVR AHD 5M lite range features the most advanced functionality, compatibility with Analog, CVI, TVI and AHD 720P, 1080P, 5M IP, IP Wi-Fi cameras.

The HVRs can be remotely managed by both Windows and MAC systems, and are compatible with the UVS software and the iUVS pro App, which allows convenient management from all smartphones, iPads and tablets, both Android and iOS. Among the main features there is also the UTC function that allows the visualization and the management of the OSD menu of the cameras directly from the HVR.

Features:

• Compression formats: Video: H.265 / H.264 - Audio: G.711a
• Video inputs: 4-CH input with BNC video / 2-CH input with IP video (up to 6-CH with IP video input) (up to 6-CH with mixed video input: Analog + IP)
• Audio Inputs/Outputs: 4-CH RCA Input / 1-CH RCA Output
• Recording Resolution: 5M Lite(1280x1944)/ 4M Lite(1280x1440) / 1080P(1920x1080) / 720P(1280x720) / WD1(960x576)
• Recording Frame Rate: Main Stream Analog: 5MP-Lite:12fps(per single ch) / 4MP-Lite:16fps(per single ch) / 1080P:15fps(per single ch) / 720P:PAL:25fps(per single ch) / NTSC:30fps(per single ch) IP:PAL:25fps(per single ch) / NTSC:30fps(per single ch) Sub-stream Analog Max PAL:704*576:10fps(per single ch) NTSC:704*480:10fps(per single ch)
• IP Recording Bandwidth: 8Mbps ~24Mbps (default 8Mbps, for each analog channel excluded, the bandwidth increases about 4Mbps)
• Maximum output bandwidth: 48Mbps
• Hard Disk Interface: Max. 1 Sata HDD (Max. 8T)
• Included HD: 1000GB HDD (default)
• Storage Spaces: External USB device /e-SATA / Network
• Web software / Multilingual client: Internet Explorer 10/11 / UVS pro
• Intelligent Video Analysis (for coaxial inputs): PID / LCD / PD / SOUND DETECTION / VIDEO TAMPERING
• Intelligent Video Analysis (based on IP camera model): Perimeter Intrusion Detection (PID), Line Crossing Detection (LCD), Stationary Object Detection (SOD), Pedestrian Detection (PD), Face Detection (FC), Cross Counting (CC), Sound Detection, Video Tampering
• Alarm I/O: 4-CH Alarm Input, 1-CH Alarm Output
• PDA Mobile Software: Urmet iUVS PRO (iOS, Android)
• USB Ports : N°2 - 2.0
• Ethernet : 1 RJ45 10/100 Base-T
• Network Protocols : TCP/IP, DHCP, UDP, Urmet DDNS / UrmetDDNS2 with ID, P2P, PPPOE, Cloud Storage , SMTP , HTTPS , PPPPoE , FTP , RTSP , UPNP , SNMP
• BNC Output: 1 Out (704*576) Only for SPOT functionality for analog channels
• VGA Output: YES
• HDMI Output: YES
• Power Consumption: 8.1W ( 3.6W without HD )
• Power supply: 12V / 2A
• Operating Temperature: 0°C~+40°C / below 90%RH
• Cooling Fans: NO
• Dimensions (WXHXP): 300X53X227 mm
• Weight: 3 kg.
