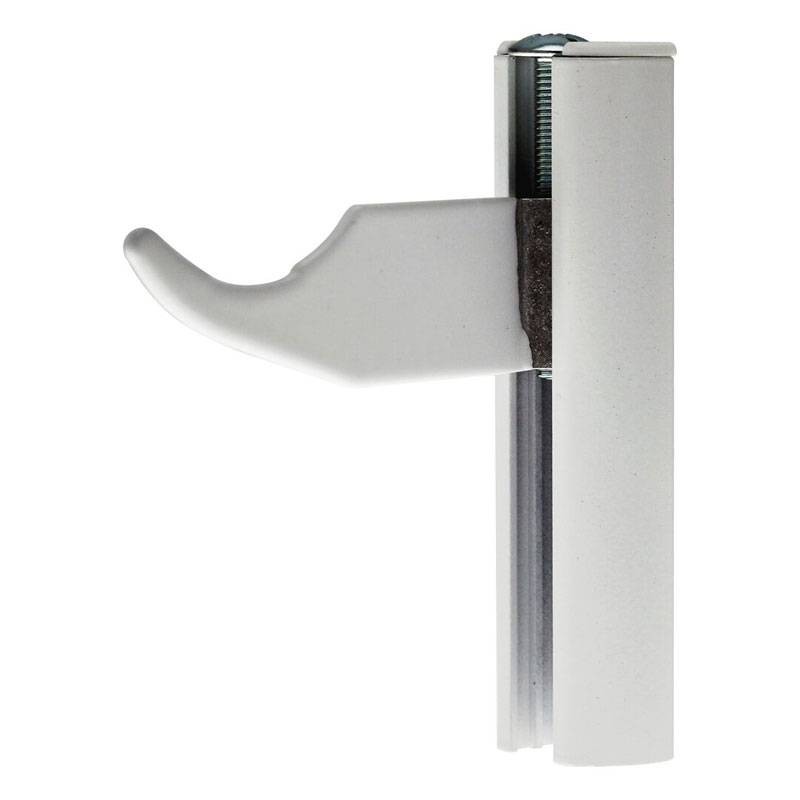

Fischer radiator shelf 8mm diameter steel 00523972
FIS 00523972
8001132033814
Adjustable bracket for radiators on Fischer plasterboard, 8 mm diameter, consisting of:
- 4 HM fasteners 4 x 45
- 2 plates
- 2 adjusting screws
- 2 hooks
- 2 white plugs
€8.99
Items Available: 66
: 16
Advantages:
- TC and RC brackets install on the finished gypsum board wall, no large holes or counterplates
- HM metal anchors for double slab already included in package
- Shelves can also be used on single slab by replacing HMs with single slab size
- Minimal aesthetic impact
- Easy vertical adjustment allows the radiator to be placed perfectly level
- Special plasticized paint helps to dampen noise
- The shelf can also be installed with the hook reversed to lock radiators in special situations (schools, public places, etc.)
Assembly:
- Place the radiator at the correct height on the wall. Using the spirit level, mark the position of the 2 radiator brackets. Then mark the position of the 2 dowels of each support base
- Drill holes in the plasterboard
- In case of double slab use HM metal fasteners in the package otherwise replace them with HM of suitable length (see load table)
- Screw the convex-headed adjusting screw onto the hook bracket up to 15 mm from the edge. Insert the bracket into the support base. Two depth adjustments are possible
- Attach the white plastic covers to the top of the support bases.
- Acting on the thumb screw, level the radiator
There are no reviews
Data sheet
- Type: Levers
