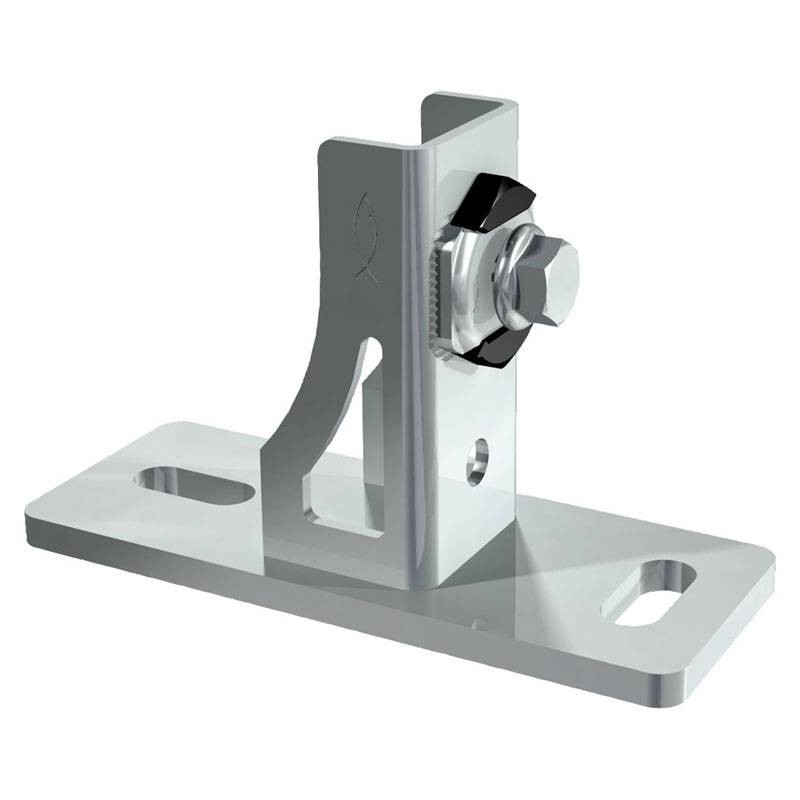

Fischer SF 31 pre-mounted Saddle flange steel 00538665

Fischer
Fischer
FIS 00538665 4048962265262

Fischer SF 31 pre-mounted Saddle flange with the following features:



  • Tightening torque: 10 Nm
  • Recommended maximum shear load: 1.0 kN
  • Saddle material: Steel
  • Hammer nut material: steel
  • Top plate material: Steel
  • Hexagon head bolt material: Steel
  • Plastic cage material: Polypropylene
  • Galvanizing: Cold galvanizing



Elements for permanent construction of connections between tracks and building supporting structures for FLS pre-assembled system.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Fischer SF 31 pre-mounted Saddle flange steel 00538665
€10.50
€10.50

€10.50
Tax included
Calculate shipping cost
Items Available: 62
Further availability of the manufacturer
€10.50

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Advantages:

  • Pre-assembled nut on the bracket reduces the number of items and saves installation time
  • The spring geometry of the FSM Clix M nut fits snugly inside the profile allowing for easy and safe adjustment during installation
  • The wraparound shape of the SF saddle bracket allows for quick installation by inserting the FLS profile inside it
  • The robustness of the SF 31 saddle bracket ensures a secure grip on profiles and high loadability values
