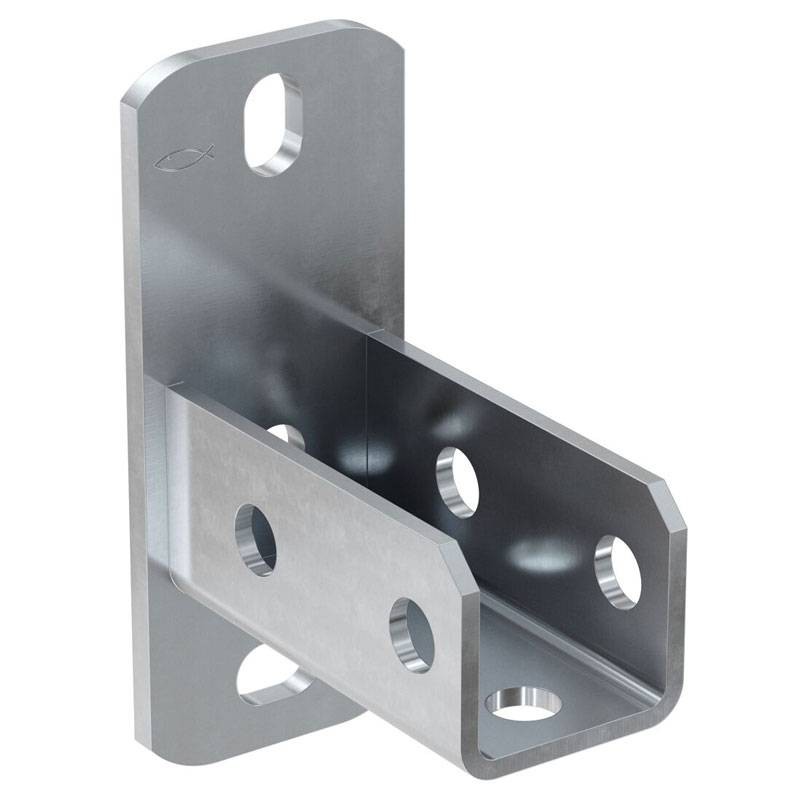

Fischer SF pipe saddle bracket L 41 00504355
FIS 00504355
4048962062540
The Fischer SF L 41 Pipe Saddle Bracket, is a strong and reliable solution for stable connections between rails and structures. Made of high-quality galvanized steel, it offers strength and durability, making it ideal for applications requiring safety and precision. Certified for fire resistance up to R120, it ensures reliability even under extreme conditions:
-
Fire resistance: Rated up to R120; MLAR R30 certification for piping systems.
-
Compatibility: Designed for profiles 21, 41, 21D, 62
-
Base plate: DC01 steel according to DIN EN 10139
-
C-profile: Steel S235 JR according to DIN EN 10025
-
Galvanizing: Electrolytic, minimum thickness 8 µm
-
Optimized geometry: 90° rotated slots simplify fastening
-
Easy installation: Longitudinal assembly with perfect fit to the SF bracket.
€9.17
Items Available: 110
: 22
Fischer SF L 41 pipe saddle bracket 00504355
Advantages
- Superior stability: Sturdy base for profile engagement.
- Ease of use: Design that ensures quick installations.
- Safety certifications: R120 fire resistance and MLAR R30.
- Durability: Made from high-quality galvanized steel.
- Versatility: Ideal for different types of profiles and structures
Ideal applications.

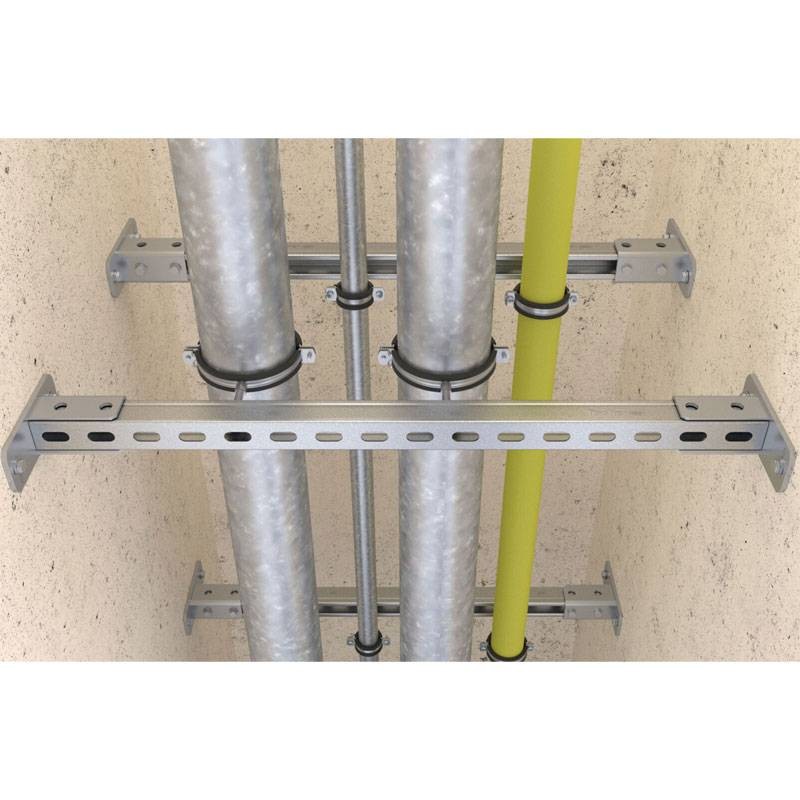

- For strong connections between profile and building structure
- Quick and easy connection by inserting the FCN clix P nut into the profile rail
- The geometry of the plate slots rotated 90° facilitates fastening
There are no reviews
Data sheet
- Type: Levers
