Urmet video distributor 4 outputs for coaxial cable systems 1794/4A
UTD 1794/4A
8021156027545

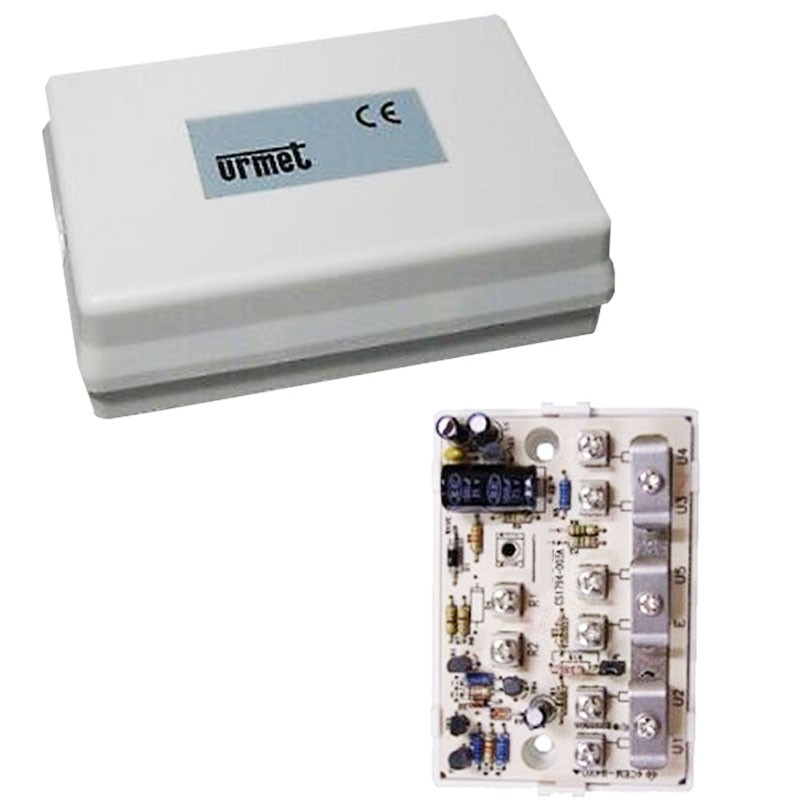

Urmet 4-output video distributor for coaxial cable systems, with the following features:
- Power supply: 15-18 VDC
- Absorption without loads: 25 mA
- Absorption with 4 loads: 40 mA
- Input impedance: 75W
- Impedance - output: 75W
- ABS enclosure
- Dimensions (W x H x D): 95 x 64 x 28 mm
€71.89
Items Available: 5
The device makes it possible to distribute the video signal in a stellar manner, avoiding the classic in-out connection on coaxial cable monitors.
The classic uses of this product are for distribution to the floor of the coaxial cable where there are multiple video intercoms, and for distribution to multiple risers of the same coaxial cable.
The distributor is equipped with 4 independent outputs plus one feed-through.
Using the latter requires cutting the overhead resistor or removing the jumper on the circuit board
Data sheet
- Type: Distributors
