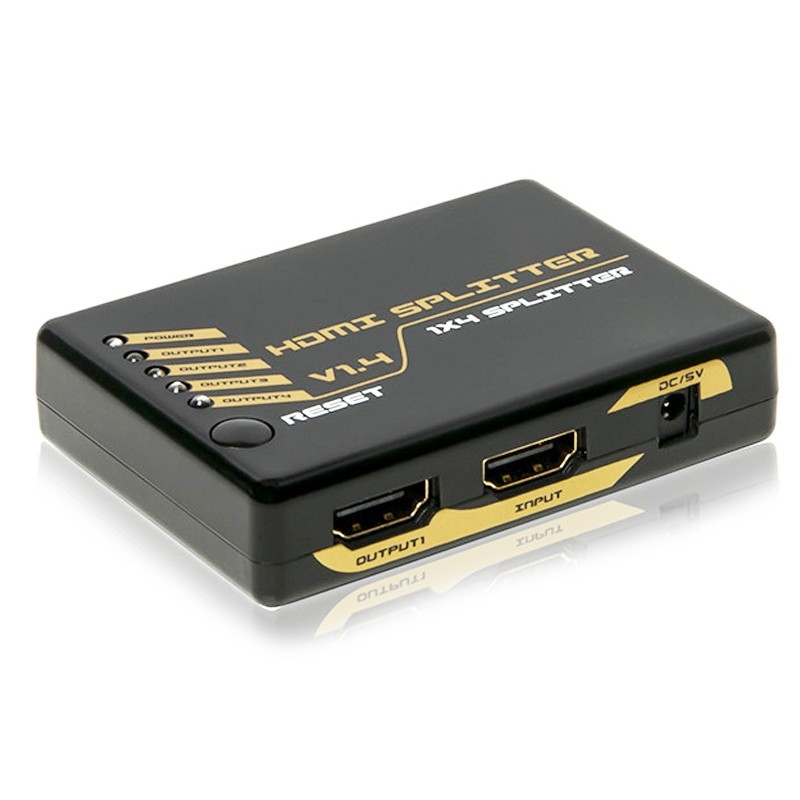

FTE HDMI 1-input 4-output 3D-4K DISHDMI4W FTE distributor
FTE DISHDMI4W
8436545304198
This FTE DISHDMI4W allows the signal from one source to be displayed on four monitors/TVs. The distributor sends the signal it receives at the input on both outputs equalizing and amplifying it.
€21.21
Items Available: 6
: 3
STRENGTHS
- Distributor 1 x 4
- Automatic operation
- Simple installation
- Supports 3D
- Compact size
- Compatible with 4K@30Hz video signals
APPLICATIONS
It is used to distribute a single source in your home / business environment to multiple monitors that have an HDMI input.
TECHNICAL DATA
- Description HDMI Distributor 1 in - 4 out
- Entrances 1
- HDMI connector type A female
- Exits 4
- HDMI connector type A female
- Bandwidth / Speed - MHz/Gbps 340 / 3.4
- HDMI 1.4 version
- HDCP version 1.4
- 3D compatible
- HDR function support NO
- Support HDMI CEC function
- Deep Color Support Yes, up to 36 bits total / 12 bits per channel
- Frequency range - Hz 30/50/60
- Maximum supported video resolution 4K@30Hz
- Supported video resolutions 480i/p@50/60Hz, 576i/p@50/60Hz, 720p@50/60Hz,1080i/p@50/60Hz, 2160p@30Hz
- Supported audio encodings LPCM 7.1,DTS,Dolby Digital,DTS-HD,Dolby True HD
- Power supply - VDC/A 5 / 2
- Consumption - W 5
- Temperature / Humidity of use - C° 0 ÷ 70 / 10 ÷ 85% (without condensation)
- Storage temperature / humidity - C° -10 ÷ 80 / 5 ÷ 90% (without condensation)
- Type of ABS material
- Dimensions (W x H x D) - mm / Weight - g 81 x 18 x 58 / 56.4
CONTAINED IN THE PACKAGE:
- HDMI 1x4 Distributor
- Power supply 5 VDC / 2 A
- User Manual
There are no reviews
Data sheet
- Type: Distributors
- Version: 1IN/4OUT
