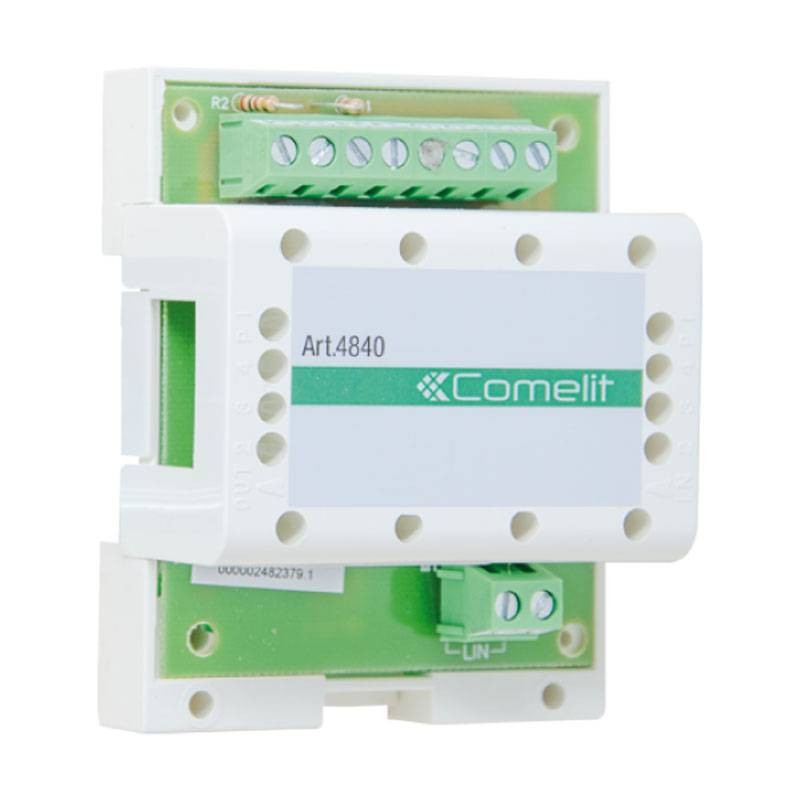

Comelit 4-outlet line distributor for 2-wire 4840 systems
COE 4840
8023903316919
Line distributor for Comelit video systems, allows signal distribution on 4 risers.
Does not require power supply.
Simplebus 2 system.
Dimensions: 66x85x35 mm (4 DIN modules).
€97.19
Items Available: 2
Features:
- Input connector Terminal Block
- Certifications CE RoHS II - 2011/65/EU (EN IEC 63000:2018), EMC 2014/30/EU (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
- Height (mm) 83
- Width (mm) 66
- Depth (mm) 37
- Product weight (g) 100
- Operating temperature (°C) -10 to 40
- Operating humidity (RH max) (%) 25 to 95
- DIN rail mounting Yes
- DIN modules (no.) 4
- Supply voltage 22÷35VDC
Compatibility:
- Audio/video system Building Kit
- System audio/video kit
There are no reviews
Data sheet
- Type: Distributors
