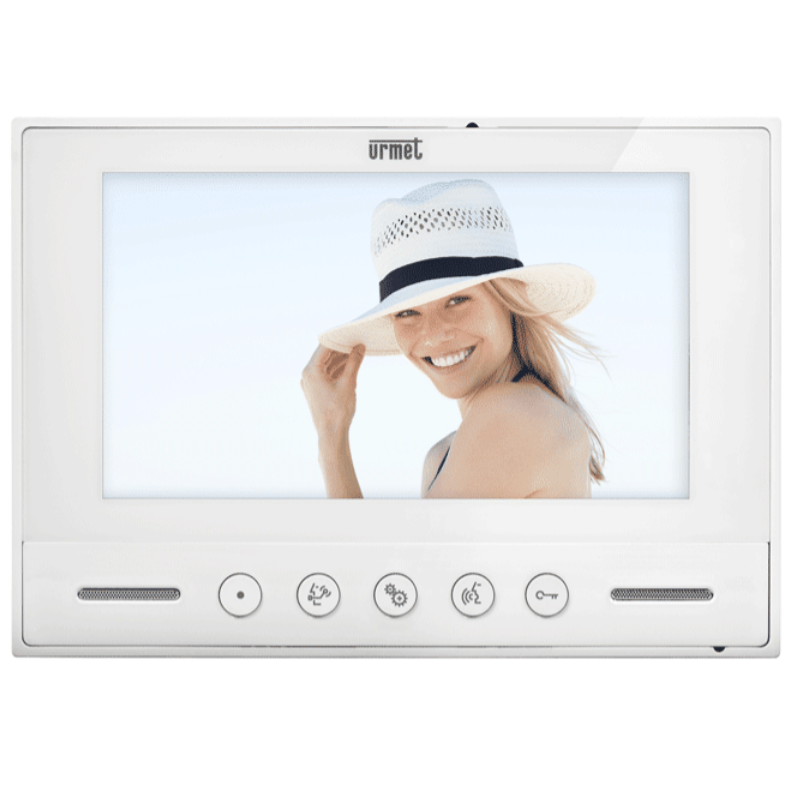

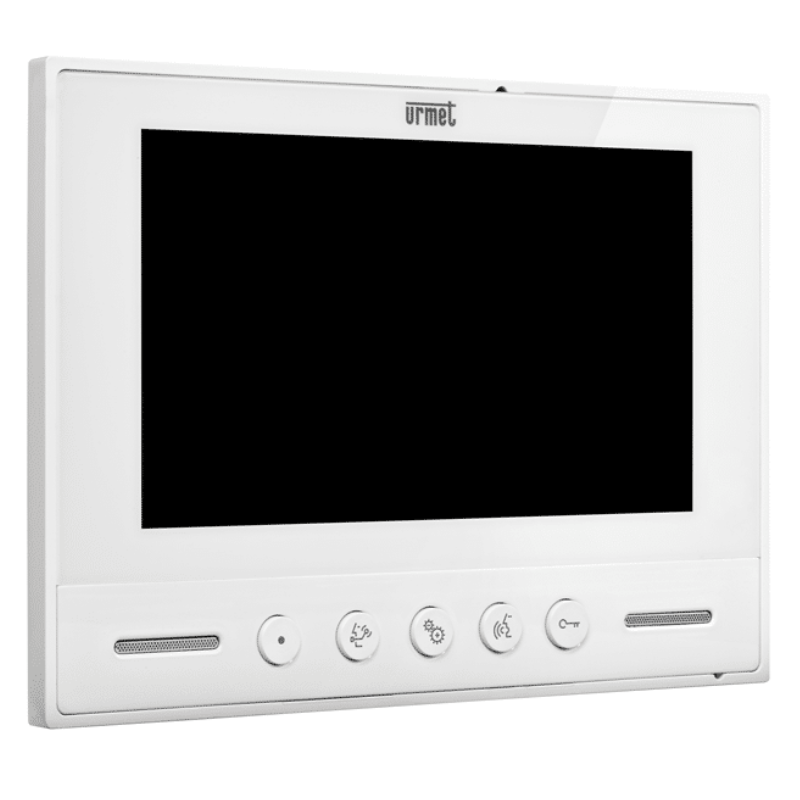

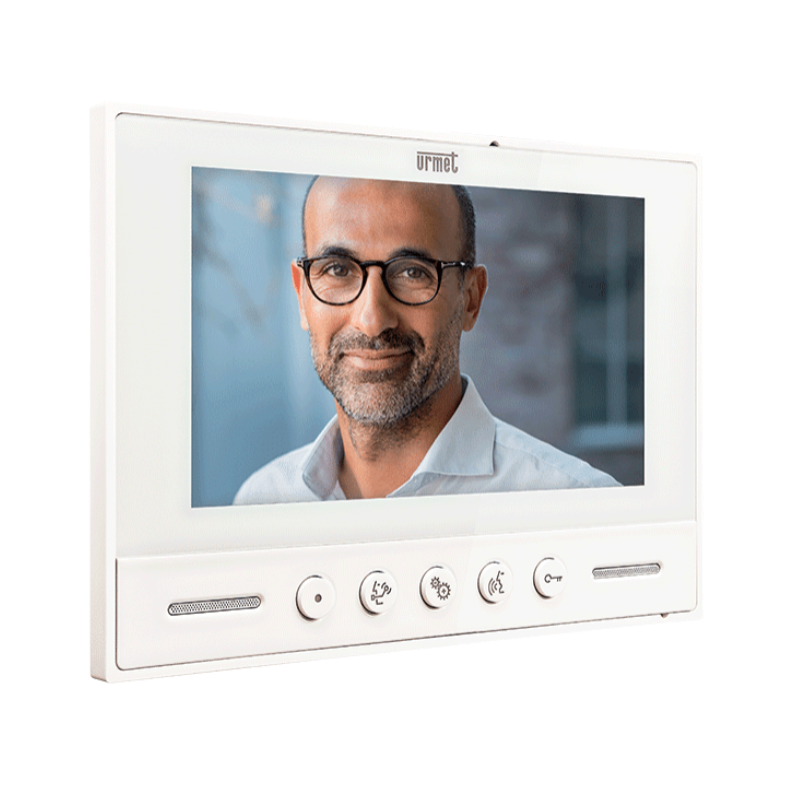

Urmet Video door station Nexo 2 handsfree 7 inch 1708/2
UTD 1708/2
8021156063062
Video door station Urmet Nexo 2 hands-free 7 inches:
- Installation on analog video door phone systems with coaxial cable with electronic call
- Dedicated door opener key
- 2 auxiliary keys for auto-on or for driving auxiliary relays for the activation of electrical loads (if properly connected)
- Contrast and color adjustment from OSD (on screen display) menu using buttons on right side of monitor
- Adjustment of ringer and call volume by potentiometers located at the bottom of the monitor.
€299.23
Items Available: 3
: 1
The device is equipped with plastic bracket for wall installation on generic flush mounting box (ø60mm or mod.503).
Features:
- Wall-mounted installation
- Power supply voltage: 18 Vdc +/- 2V
- Maximum absorption: 400 mA
- Power consumption in operation: <8 W
- Liquid crystal display: 7 TFT
- Screen size: 155 x 87 mm
- Video resolution: 320H x 280V lines
- Max contact rating X1,X2 and Y1,Y2:50 mA @ 12 Vdc
- Operating temperature: 0÷50 °C
- Max. humidity: <80%.
- Dimensions (w x h x d): 200 x 136 x 24.5 mm
There are no reviews
Data sheet
- Type: Video Intercoms
