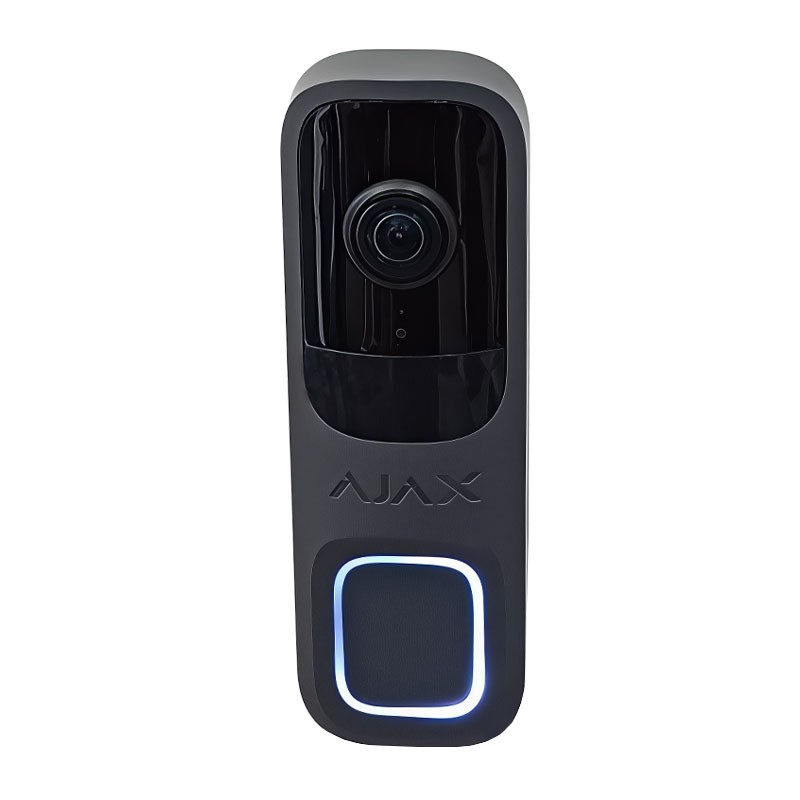

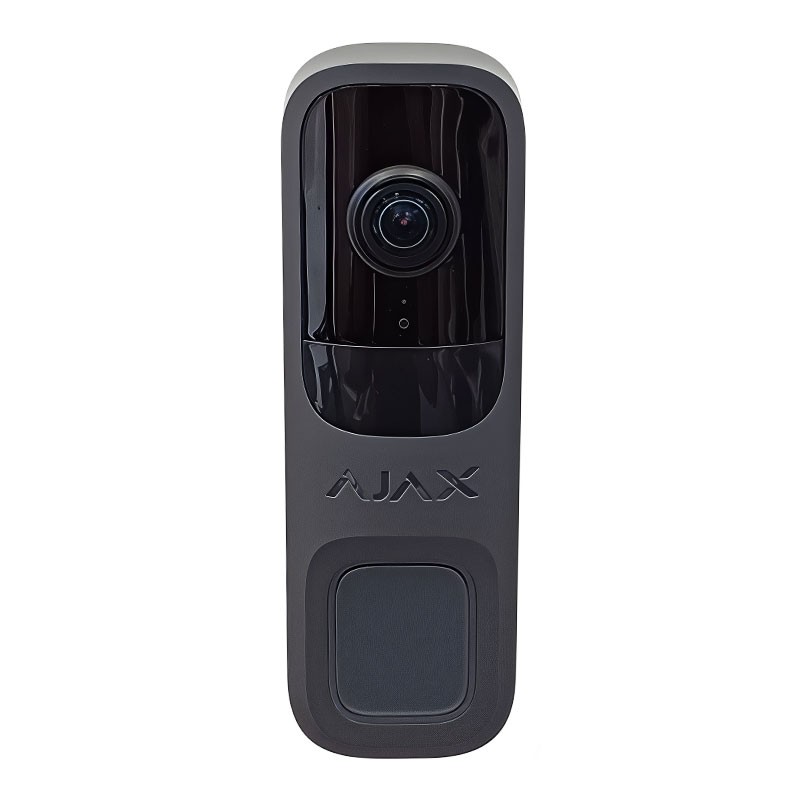

Ajax Doorbell Video Intercom with IA PIR Black 66391
08T 66391
4823114066146
Ajax Doorbell Video Intercom with 4MP camera, AI for people, animal and vehicle recognition, 4m PIR sensor, 155° HDR vision, two-way WiFi audio security and control at your fingertips.
-
4MP camera (2688×1520 px), 155° horizontal × 90° vertical lens
-
Colour Black RAL 9005
-
Integrated AI for intelligent detection of people, animals and vehicles
-
PIR sensor with range up to 4m, 120°×100° detection angle, 3-level sensitivity
-
Intelligent IR illuminator up to 6m, with automatic adjustment to control overexposure
-
Two-way audio clear and loud voice between users and visitors, G.722 with noise cancellation
-
2.4?GHz WiFi connectivity, JetSparrow peer-to-peer protocol for fast and secure streaming
-
ONVIF ProfileS support (basic video streaming, VMS compatibility) and partial ProfileT.
€340.38
Items Available: 11
Ajax Doorbell Video Intercom: Professional Security at the Front Door
DoorBell combines the convenience of an intelligent video door phone with high-end security and video surveillance. When someone presses the video intercom, users can talk to visitors instantly, without delay. Equipped with a PIR sensor and built-in AI, DoorBell accurately detects movement and recognizes humans, animals and vehicles. Users can always get a clear, high-quality view of activity at the front door thanks to the video door phone's wide-range HDR camera.
Immediate access to the video stream in Ajax apps
Users will never keep their guests waiting at the door. Our proprietary JetSparrow technology provides fast video streaming, so users can see visitors in an Ajax app as soon as they press the door phone button. Thanks to DoorBell's excellent image and sound quality, a conversation with guests is almost indistinguishable from a regular phone call.
- Crisp video in 2K thanks to HDR
- Clear voice transmission with noise suppression
- Echo cancellation for improved audibility
Synergy of AI and security for accurate object recognition
The AI-enabled camera detects humans, vehicles, and animals, while the built-in PIR sensor improves detection accuracy and reduces false alarms. By setting detection zones, users receive notifications only when they really matter. For visitors, the device offers a touchless experience. A courier with his hands full does not need to press the button on the video intercom: users are instantly notified of their arrival and can enter the conversation immediately.
Ajax Doorbell always working
DoorBell never becomes a brick, even if Wi-Fi connection is lost. When added to an Ajax hub, DoorBell has a backup communication channel. The device functions as an integral part of an Ajax security system and keeps users and the CRA informed of incidents. DoorBell uses Jeweller secure communication technology to send event and alarm notifications, while the Wings protocol ensures reliable photo delivery.
- Up to 1,700 m of wireless communication2 with an Ajax hub
- Frequency hopping to detect interference or inhibition
- Anti-sabotage tamper to detect device disassembly
Fail-safe protection
If the power in the system fails, DoorBell continues to monitor the situation at the entrance. The built-in backup battery allows the device to remain fully operational for up to two hours after a power failure. When the temperature of the device falls below the optimal range, the battery automatically heats up. This function reduces battery stress, extending battery life and keeping device performance stable.
- Up to 2 hours of autonomous operation
- Automatic battery heating at low temperatures
Ajax Doorbell: Future-proof hardware
- Camera: 4 MP CMOS sensor, 2688 × 1520 px, HDR
- Motion detection: PIR sensor with silicon optical filter
- Power input: 12-24 V DC / 16-24 V AC
- Housing: protection class IP54
- Sabotaggі protection: anti-sabotage tamper
- Viewing angles: 155° horizontally and 90° vertically
- Loudspeaker: up to 85 dB
Built-in battery: automatic warm-up when cold
- LED indicator: displays the status of the device
Extended Wi-Fi range to avoid delays and blockages
Say goodbye to video intercoms that leave the Wi-Fi network at the worst time. Ajax DoorBell is designed to be less susceptible to radio interference and maintain a stable connection up to 500 meters away in line-of-sight, five times farther than competing solutions. The extended range provides greater installation flexibility, as installers no longer have to place the Wi-Fi router directly next to the door. For users, this ensures continuous communication with visitors and uninterrupted streaming when needed.
Ajax DoorBell Specifications
Compatibility
| Feature | Detail |
|---|---|
| Compatibility only with the following Ajax components. | Hub 2 (2G) Jeweller, Hub 2 (4G) Jeweller, Hub 2 Plus Jeweller, Hub BP Jeweller, Superior Hub Hybrid (2G), Superior Hub Hybrid (4G), Superior Hub Hybrid (4G) (without casing), ReX 2 Jeweller |
Video Streaming
| Feature | Detail |
|---|---|
| Camera | 4 MP CMOS Sensor |
| Resolution | up to 2688 × 1520 px |
| Camera viewing angles | horizontal: 155° vertical: 90° |
| Video protocol | JetSparrow Fast, encrypted peer-to-peer video protocol developed by Ajax Systems. |
| Storage options | NVR Ajax Cloud Storage |
| Video codecs | H.264 |
| Dynamic Range | HDR Improves detail accuracy in bright and dark scenes. |
Communication Channel
| Feature | Detail |
|---|---|
| Wi-Fi | 802.11 b/g/n module 2.4 GHz, up to 2 Mbit/s |
| Jeweller and Wings communication technologies | Proprietary wireless communication technologies to transmit commands, alarms, events, and photo-verifications. Serve as a backup communication channel when the device is added to the hub. |
Key Features
| Feature | Detail |
|---|---|
| Two-way communication | Clear and loud voice communication between users and visitors near the device. |
| Motion detection | Built-in PIR sensor and frame analysis software. |
| Object detection | AI for human, pet and vehicle recognition. |
| Intelligent IR illumination. | Up to 6 m with automatic real-time adjustment to avoid overexposure. |
| Visual verification of Ajax alarms. | Ajax detectors activate selected cameras for recording in alarm scenarios. |
| Support for ONVIF authorization. | S profile (full), T profile (partial). Integration into third-party VMS. |
| Microphone | For two-way communication and audio recording. |
| Audio codec | G722 |
| Audio processing. | Noise suppression and echo cancellation always on. |
AI detection
| Feature | Detail |
|---|---|
| Sensor type | 1 × PIR sensor |
| Motion detection distance | Up to 4 m (depends on the sensitivity level set) |
| Motion detection angle | Horizontal: 120° Vertical: 100° |
| Sensitivity | 3 levels, configurable by a PRO or administrator |

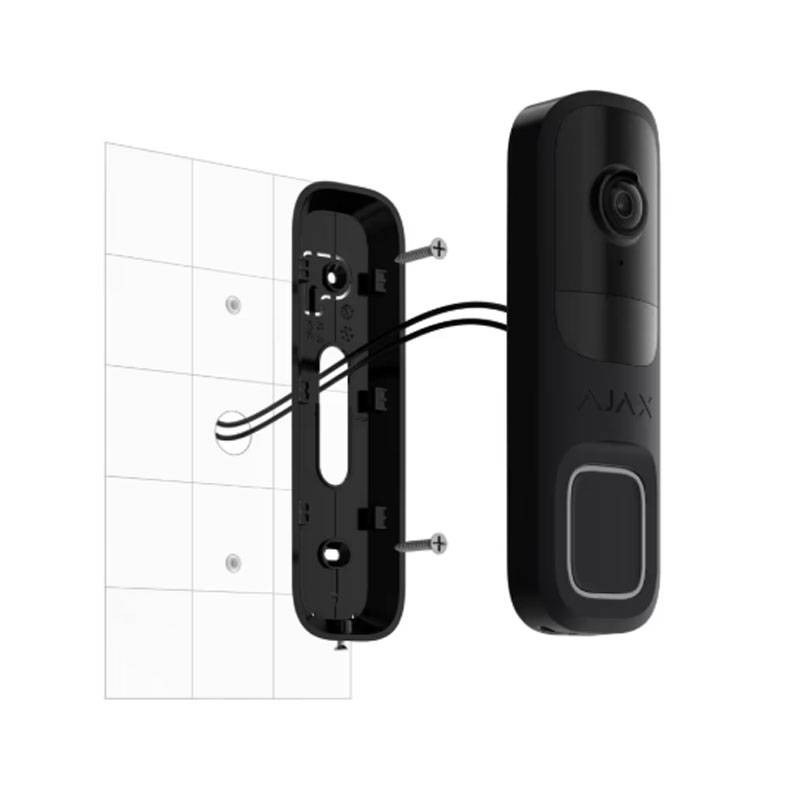

Installation recommendations
| Feature | Detail |
|---|---|
| Recommended installation height | 1,2-1,5 m |
| Supported environments | Indoor and outdoor |
| Sun exposure. | Direct sunlight not recommended to avoid overheating and damage to components |
Anti-sabotage protection
| Feature | Detail |
|---|---|
| Tamper alarm | Notifications upon removal from mounting panel |
| Mounting screw | For mounting on SmartBracket |
| mTLS | Encrypted connection for data protection |
| Authentication | Via Ajax Cloud, without local access |
| Secure Boot | Protection against firmware forgery |
| OTA signature verification | Secure automatic firmware update |
| Privacy | Access rights management via mobile app and PRO Desktop |
| Communication Loss Detection | Wi-Fi: configurable from 30 s Jeweller/Wings: 36 s Depends on Ajax Cloud connection and settings |
Power
| Feature | Detail |
|---|---|
| Device power consumption | 10 W |
| Main DC voltage range | 12-24 V⎓ |
| Main AC voltage range | 16-24 V~, 50/60 Hz |
| Battery | Li-ion 600 mAh built-in, rechargeable (heating in cold climates and backup power for short periods) |
Case
| Feature | Detail |
|---|---|
| Dimensions | 145 × 47 × 34 mm |
| Weight | 163 g |
| Operating temperature range | -25 °C to +60 °C |
| Maximum allowable humidity | up to 90% |
| Protection class | IP54 |
Components in the package
| Element | Included |
|---|---|
| Device | DoorBell |
| Mounting Brackets | SmartBracket + 2 brackets |
| BellKit | Included (for connection to wired doorbell) |
| Installation kit | Included |
| Quick Start Guide | Included |
There are no reviews
Data sheet
- Colour: Black
- Type: Bells
- System: Wireless
- Installation: External
