2N Clip Video Intercom IP PoE Ethernet system monitor 4" 9138511
2NI 9138511
8595159522456

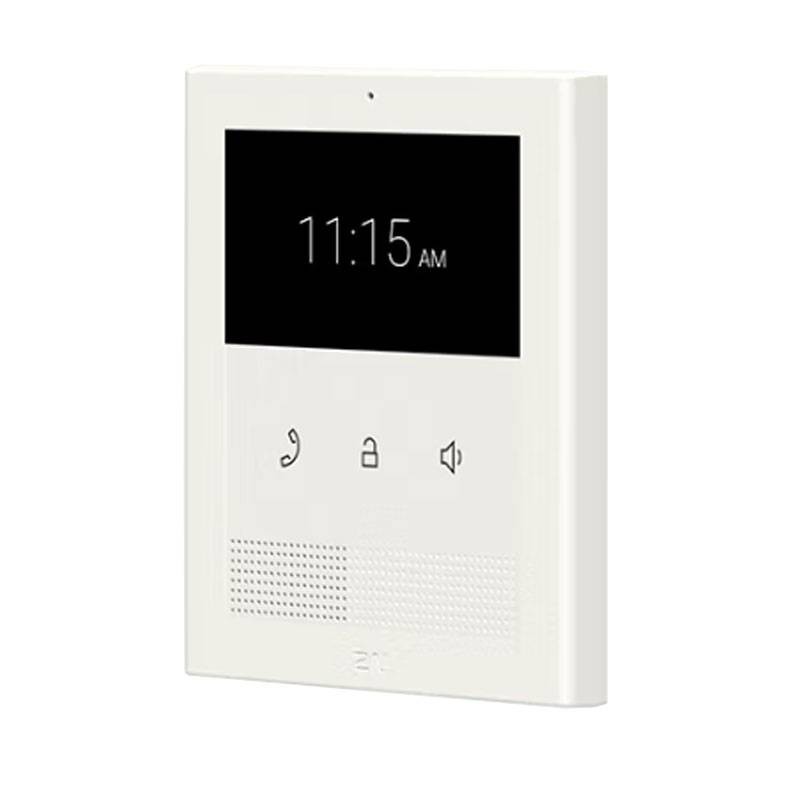

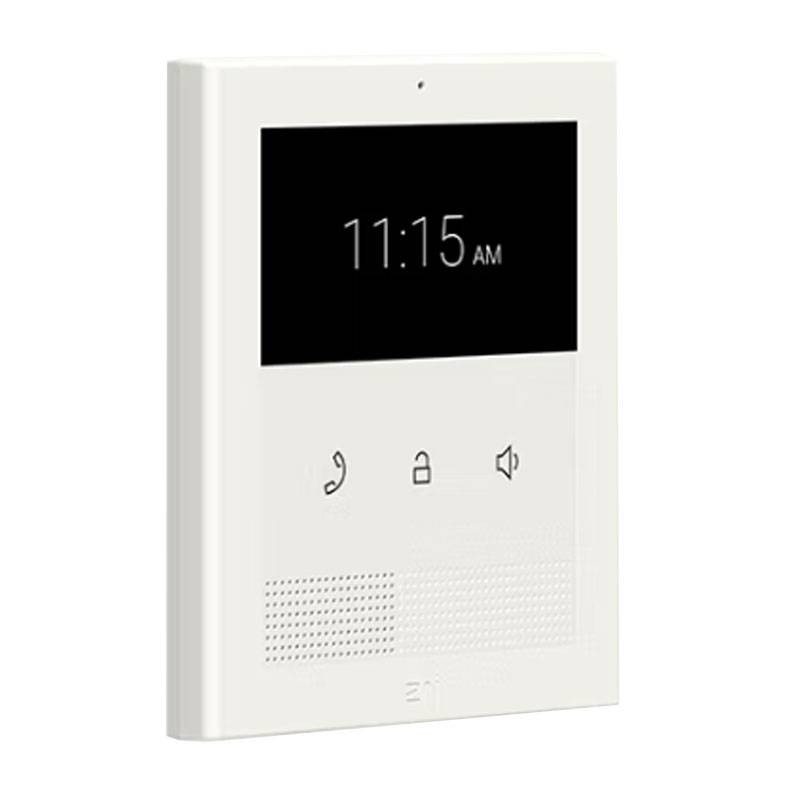

2N Clip IP video intercom with 4-inch monitor, compact and modern with ultra-fast installation, ideal for mid-range residential projects. Supports PoE power supply and Ethernet connection
-
4-inch color touch monitor, modern design
-
IP technology for sharp and secure images
-
PoE power supply one cable for data and power
-
Compatible with My2N Cloud remote management
-
Support for induction loop (accessible version)
-
Quick installation in just 3 minutes
-
Compatible with existing doorbell buttons
€321.19
Items Available: 3
: 1
2N Clip IP video intercom: The modern alternative for affordable residential projects
The 2N Clip is an IP video intercom developed to meet installation needs in modern mid-range housing. The video quality is clearly superior to older analog installations, while the compact and unobtrusive design allows for seamless integration into any housing context.
With its intuitive interface and management via My2N cloud, the device ensures maximum security and ease of use.
Seamless integration into the 2N system
The 2N Clip shares the same operating system as the high-end devices in the 2N range, ensuring uniformity in management, regular updates and full compatibility with video intercoms, access units, handsets and switchboards in the 2N ecosystem.
Secure and accessible access
The optional induction-circuit version is designed to provide access even for the hearing-impaired, making the 2N Clip the perfect choice for inclusive, standards-compliant projects.
Package Contents.
-
1 x 2N Clip 4" videophone
-
Wall mounting bracket
-
Installation manual
Installation in 3 minutes
One of the main advantages of the 2N Clip is its easy installation: only two screws to fix it to the wall. No additional power supply thanks to PoE, no extra doorbell module. It is the quickest and cleanest solution for modernizing video door phone systems.

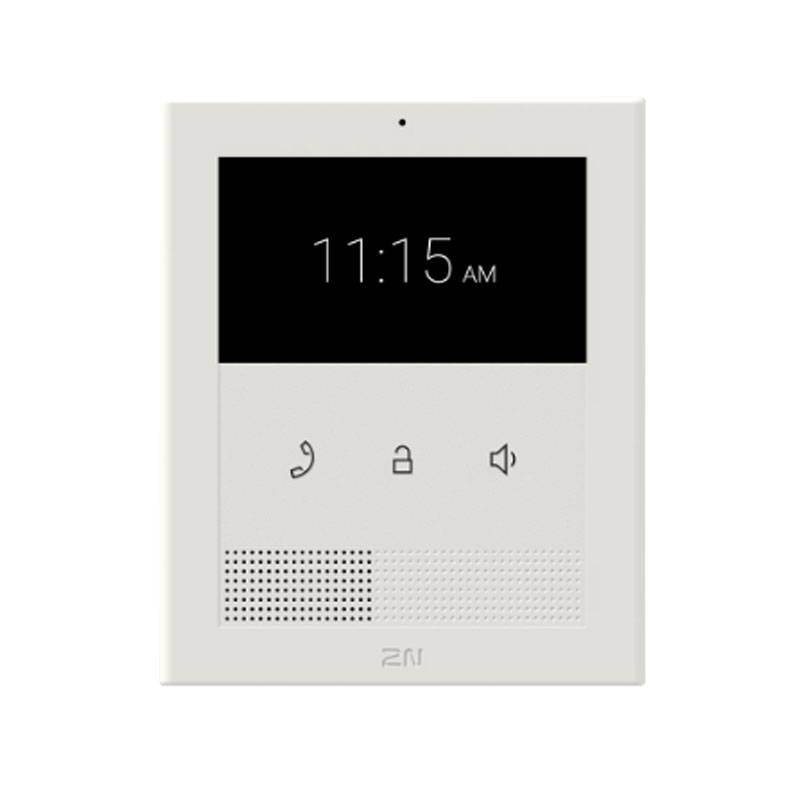

Function buttons on the device
3 buttons on the front of the device are used for basic control of the device:
-
handset button mainly used to initiate an outgoing call and accept or reject an incoming call
-
lock button mainly used to unlock the device set up
-
speaker button mainly used to control the volume change of the device
Technical specifications of the 2N Clip video intercom
Power supply
| Type | PoE 802.3af |
|---|---|
| PoE | PoE IEEE 802.3af, 48V, 200 mA |
User Interface
| Controls | 3 capacitive buttons |
|---|---|
| Operation | Press and hold RESET button to restore factory settings |
Audio
| Microphone | Built-in |
|---|---|
| Speaker | Integrated, 2W / 8 Ω |
| Integrated induction circuit | Optional |
| Codec | G.711a/u, G.722, G.729, L16/16kHz |
Video
| Display | 4.3″ display |
|---|---|
| Resolution | 480 × 272 pixels |
| Codec | H.264 |
Interface
| LAN | 10/100BaseT, RJ-45 |
|---|---|
| Recommended cabling | Cat5e or higher |
Doorbell input
| Input type | Switching contact (button/relay) |
|---|---|
| Contact type | Normally open (NO) |
| Contact parameters | 12V, DC |
Mechanical Characteristics
| Weight | 235 g |
|---|---|
| Operating temperature | 0°C to 50°C |
| Storage temperature | -20°C to 70°C |
| Operating relative humidity | 10% to 90% (non-condensing) |
| Recommended altitude | 0 - 2000 m |
There are no reviews
Data sheet
- Type: Video Intercoms
- System: IP
