Hands-free video intercom ABB M2249-2W-04 with 7" Wi-Fi and LAN display – Centralized control for Welcome® and free@home® systems with advanced audio-video and smart home features.
7” IPS display with 1024 × 600 resolution
Wi-Fi and LAN connections (LAN adapter 5249C included)
Compatible with ABB-Welcome® and ABB-free@home® systems
Supports up to 150 free@home® wireless devices
Complete smart home control: lights, shutters, thermostats, scenes
Hands-free video intercom with visitor photo function and integrated memory
Compatible with ONVIF IP cameras
Integration with OneApp / free@home next / Welcome App
Power supply: 2-wire bus, PoE, or external power supply 20–32 VDC

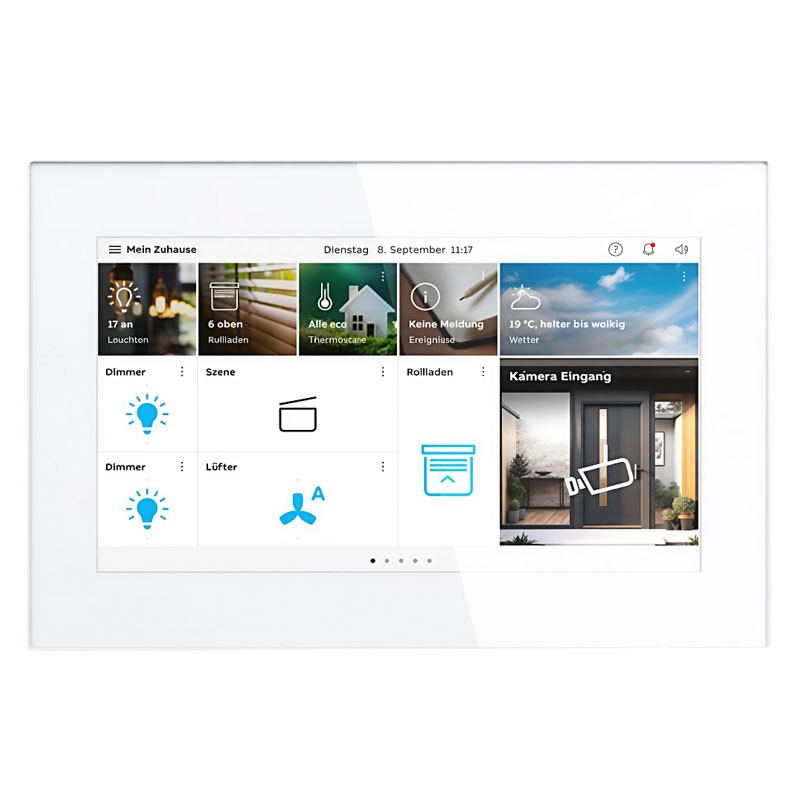

The ABB hands-free video intercom M2249-2W-04 represents an all-in-one solution for managing home security and automation through a single compact and elegant panel. Equipped with a 7-inch IPS display, it is designed to serve as the central indoor station in ABB-Welcome® (2-wire) and ABB-free@home® systems, combining home automation, video intercom, and remote control functions.
The device acts as a control panel for the entire free@home® system, thanks to the integrated wireless access point, allowing the management of up to 150 devices. It is possible to control:
Commissioning is simple and can be done via web interface, mobile app, or ad hoc Wi-Fi, without the need for additional software.
Connected to the ABB-Welcome® system, the M2249-2W-04 allows viewing of the external station video, hands-free communication, and recording of visitor images. In the absence of a response, up to three photos are automatically saved in memory. It is also possible to differentiate call tones between intercom and floor, choosing from five polyphonic ringtones.
Thanks to the integrated magnetic induction module, the audio signal can also be transmitted to hearing-impaired acoustic devices.
The M2249-2W-04 connects to the home network via Wi-Fi or LAN and allows integration with smartphones and tablets thanks to the OneApp / free@home next / Welcome App, transforming it into a mobile audio-video station.
Additionally, it supports integration with ONVIF IP cameras, which can be set as the main video sources in case of a call.
| MAIN FEATURES | |
|---|---|
| Model | M2249-2W-04 |
| Display | 7" IPS – 1024 × 600 pixels |
| Supported technologies | ABB-Welcome®, ABB-free@home® |
| Connectivity | Wi-Fi, LAN (with adapter 5249C) |
| Communication | Hands-free, visitor image recording |
| Ringtones | 5 selectable polyphonic tones |
| Volume | Adjustable (audio and ringtone) |
| Audio | Induction system for hearing aids |
| Integrated sensors | Ambient temperature |
| POWER SUPPLY | |
| Type of power supply | ABB 2-wire bus / PoE (IEEE 802.3) / External power supply 20–32 VDC (SELV) |
| Consumption | 400 mA (24 VDC) |
| MOUNTING | |
| Wall-mounted | With flush-mounted box 42491F |

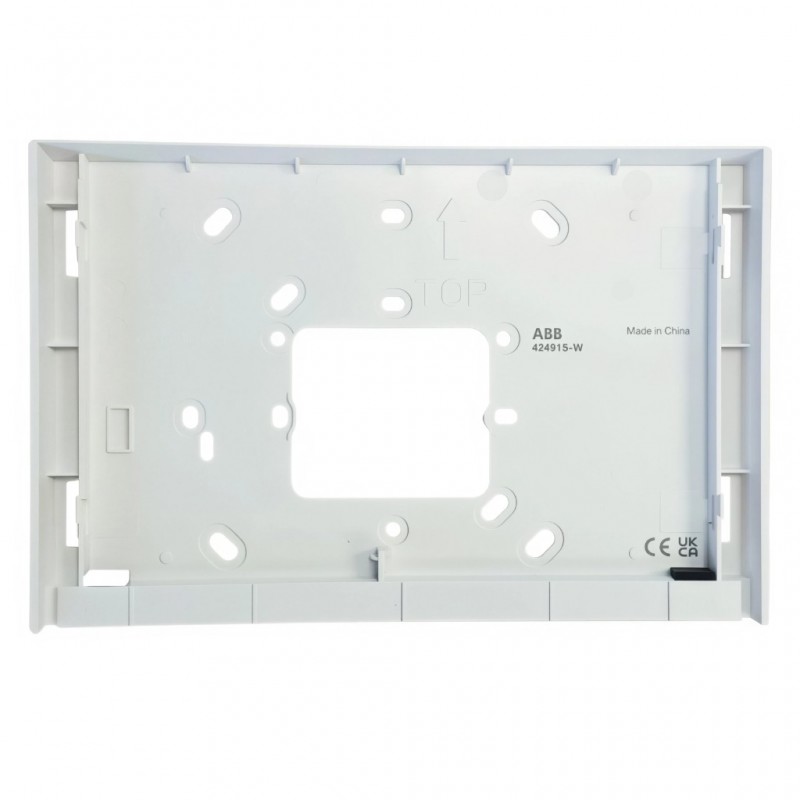

| Surface-mounted | With box 42491S-x (included) |
| On desk | With stand 83506 |
| PHYSICAL DATA | |

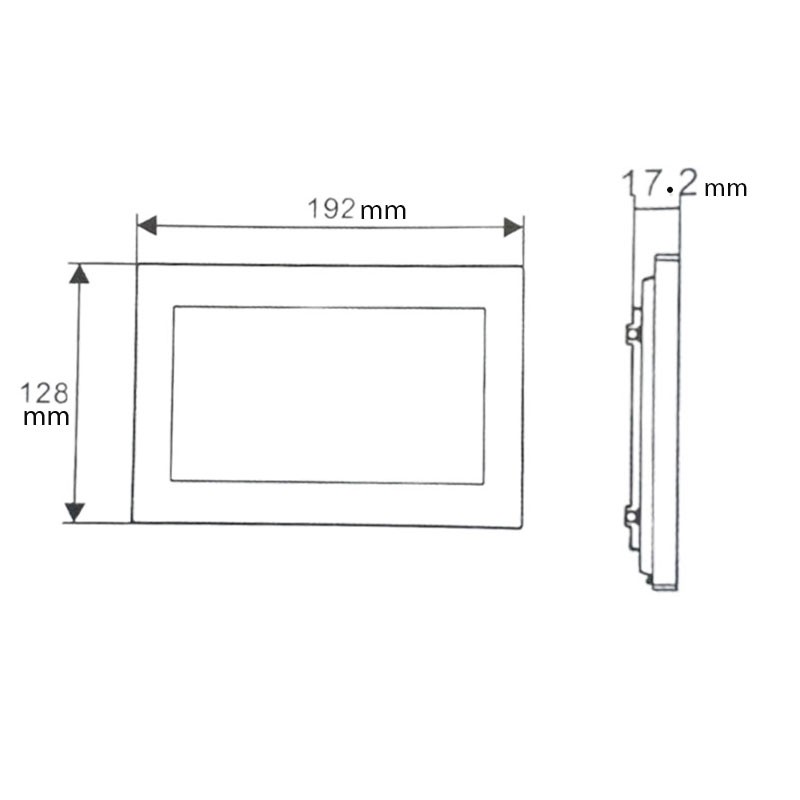

| Dimensions | 128 × 192 × 17.5 mm |
| INCLUDED ACCESSORIES | |
| Surface box | 42491S-x |
| LAN adapter | 5249C |
| Other | Mounting screws |
