Fracarro Antenna Kit 5G amplifier MAP3r3UU power supply Mini Power 12P 217973
FRA 217973
8016978106417
Fracarro kit, offers a complete solution to improve TV reception. It reduces 5G interference and ensures a stable, high-quality signal. Composed of:
-
10-element UHF band biconical antenna with F connector, 5G and 4G LTE filter and grid reflector (code 217915)
-
Amplifier with 3 inputs (III+DAB, UHF, UHF) pole mount with 28dB gain and output level up to 116dB?V in UHF band (code 223757)
-
Miniaturized 12V stabilized switching type power supply with high efficiency and low consumption (code 270021)
€71.74
Items Available: 36
Frequently bought together

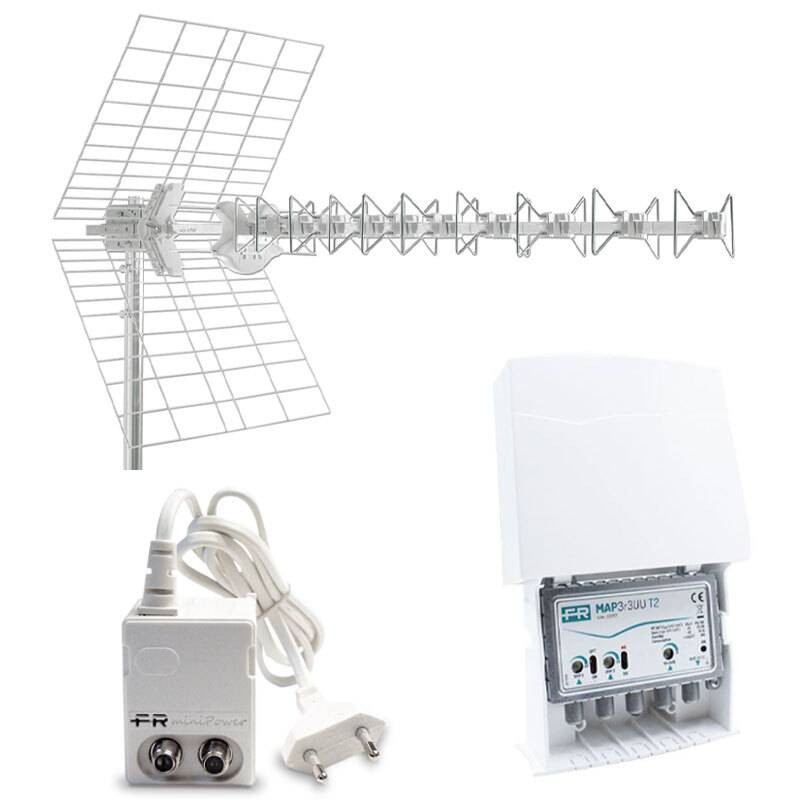

Fracarro 5G Antenna Kit with MAP3R3UU Amplifier and Mini Power 12P Power Supply
The Fracarro kit, offers a complete solution to improve TV reception: 5G antenna, MAP3R3UU amplifier and Mini Power 12P power supply. It reduces 5G interference and ensures a stable, high-quality signal.

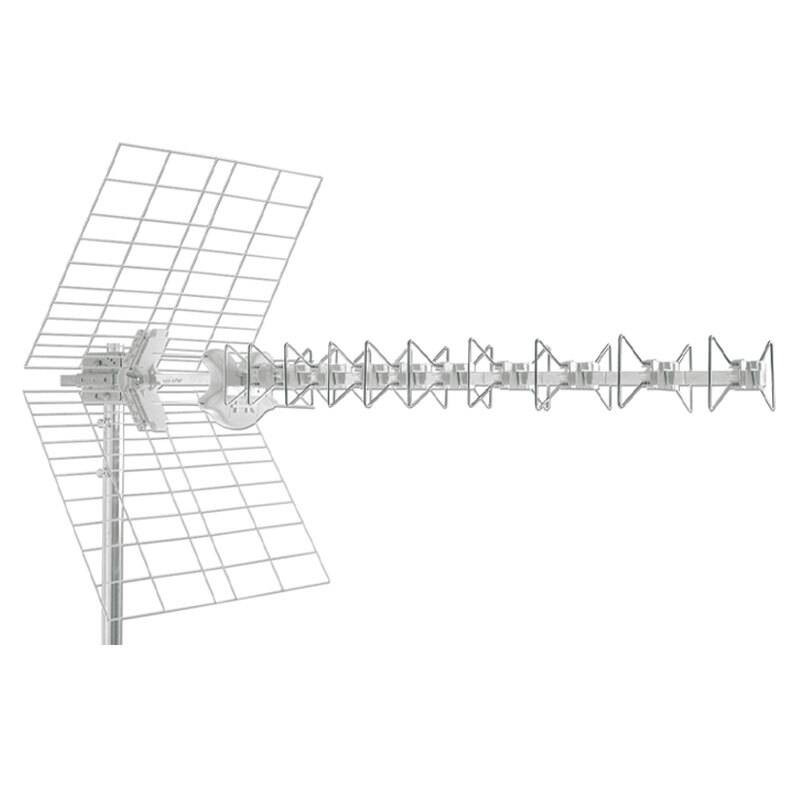

Biconical 10-element UHF band antenna with F connector, 5G and 4G LTE filter and grid reflector
The biconical antenna is designed to ensure high quality signal reception in the UHF band (470-694 MHz), eliminating interference caused by 5G and 4G LTE signals thanks to the built-in filter. This ensures clear and stable transmission, improving the quality of distributed content.
With 10 elements and a grid reflector, the antenna offers high gain, excellent directivity and excellent impedance matching. The high-quality, weather-resistant material construction is designed to last long in outdoor conditions.
Technical Specifications
| Band | UHF |
|---|---|
| Channels | E21-E48 |
| Band Width | 470-694 MHz |
| Gain | 15.5 dBi |
| Forward/reverse ratio | 30 dB |
| Connector | F |
| Impedance | 75 Ohm |
| Max pole diameter | 60 mm |
| Dimensions | 119 x 50 cm |
| Horizontal polarization | Included |
| Horizontal zenith adjustment | Included |
| Vertical polarization | Included |
| Vertical zenith adjustment | Included |

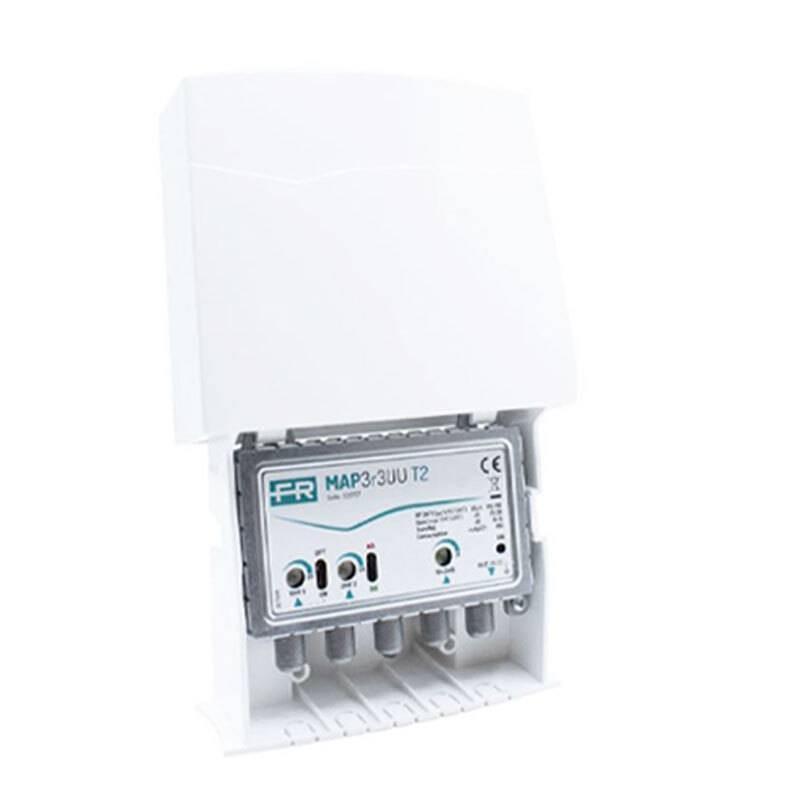

3-input (III+DAB, UHF, UHF) pole-mount amplifier with 28dB gain and output level up to 116dBV in UHF band
The pole-mount amplifier features a built-in 5G filter at 694MHz, which offers superior protection compared to external filters, ensuring interference-free connections from mobile phone signals.
With independent gain adjustments (0-15dB) for each input, it is possible to tailor the amplification to suit the needs of the system, optimizing the reception of different signals on band III/DAB and UHF band.
The amplifier includes a tele-power selector switch for the UHF or VHF+UHF input, depending on the model, and a status LED that indicates the proper operation and power supply of the device. All these features make the product extremely practical and high-performance.
Technical Specifications
| Number of inputs | 3 |
|---|---|
| Inputs | III+DAB UHF UHF |
| Frequency III, DAB | 174 - 240 MHz |
| UHF frequency | 470 - 694 MHz |
| Gain | III+DAB: 21 dB UHF: 28 dB |
| Number of outputs | 1 |
| Output level | III+DAB: 112 dBµV UHF: 116 dBµV |
| Connectors | Female |
| Filter | 5G |
| Power supply voltage | 12V |
| Impedance | 75 ohms |
| Degree of protection | IP43 |

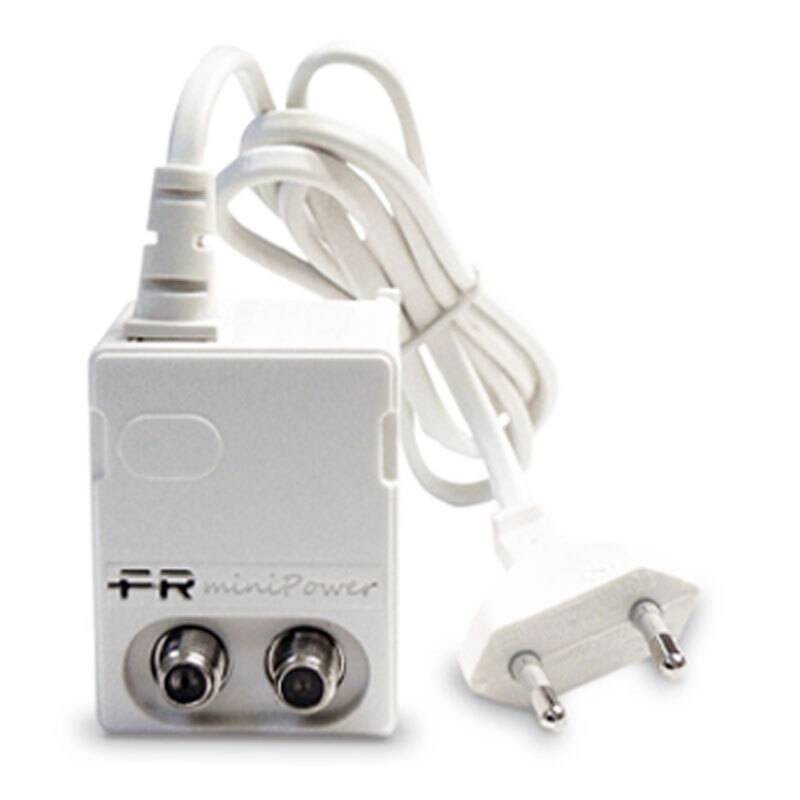

Miniature 12V stabilized switching type power supply with high efficiency and low power consumption
This stabilized switching power supply is designed for maximum efficiency with extremely low power consumption. Its stabilized 12V output voltage and 200 mA current make it suitable for various applications in TV and low voltage systems.
The power supply is designed with short-circuit protection, preventing damage to connected devices. In addition, it belongs to Insulation Class II, which ensures safe use even in environments with low electrical risk.
Technical Specifications
| Connectors | F |
|---|---|
| Insulation Class | II |
| Plug type | C type |
| Maximum output current | 200 mA |
| Number of outputs | 1 |
| Output voltage | 12V |
| Bandwidth | 5 862 MHz |
| Insertion loss | 0.5 dB |
| Supply voltage | 220-230 Vdc |
| Insulation class (repeated) | II |
Data sheet
- Type: Complete kits
