FTE DTT Antenna Kit with 5G Filter with Amplifier and Power Supply VKIT7-5G
FTE VKIT7-5G
8055271138558
Kit FTE is the ideal solution for setting up a small terrestrial TV system in areas with good digital terrestrial signal coverage, ensuring signal quality and protection from interference.
Kit consists of:
-
1 piece DTT UHF antenna (code TOP47-5G)
-
1 piece 12V power supply (code LPS302)
-
1 piece 2-input pole amplifier (BIII / UHF) with built-in 5G filter (code AMP204-5G)
€66.95
Items Available: 2
: 1

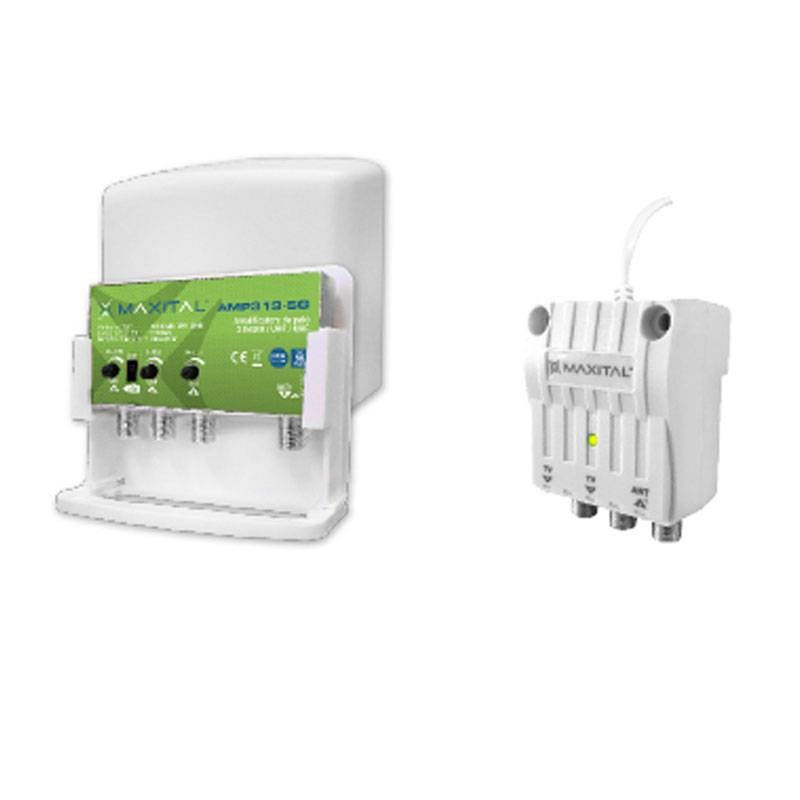

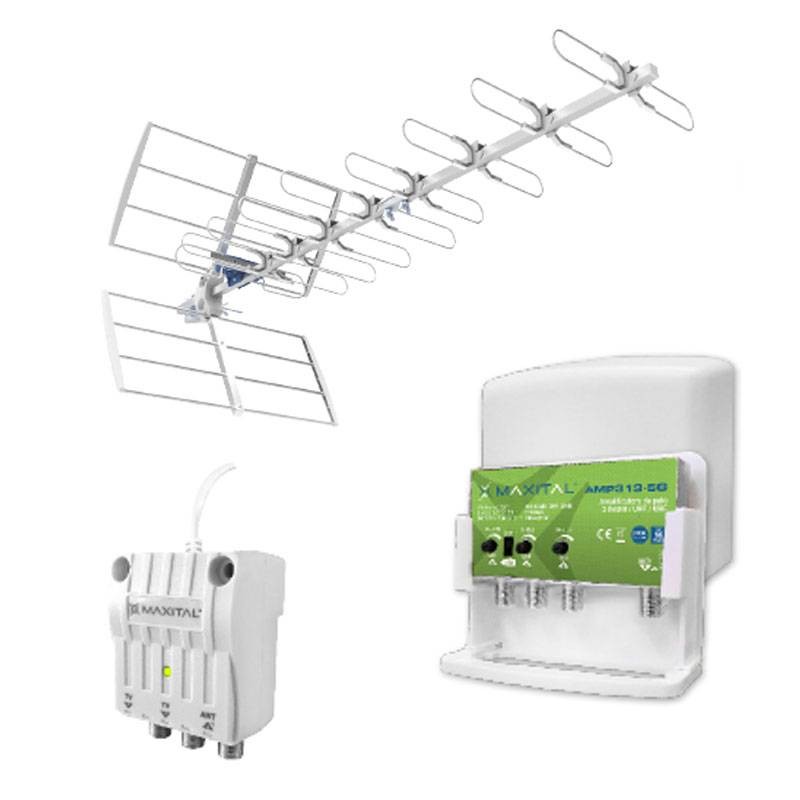

Components of the FTE Antenna Amplifier and Power Supply Kit VKIT7-5G
UHF DTT Antenna
Directive 5G Broadband UHF antenna with 11 elements, made of 18x12x0.75 mm carrier cradle with elements enclosed in a 4 mm aluminum rod, dipole with F connector. The antenna comes with F connector and connector protection cap. Ideal for single installations or small centralized installations.
Technical Specifications UHF Antenna
Technical Data
| Feature | Value |
|---|---|
| Number of elements | 11 |
| Band | UHF |
| Supported channels | 21-48 |
| Frequency range | 470-694 MHz |
| Maximum gain | 14 dBi |
| Forward/reverse ratio | 26 dB |
| Beam width (-3 dB) H/V | 38° / 45° |
| Impedance | 75 Ohms |
| Connector type | F |
| Polarization | Horizontal and vertical |
| Wind resistance (120 km/h) | 71 N |
| Pole attachment diameter | 28-60 mm |
| Dimensions (W x H x D) | 565 x 520 x 1280 mm |
| Reflector | Ø 8 x 0.8 mm / curtain type |
| Cradle dimensions | 18 x 18 x 0.75 mm |
Additional Features
| Feature | Value |
|---|---|
| Built-in 5G filter | In the dipole |
| Mounting | Tool-free interlocking click system |
| Dipole | Snap-in |
| Elements | Preassembled |
| Adjustment | Zenith for horizontal/vertical polarization |
| Directivity | Good |
| Mechanical robustness | High, with 18 x 18 mm cradle |
12V power supply LPS series
Power supply via coaxial cable active TV antennas, preamplifiers and pole mount amplifiers. 12V/350mA power supply. Plastic case that allows DIN rail mounting. Can be installed in 503 recessed box or on DIN rail.
Technical Specifications 12V TV power supply unit
Technical Data
| Feature | Value |
|---|---|
| Number of inputs | 1 |
| Number of outputs | 2 |
| Frequency range | 5 to 862 MHz |
| Output voltage | 12 VDC |
| Maximum output current | 350 mA |
| Input voltage | 230 VAC / 50 Hz |
| Passage attenuation | < 4 dB |
| Power supply type | Switching |
| Insulation class | II |
| Short-circuit protection | Yes, self-resetting |
| Enclosure type | Flameproof ABS - DIN rail mounting |
| Operating temperature range | -10 ÷ +40 °C |
| Dimensions (W x H x D) | 61 x 38 x 52 mm |
| Compliance | EN62368, EN55032:2015, EN55035:2017, EN61000 |
Additional Features
| Feature | Value |
|---|---|
| Insulation class | II |
| Short-circuit protection | Self restoring |
| Energy efficiency | High, with low consumption |
| Design | Compact, ideal for DIN panels |
| Function | Two-post TV signal distribution |
2-input pole mount amplifier (BIII / UHF) with built-in 5G filter
AMP series 2-input pole mount amplifier with 26/28 dB gain and 115 dBµV output level, 12V power supply, equipped with internal 5G filter and rainproof plastic case. It is used for medium-small installations.
Technical Specifications BIII/UHF Pole Mount Amplifier
Technical Data
| Feature | Value |
|---|---|
| Number of inputs | 2 (BIII / UHF) |
| Number of outputs | 1 |
| Supported bands | 174 to 230 MHz / 470 to 694 MHz |
| Gain | 26 dB (BIII) / 28 dB (UHF) |
| Gain adjustment | 20 dB (BIII) / 20 dB (UHF) |
| Maximum digital output level | 115 dBµV |
| Noise figure | ≤ 4 dB |
| Supply voltage | 12 VDC |
| Power consumption | 90 mA |
| Type of amplification | Separate BIII / UHF |
| Type of connectors | F |
| Maximum pole mount diameter | 60 mm |
| Operating temperature range | -10 ÷ +55 °C |
| Dimensions (W x H x D) | 83 x 78 x 28 mm |
| Compliance | EN 50083-2 |
Additional Features
| Feature | Value |
|---|---|
| High gain | Yes |
| Separate amplification | BIII and UHF |
| Built-in 5G filter | Yes |
| Noise figure | Low |
| Frame structure | Zamak with shielded metal covers |
| Enclosure type | Plastic |
| Accessories included | Clamp for fixing to pole |
