FTE antenna kit with LTE UHF filter BIII 4-input amplifier and power supply VKIT1LTE
FTE VKIT1LTE
8436023599269
FTE antenna kit is designed for making small DTT TV installations in areas where reception is fairly stable, but may be affected by LTE interference from BTS on former TV frequencies. Due to the complete composition in one package, installation is quick and intuitive.

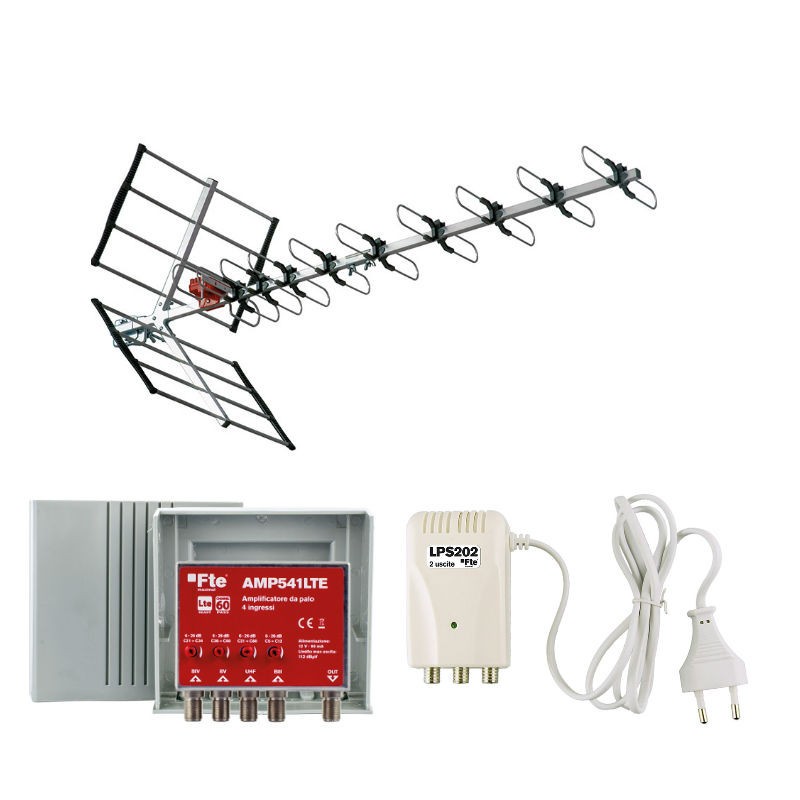

The kit consists of:
-
DTT UHF TOP47LTE band III antenna F7F10
-
AMP541-5G 4-input pole-mount amplifier (BIII/BIV/BV/UHF) with built-in 5G filter
-
12V power supply
€114.09
Items Available: 7
: 3
Technical Specifications of the FTE Kit stable digital reception without LTE interference

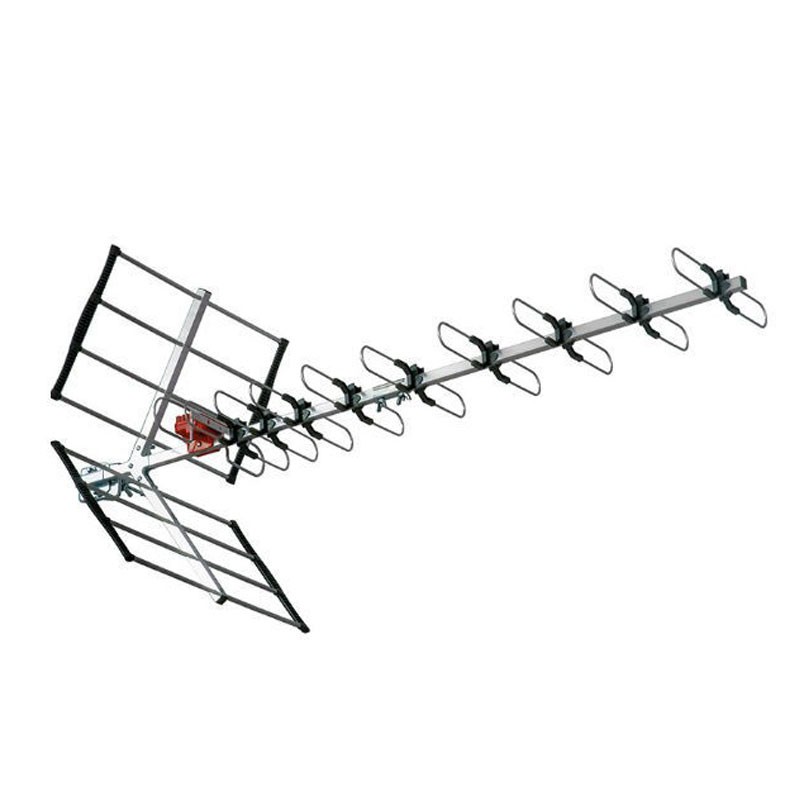

UHF TOP47LTE Band III DTT Antenna F7F10
The kit includes the antenna, an 11-element UHF, optimized for channels 21-60 (470-790 MHz), with a maximum gain of 14 dBi and forward/reverse ratio of 26 dB. In combination, the F7F10 antenna for band III (channels 5-12) covers the 174-230 MHz range with a gain of 11 dBi, improving reception of digital terrestrial TV signal.
Technical Specifications TOP47LTE and F7F10 Antennas.
Comparison Table
| Feature | TOP47LTE | F7F10 |
|---|---|---|
| Number of Elements | 11 | 7 |
| Band | UHF | BIII |
| Supported channels | 21 - 60 | 5 - 12 |
| Frequency range | 470 - 790 MHz | 174 - 230 MHz |
| Maximum gain | 14 dBi | 11 dBi |
| Forward/reverse ratio | 26 dB | 19 dB |

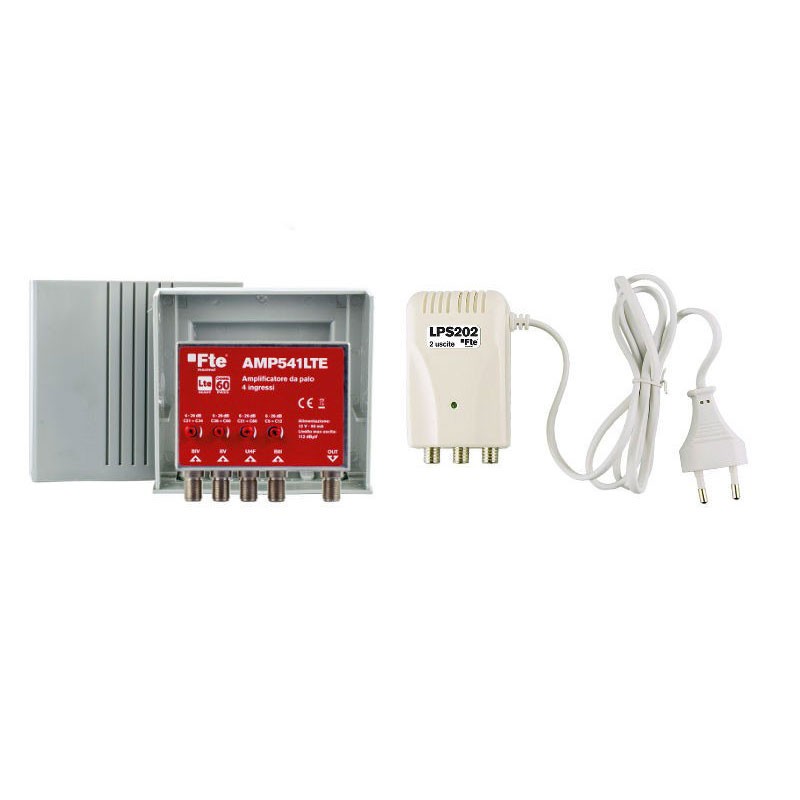

4-input pole-mount amplifier with built-in 5G filter
Pole amplifier with 4 inputs (BIII / 21-34 / 36-60 / UHF) and adjustable gain up to 26 dB, ideal for mixing received signals. Built-in LTE filter blocks interference caused by telephone signals (700-800 MHz band), improving TV signal quality.
Technical Specifications AMP541LTE Pole Mount Amplifier
Technical Data
| Feature | Value |
|---|---|
| Number of inputs | 4 |
| Bands supported | BIII / 21-34 / 36-60 / UHF |
| Gain | 26 dB |
| Gain adjustment | 20 dB |
| Maximum output level | 115 dBµV |
12V power supply
The 12V power supply provides stable power to the amplifier, with maximum current of 200 mA and two outputs. It operates on 230V 50-60 Hz power supply.
Technical Specifications Power Supply LPS202
Technical Data
| Feature | Value |
|---|---|
| Number of inputs | 1 |
| Number of outputs | 2 |
| Output voltage | 12 VDC (linear) |
| Output current | 200 mA |
| Input voltage | 230 VAC / 50-60 Hz |
There are no reviews
Data sheet
- Type: Complete kits
