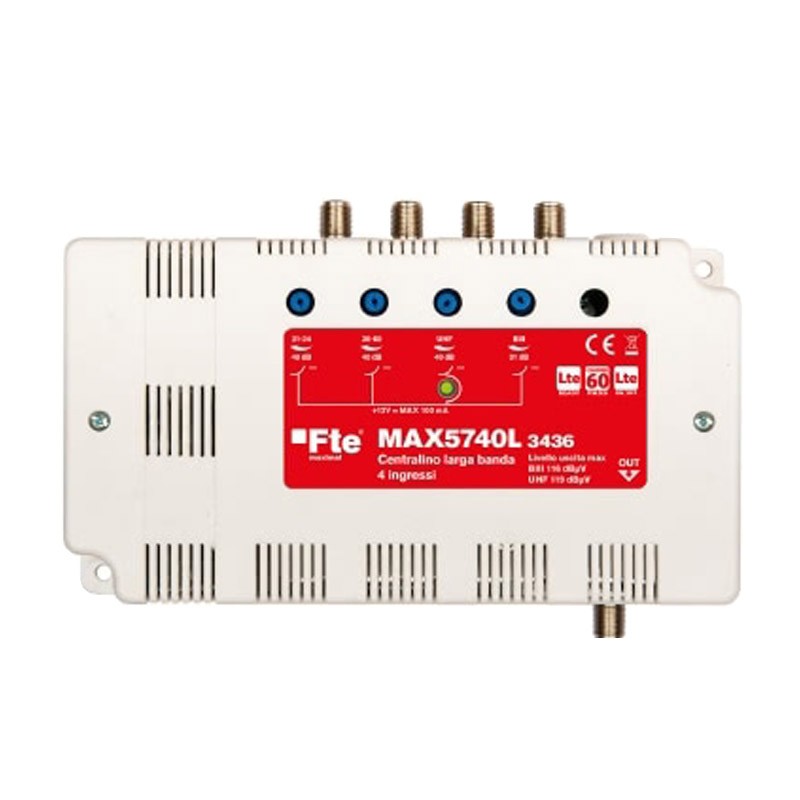

Switchboard FTE 4 inputs BIII/IV/V/UHF MAX5740L3436
FTE MAX5740L3436
8436545302385
FTE wide band control unit with 1 input BIII, 1 input 21-34, 1 input 36-60 and 1 UHF input, with gain up to 40 dB. Max. output level of 119/122 dBµV, self-powered with switching power supply.
€157.88
Items Available: 4
: 2
Strengths
- High gain
- Separate band amplification VHF / UHF
- Max. output level 119 / 122 dBµV
- Gain adjustment 20 dB
- Integrated LTE / 4G filter deactivated by internal jumper
- Shielded metal chassis, ABS enclosure and F-type connectors
- 230 VAC power supply with automatic short circuit protection circuit
- Remote power supply available in each input (100 mA total)
- 100% Made in Italy.
Applications:
- Useful in medium to large installations.
Technical data:
- N° 4 inputs (BIII / 21-34 / 36-60 / UHF)
- Bands 174÷230 / 470÷582 / 590÷790
- N° outputs 1
- Gain - dB 31 / 40 / 40
- Gain adjustment - dB 20
- Digital output max level - dBuV 119 / 122
- Noise figure - dB <= 4
- Supply voltage - VAC 230
- Separate VHF / UHF amplification type
- Remote power supply 12 V (100 mA total) On all inputs
- Chassis type Metal with ABS outer casing
- Type of container ABS
- Operating temperature -10 ÷ 55
- Dimensions (W x H x D) - mm 185 x 120 x 50
- Weight - g 500
- Complies with EN 50083-2 standards.
There are no reviews
Data sheet
- Type: Front panels
- Version: 4IN/1OUT
