Fracarro TV switchboard 4 inputs 3+DAB 4.5 U T2 20dB 223618
FRA 223618
8016978099634

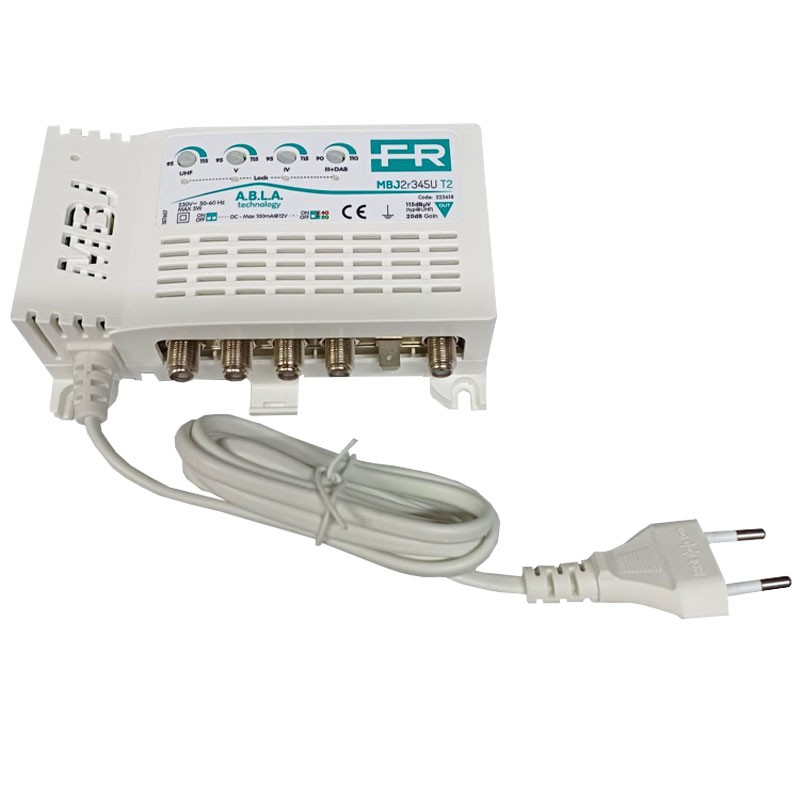

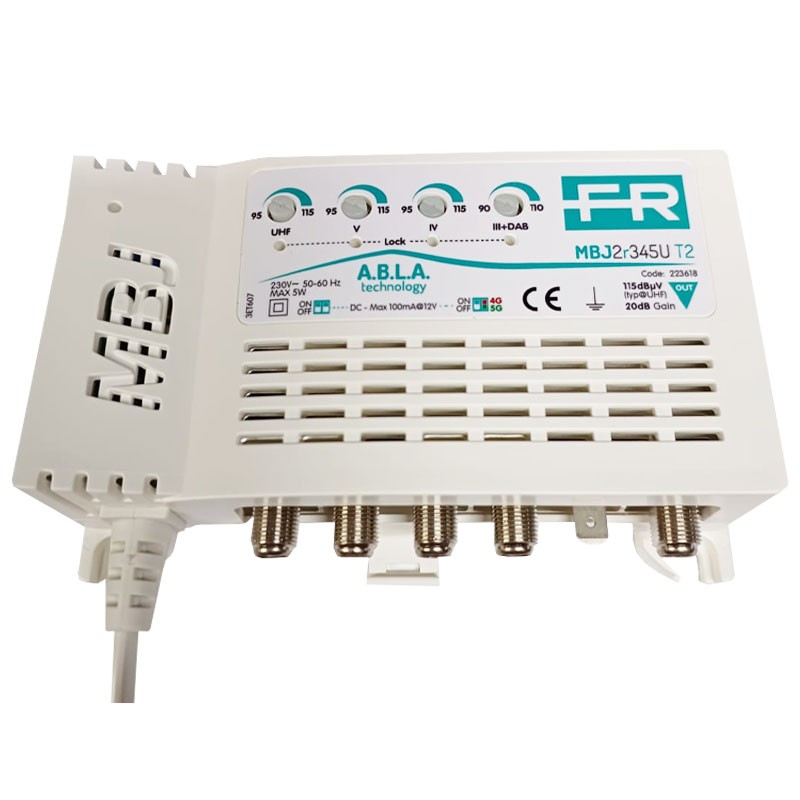

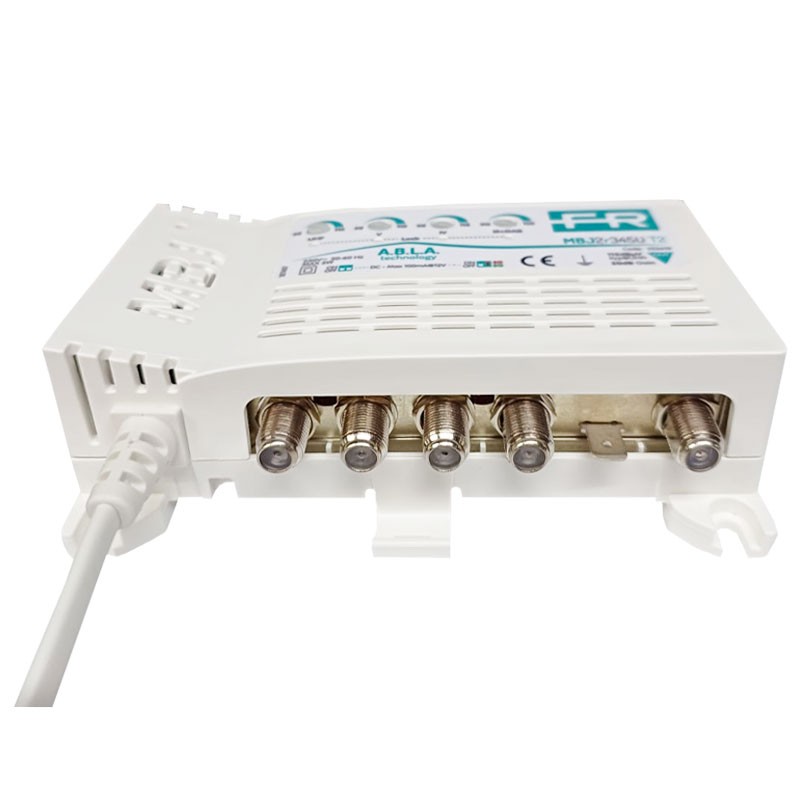

Fracarro MBJ2R345U T2 TV switchboard, with the following features:
- With 4 inputs (III+DAB, IV, V, UHF) indoor self-powered with 20dB gain and output level up to 115dBμV in UHF band
- Separate amplifications
- Independent level adjustments (20dB) for each input and low noise figure
- T2 technology with innovative cutoff selection switch for LTE 4G interference at 790MHz or 5G interference at 694MHz
- IN: 4
- Bands: III+DAB, IV, V, UHF
- Gain (dB) 20, 20, 20
- Adjustment: (dB) 20, 20, 20
- Noise figure: (dB) 6,9,9
- Output level: (dBµV) 110,115
€88.44
Items Available: 53
: 25
Advantages:
- T2 selector: Innovative cutoff selection switch for 4G LTE interference at 790MHz or 5G interference at 694MHz; built-in 4G and 5G LTE filters to make the footprint in junction boxes minimal compared to using an external filter.
- A.B.L.A. functionality: FRACARRO exclusive system for maintaining the set output level constant even as the level of each input changes (independent A.B.L.A. circuits) with output level stabilization even for high input TV signal variations and LED operation of dedicated A.B.L.A. circuits.
- High shielding against LTE interference (LTE Free).
- Protective shell: the new switchboards are equipped with a flame-retardant and non-propagating (Class V0) ABS enclosure
- Prepared for DIN rail mountingstandard with quick disconnect.
- The overall dimensions of the MBJ EVO T2s are designed so that they can be easily installed inside wall boxes
- Switching power supply withvery high efficiency (>80%) And self-resetting short-circuit protection circuit.
- Selector switch for inserting remote power supply on each input (100mA total)
- Power supply status LED
- Faston for connection to TV system grounding system
There are no reviews
Data sheet
- Type: Front panels
- Version: 4IN/1OUT
- Model: 20db
