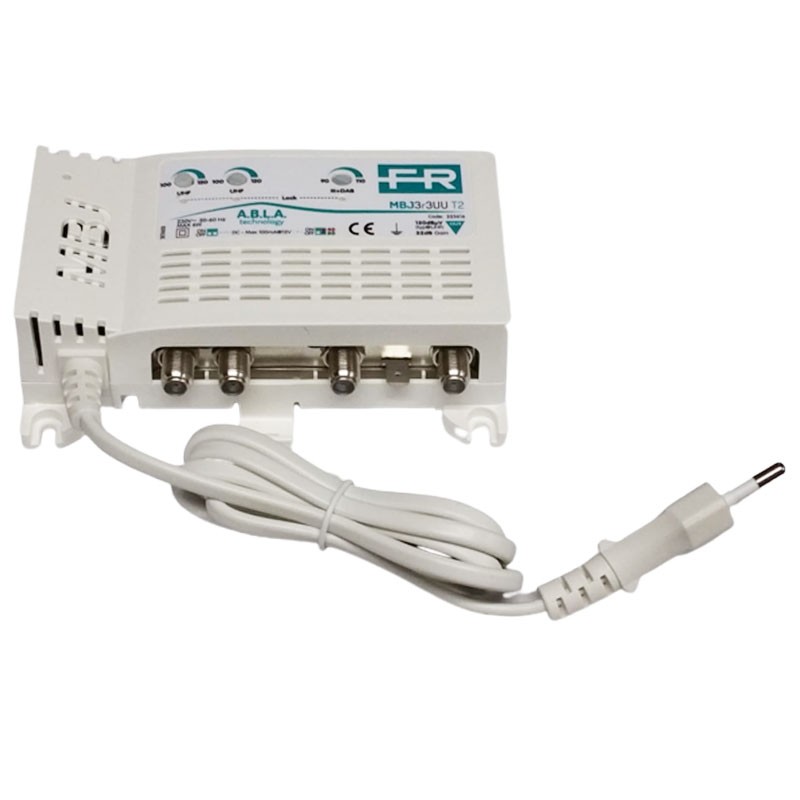

Fracarro TV Switchboard 3IN 3+DAB U U T2 223616


FRA 223616 8016978099641

Fracarro TV switchboard, with the following features:

  • With 3 inputs (III+DAB, UHF, UHF) indoor self-powered with 32dB gain and output level up to 120dBμV in UHF band
  • Separate amplifications, independent level adjustments (20dB) for each input and low noise figure
  • T2 technology with innovative cutoff selection switch for LTE 4G interference at 790MHz or 5G interference at 694MHz
  • IN: 3
  • Bands: III+ DAB, UHF
  • Gain (dB) 32,32,32
  • Adjustment: (dB) 20,20,20
  • Noise figure: (dB) 6,9,9
  • Output level: (dBµV) 110,120
Request info about this product

Fracarro TV Switchboard 3IN 3+DAB U U T2 223616

€85.86
€85.86

Fracarro TV Switchboard 3IN 3+DAB U U T2 223616

€85.86
Tax included
klarna Pay in installments with Klarna
qty

Fracarro TV Switchboard 3IN 3+DAB U U T2 223616

€85.86

Buy it within and receive it from Monday, 22 April
Two-year warranty
Secure Payment
Easy return within 14 days

Advantages:

  • T2 selector switch: innovative cutoff selection switch for 4G LTE interference at 790MHz or 5G interference at 694MHz; built-in 4G and 5G LTE filters to make the footprint in junction boxes minimal compared to using an external filter
  • A.B.L.A functionality: exclusive FRACARRO system for maintaining the set output level constant even as the level of each input changes (independent A.B.L.A. circuits) with output level stabilization even for high variations in the input TV signal and LED operation of dedicated A.B.L.A. circuits
  • High shielding against LTE noise (LTE Free)
  • Protective shell: the new switchboards are equipped with a flame-retardant and non-propagating (Class V0) ABS material enclosure
  • Prepared for mounting on standardDIN rail with quick release.
  • Designed to be easily installed inside wall boxes
  • Very high efficiency switching power supply (>80%) and self-resetting short-circuit protection circuit
  • Selector switch for remote power on each input (100mA total)
  • Power supply status LED
  • Faston for connection to TV system grounding system

Data sheet

Type:
Front panels
Version:
3IN/1OUT
Model:
32db
