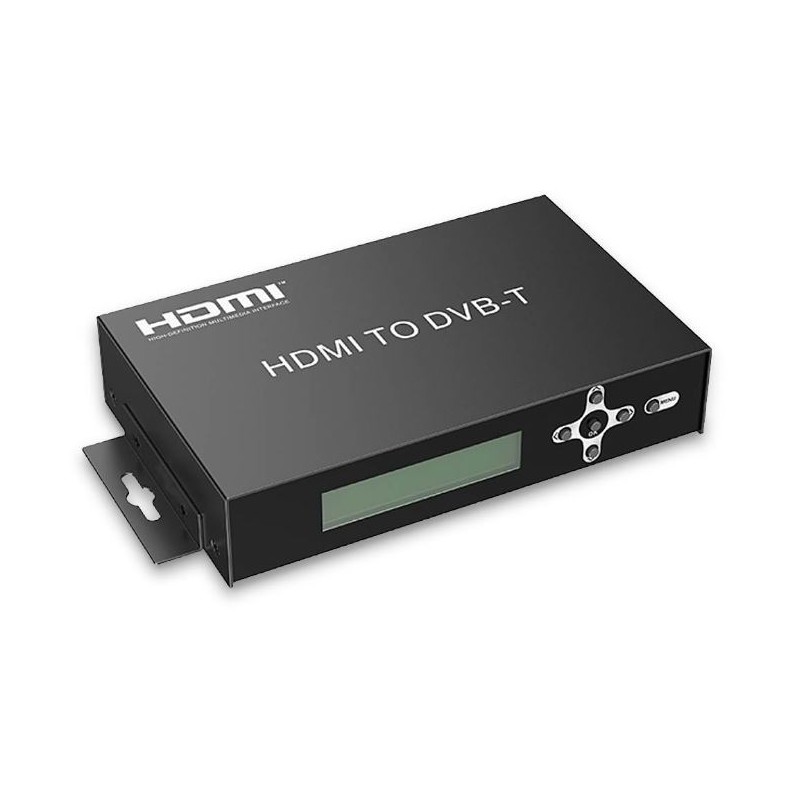

Micro Modulator for internal HDMI/DVB T Full HD 35dB 287545
FRA 287545
8016978103720
Micro Modulator Fracarro high quality DVB-T 'Home' digital indoor modulator with the following features:
- With loopthrough to HDMI output port
- Programming via Bluetooth with free application
- Number of outputs 2 (RF DVB-T, HDMI LT)
- Number of inputs 2 (HDMI, RF DVB-T MIX)
- Power supply voltage 12V
- Power consumption mA 400
- Configurable parameters Service name, service ID, video PID, audio PID, PMT PID, TSID, ONID, network ID, provider name
- Bluetooth charge/save configuration (version 4.0 or higher)
- Working temperature °C 0 to +50from the internal HDMI/DVB T FULL HD 35DB 287429
Micro Modulator for internal HDMI/DVB T Full HD 35dB 287545
€257.07
€257.07
Tax included
Tax included
Pay in installments with Klarna
Items Available: 5
Advantages:
- Receives a signal from the HDMI input and converts it to digital terrestrial DVB-T on the output F connector, in which the signal from the antenna or another modulator can be mixed
- Ideal solution for DVB-T distribution within an existing coaxial network of SD or HD digital signals received from any device (e.g. DVD player, decoder or camera)
- Easy installation with programming via Bluetooth with free application
- MPEG-4 AVC/H.264 video encoding with Full HD 1920x1080-30p resolution
- VHF and UHF output band with typical MER >35dB on UHF channel
- Miniaturised metal chassis for high interference shielding and excellent heat dissipation
Input:
- MPEG-4 AVC / H.264 video
- Video profile High profile 4.0
- Video resolution 1920x1080@30fps HDMI
- Video bitrate Mbps 1-19 (adjustable)
- HDMI audio type
- Audio standards MPEG-1 Layer II, MPEG-2, AAC, AC3
- Audio bitrate Kbps 64, 96, 128, 192, 256, 320, 384
- Audio level Vpp 0.5 - 1 (adjustable)
Output
- Modulation transponder number 1
- Modulation standard DVB-T output (EN300744)
- RF channels E5-E12, E21-E69 RF frequency MHz 174-230, 470-862
- Tuning step KHz 1000 Bandwidth MHz 5, 6, 7, 8
- Carriers 2K, 8K Modulation QPSK, 16QAM, 64QAM
- Guard interval modulation 1/4, 1/8, 1/16, 1/32
- FEC output modulation 1/2, 2/3, 3/4, 5/6, 7/8
- Maximum output level dBµV 90 Gain adjustment dB 20 MER RF dB 35 @UHF
- Mixed band MHz 47-862
- Insertion loss dB 1 Typical
- LCN Yes (Nordig, ITC/UK, EICTA/Europe, New Zealand)
Data sheet
- Type:
- Modulators
- Version:
- HDMI/RF/DVB-T
