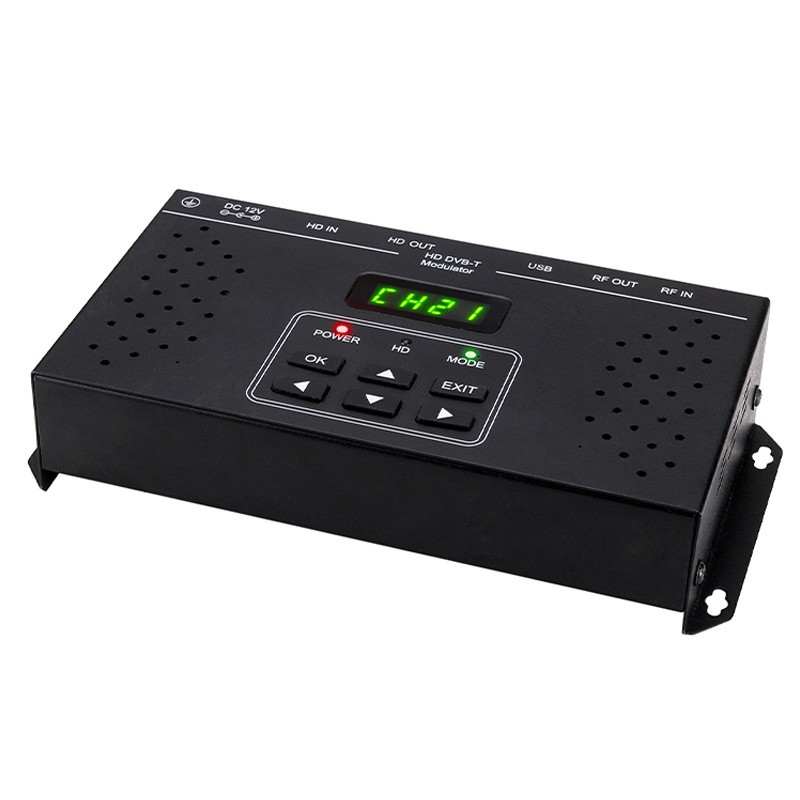

Audio modulator Video FTE and LOOP HDMI input to DVB-T MOD200HD
FTE MOD200HD
8055271133003
Digital modulator Audio Video FTE LOOP with an HDMI input to DVB-T. basic Programming from keypad and advanced programming from your PC. This machine allows you to withdraw a spring with a maximum resolution of 1080p HDMI from a cable box, a DVD or a DVR and modularla in a mux terrestrial while maintaining the quality of the signal. Furthermore, thanks to its HDMI output loop allows you keep a control monitor in the vicinity of the source.
€194.71
Items Available: 5
: 2
Features:
- The number of inputs/outputs 1
- video encoding MPEG-4 AVC / H. 264
- Video bit rate - Mbps 5 ÷ 15
- Max. video resolution 1920 x 1080p (Full HD)
- Connector type HDMI audio
- Encode MPG audio 1 Layer II / AAC / LC
- Audio Bitrate - Kbps 128 to 384
- Connector type F female
- Number mux generated 1
- Modulation DVB-T
- Constellation QPSK, 16QAM, 64QAM
- Channels C5 To C12 / C21 To C69
- Bandwidth - MHz 170 ÷ 230 / 470 ÷ 862
- Bandwidth - MHz 6, 7, 8
- Carriers 2K, 8K
- Guard interval 1/4, 1/8, 1/16, 1/32
- FEC 1/2, 2/3, 3/4, 5/6, 7/8
- Maximum level - dBµV 90
- Adjustment level - dB 15
- MER - dB > 30
- Band mixed - MHz 174 ÷ 862
- Insertion loss - 2 dB
- Quick programming: from display and 3 buttons - Advanced: from PC via USB port
- LCN
- Output power supply - VDC / mA 5 / 2000
- Dimensions ( w x h x d) mm: 170 x 113 x 30.
There are no reviews
Data sheet
- Type: Modulators
- Version: Audio/Video
