Fracarro Modulator Analog A/V fullband stereo Multistandard RCA 287058
FRA 287058
8016978086351

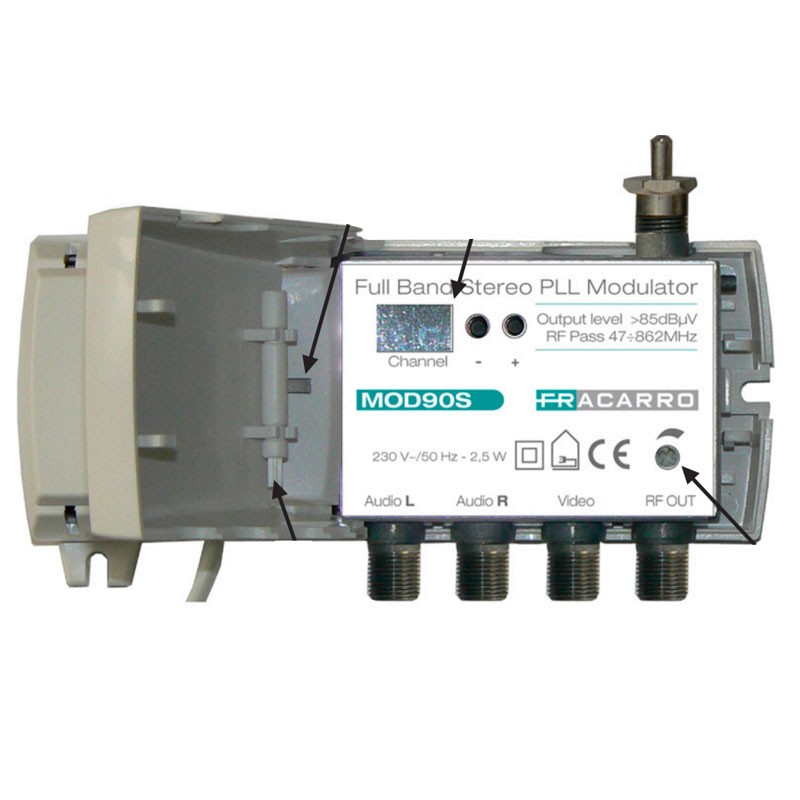

Fracarro analog MOD90S Audio/Video Stereo A2 modulator with double side band, with the following characteristics
-
Consumption mA: 2.5
-
Power supply voltage V: 230, 50
-
Compliance EN 50083-2
-
Test signal: Black screen with programmable stripes
-
Operating temperature C°: -10 to +40
-
Dimensions im mm: 133 x 73 x 39
€105.84
Items Available: 3
Dual sideband controlled by PLL synthesis for precise output frequency selection.
The availability of both VHF and UHF output frequencies and multi-standard selection of output modulation allow use in many installations.
Features:
- Fracarro Series
- Composite video input: Frequency range Hz 20-6000
- Audio input Frequency range Hz: 20-15000
- RF output: Output level dBµV 90 (typical)
- Sound n°1 MHz: 4.5, 5.5, 6.0, 6.5 (programmable)
- Video frequency fine tuning MHz: ±2.25 in 0.25 step (programmable)
- Carrier ratio: Audio1/video dB 12-16
- Modulation depth %: 81 (typical)
- S/N ratio dB: ˃55
- Spurious response: 54
There are no reviews
Data sheet
- Type: Modulators
- Version: Audio/Video
