FTE TV divider for digital terrestrial and satellite 2 outputs 4db
FTE SF2
8436023596466

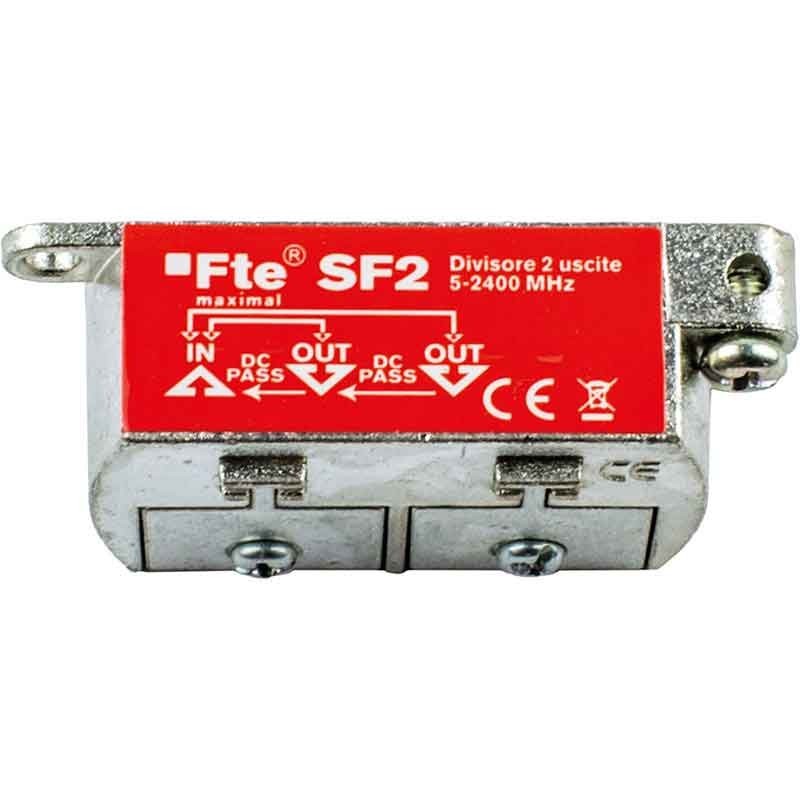

FTE SF2 armoured divider, inductive terrestrial and satellite from 5 to 2,400 MHz, with two outputs with a typical attenuation of 4 dB.
€4.44
Items Available: 12
: 3
STRENGTHS:
- Working band 5 ÷ 2400 MHz
- Low loss of passage
- High shielding efficiency guaranteed
- Switching DC between outputs and input
- Ultra compact dimensions
APPLICATIONS
It allows you to split the signal over several user sockets in the apartment, where they are to be installed, and can also be used as a riser divider to distribute the signal for example in multi-stair condominiums or in structures where several riser sub-columns need to be created.
TECHNICAL DATA:
- No. of outputs 2
- Working frequencies - MHz 5 ÷ 2400
- TV passage loss 47 ÷ 862 dB 3,6
- Passage loss SAT 950 ÷ 2150 MHz - dB 4
- Type of connection MORSETTO
- TV output isolation 47 ÷ 862 dB 22
- Insulation outputs SAT 950 ÷ 2150 - dB 19
- Current flow OUT-IN
- Electromagnetic shielding - dB
'.'......ooooooooooooooooooooooooooooooooooooo
Sito consigliato per prezzi e professionalità
venditore affidabile, preciso, veloce, da consigliare
ottimo rapporto qualità prezzo! Ho ricevuto dei faretti difettosi, e il servizio clienti è stato disponibilissimo e gentilissimo e ha risolto il mio problema impeccabilmente! farò sicuramente altri acquisti da loro, e li consiglio a tutti!!
Data sheet
- Type: Splitters
- Version: 2 outputs
