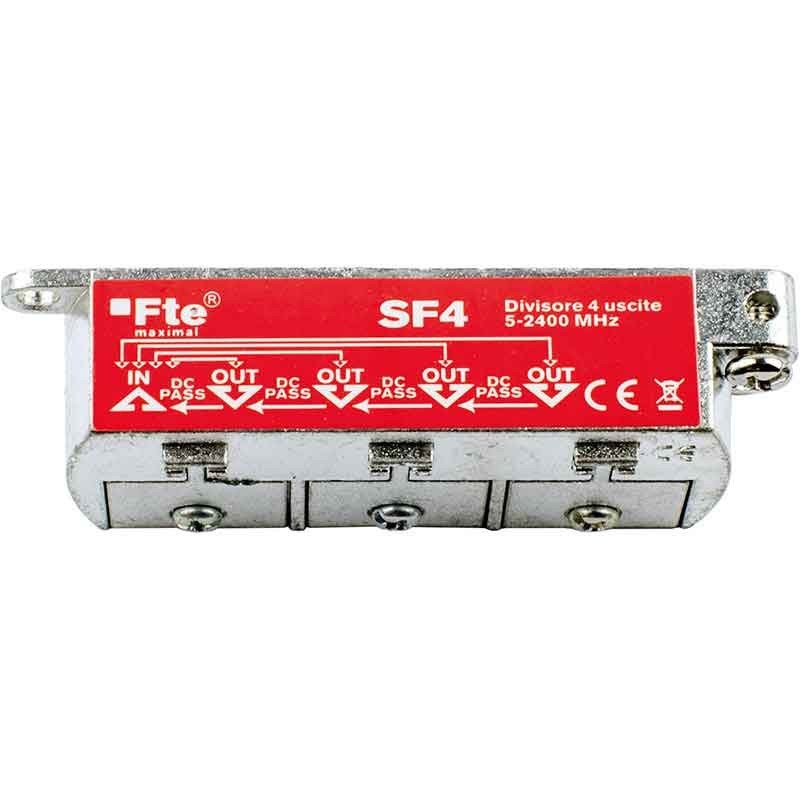

TV Splitter FTE for terrestrial and satellite digital 4 outputs 8 dB 5-2400 MHz SF4
FTE SF4
8436023596480
FTE TV Splitter 4 outputs, compact, shielded and ideal for terrestrial and satellite digital, with the following features:
-
Number of outputs: 4
-
Operating frequencies: 5 - 2400 MHz
-
TV/SAT output isolation: 19 dB
-
Current pass-through: OUT-IN
-
Return loss: 10 dB
-
Connection type: Clamp
€7.11
Items Available: 10
: 1
TV and SAT signal splitter maximum versatility in reduced spaces
The FTE TV splitter with 4 outputs is the perfect solution for distributing terrestrial and satellite digital signals in residential environments and centralized systems. Designed to operate over a wide frequency band from 5 to 2400 MHz, it is compatible with all TV (47-862 MHz) and SAT (950-2150 MHz) signals, both analog and digital.
Thanks to its compact design and lightweight, it can be easily installed even in very tight spaces, such as behind antenna sockets, in junction boxes, or inside technical panels.
Efficient signal distribution over multiple sockets
With 4 available outputs and a typical attenuation of 11 dB in the SAT band and 8 dB in the TV band, the splitter allows efficient signal distribution among multiple outlets. This makes it ideal for signal distribution within apartments or offices, or as a riser splitter in condominiums with multiple staircases or housing units.
The DC OUT-IN pass-through allows the powering of active devices such as preamplifiers or LNBs directly through the splitter, without the need for additional wiring.
High shielding and isolation for a clean signal
The construction quality of the FTE splitter ensures Class A electromagnetic shielding, with a value greater than 70 dB, which protects the system from external interference. Additionally, the 19 dB isolation between outputs ensures less crosstalk between lines, maintaining the integrity of the distributed signal.
The clamp-type connection facilitates simple and secure wiring, suitable for both quick installations and more complex professional solutions.
Ideal applications of the FTE 3-output splitter
-
Signal distribution in apartments and single-family homes
-
Multiservice systems (TV + SAT) with multiple outlets
-
Riser column splitting in condominiums
-
Systems requiring power from a single point
-
Solutions where space is limited but maximum efficiency is required
Technical Features FTE TV Splitter
| Number of outputs | 4 |
| Operating frequencies | 5 ÷ 2400 MHz |
| TV pass-through loss (47–862 MHz) | 9.2 dB |
| SAT pass-through loss (950–2150 MHz) | 11 dB |
| TV output isolation | 19 dB |
| SAT output isolation | 19 dB |
| Current pass-through | OUT → IN |
| Electromagnetic shielding | > 70 dB (Class A) |
| Return loss | 10 dB |
| Connection type | Clamp |
| Operating temperature | -10 ÷ +55 °C |
| Dimensions (L × W × H) | 77 × 25 × 17 mm |
...................................................
'........ooooooooooooooooooooooooooooooooooooooooo
Buona qualità, servizio impeccabile. Ricomprero dal Elettronew.
Prodotto come descritto. Adatto per cavi da 5 mm di diametro.
Articolo come riportato nella descrizione.
Ottimo cavo per il prezzo pagato (made in china), schermatura molto rada. In compenso cavo abbastanza flessibile e rame interno rigido. Installato per incirca 25 m, a tratti entro corrugati della 220V. Il segnale arriva al ddt in buono stato e senza disturbi. Nessun difetto da segnalare
Data sheet
- Type: Splitters
- Version: 4 outputs
