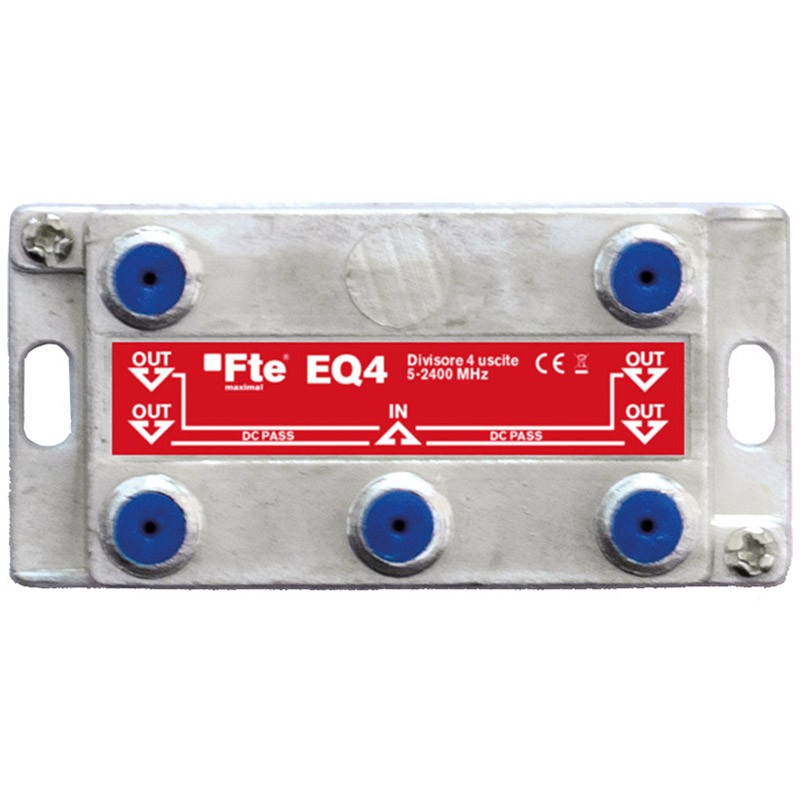

TV/SAT Splitter FTE 4-Way Class A 5-2400 MHz Terrestrial and Satellite EQ4
FTE EQ4
8436018447919
The FTE inductive splitter is the ideal solution for distributing terrestrial and satellite TV signals to two user outlets. With Class A shielding, current pass-through, and compact dimensions, it is perfect for both domestic installations and communal or multiservice networks, with the following features:
-
Number of outputs: 4
-
Working band: 5 - 2400 MHz
-
TV output isolation: 22 dB
-
SAT output isolation: 18 dB
-
Connection type: F connectors
-
Electromagnetic shielding: > 100 dB – Class A
-
Return loss: > 8 dB
-
Dimensions: 77x27x35 mm (LxWxH)
€6.56
Items Available: 50
: 28
TV/SAT Splitter efficiency and versatility in every installation
The FTE splitter allows for balanced signal distribution in SAT and terrestrial TV installations, maintaining low loss and constant impedance. Thanks to inductive technology and DC pass-through from output to input, it supports active equipment such as LNB or multiswitch.
Where to use it
-
Inside apartment: to split the signal to multiple TV/SAT outlets
-
Risers: to distribute the signal to multiple floors or staircases
-
Complex structures: ideal for sub-columns or multiservice networks
-
Compatible with SCR, dCSS, and centralized systems
Technical Features TV/SAT Splitter FTE
| Number of outputs | 4 |
| Working band | 5 - 2400 MHz |
| TV pass-through attenuation | 9.2 dB (47 ÷ 862 MHz) |
| SAT pass-through attenuation | 11 dB (950 ÷ 2150 MHz) |
| TV output isolation | 22 dB |
| SAT output isolation | 18 dB |
| Current pass-through | Yes (OUT → IN) |
| Connection type | F connectors |
| Electromagnetic shielding | > 100 dB – Class A |
| Return loss | > 5 dB |
| Operating temperature | -10 ÷ +55 °C |
| Dimensions (L×W×H) | 77×27×35 mm |
| Reference standard | EN 50083-2 |
There are no reviews
Data sheet
- Type: Splitters
