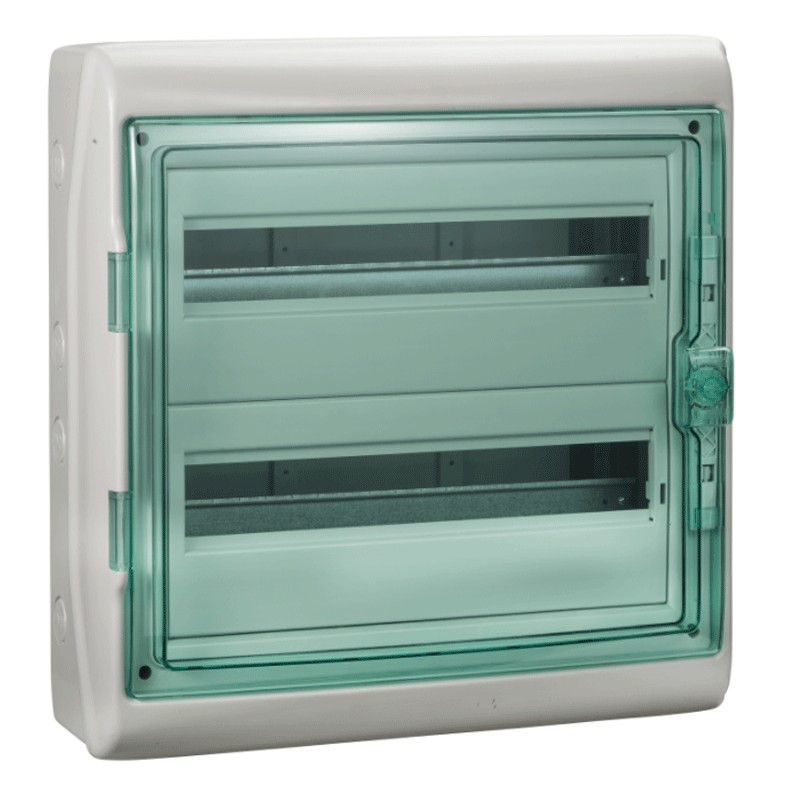

Schneider wall-mounted switchboard 36 modules IP65 transparent door 10343

Schneider
Schneider
SNR 10343 3303430103431

Schneider Kaedra wall-mounted switchboard, with the following features:

  • 36 modules (in two rows)
  • IP65 degree of protection in accordance with IEC 60529
  • Degree of protection IK09 in accordance with EN 50102
Do you have questions about this product or did you not find what you were looking for? Ask us!
Schneider wall-mounted switchboard 36 modules IP65 transparent door 10343
€99.46
€99.46

€99.46
Tax included
Calculate shipping cost
Items Available: 28
Further availability of the manufacturer
€99.46

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Schneider series
  • Power dissipation 47W
  • Nominal current [In] 90 A
  • 36 modules (in two rows)
  • Without mounting plate
  • Insulation class II
  • Reversible front panel type transparent
  • DIN rail type
  • Description optional key lock options
  • Housing material self-extinguishing polymer
  • Width 448 mm
  • Height 460 mm
  • Depth 160 mm
  • Internal depth 88 mm
  • Door colour transparent green
  • Enclosure colour light grey (RAL 7035)
  • Fire resistance 650 °C in accordance with IEC 60695-2-1
  • Degree of protection IP65 in accordance with IEC 60529
  • Degree of protection IK09 in accordance with EN 50102
  • Overvoltage category II
  • Ambient operating temperature -25 + 60 °C

There are no reviews

Data sheet

Type:
Front panels
Wall
Modules:
36
Degree of protection:
IP65
Model:
With door
