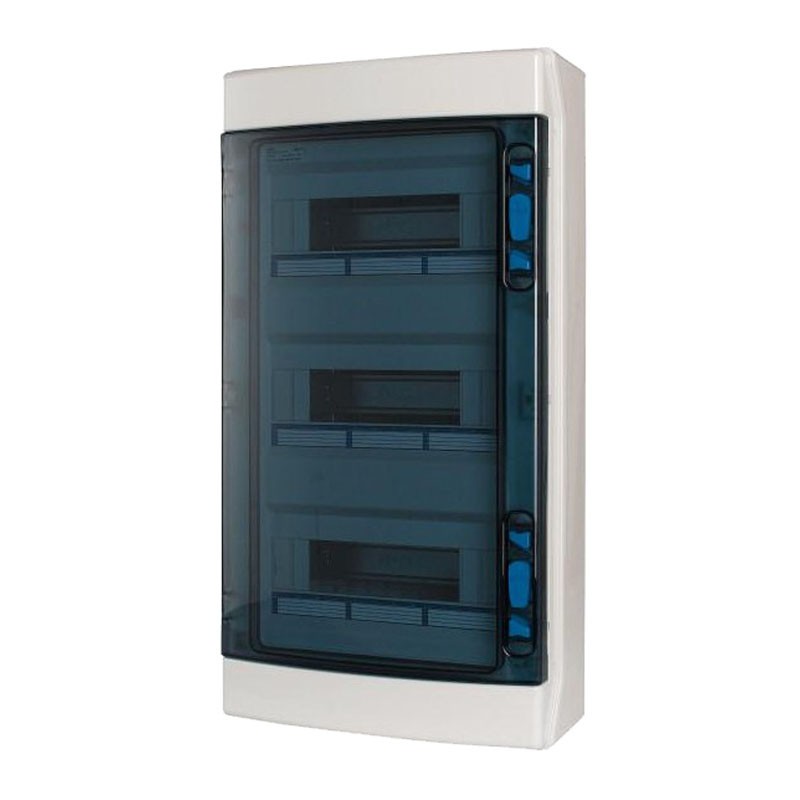

Features:

• Eaton Series
• 36 modules (on three rows)
• Nominal operating voltage Ue VAC 415
• Rated frequency 50 Hz
• Insulation voltage AC VAC 1000 - DC VDC 1500
• Power dissipation 49,2W
• Degree of protection IP65
• Impact resistance degree IK08
• Protection class II, total insulation
• ABS material (plastic) (insulation material)
• Switchboard colour grey RAL 7035
• Polycarbonate door, transparent colour

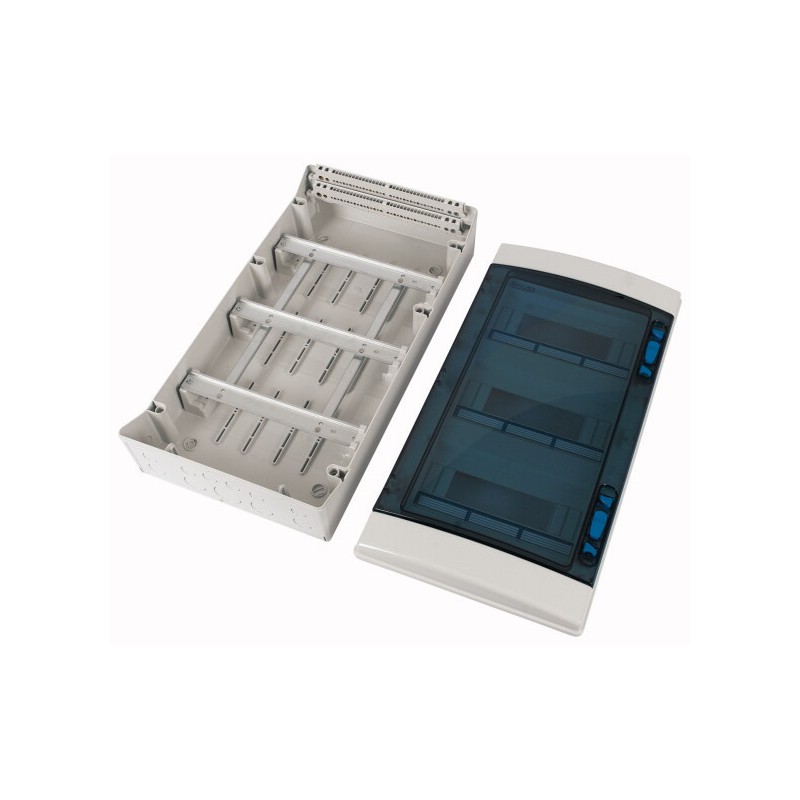

• ST version with single removable multi-row DIN frame
• Large wiring space, up to 46 mm below DIN rail
• Module compensation tolerance in cover pre-straightening
• Lead-through screws and cover
• Can be mounted directly on the wall, without drilling holes in the switchboard
• Depth adjustable DIN rail, 150 mm spacing between DIN rails
• Quick and easy reversal of the door stop side
• Pre-slots for cable entry also on side walls
• Intuitive locking and unlocking of doors, cylinder lock can be fitted (as an accessory)
• 650°C glow wire resistance
• Halogen-free
• Without lock
• Installation location Interior
• Exposed installation type
• Metric cable entries top and bottom, side wall, rear wall
• Compliant with IEC/EN 62208; IEC/EN 60670-24
• Ambient temperature - 25°C / +40 °C
• Height 586 mm
• Width 310 mm
• Depth 145 mm
• Recessed depth 70 mm
• Internal depth 60 mm
