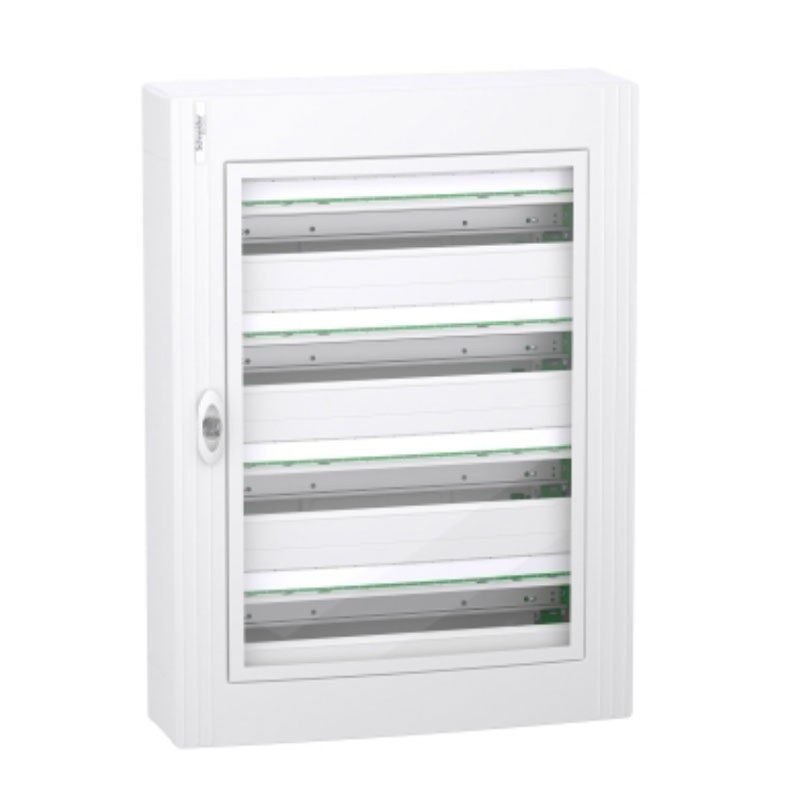

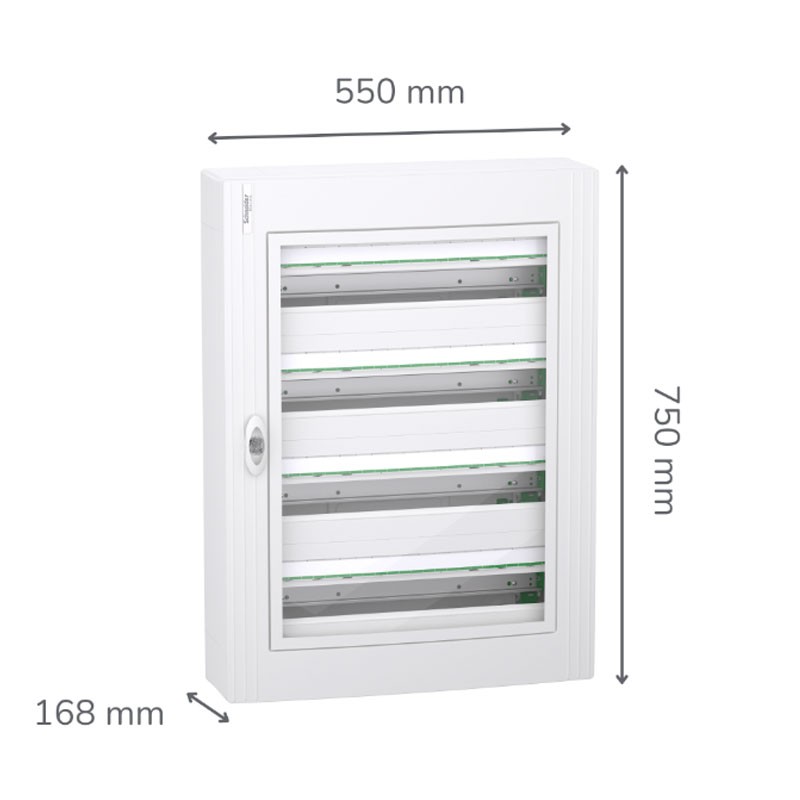

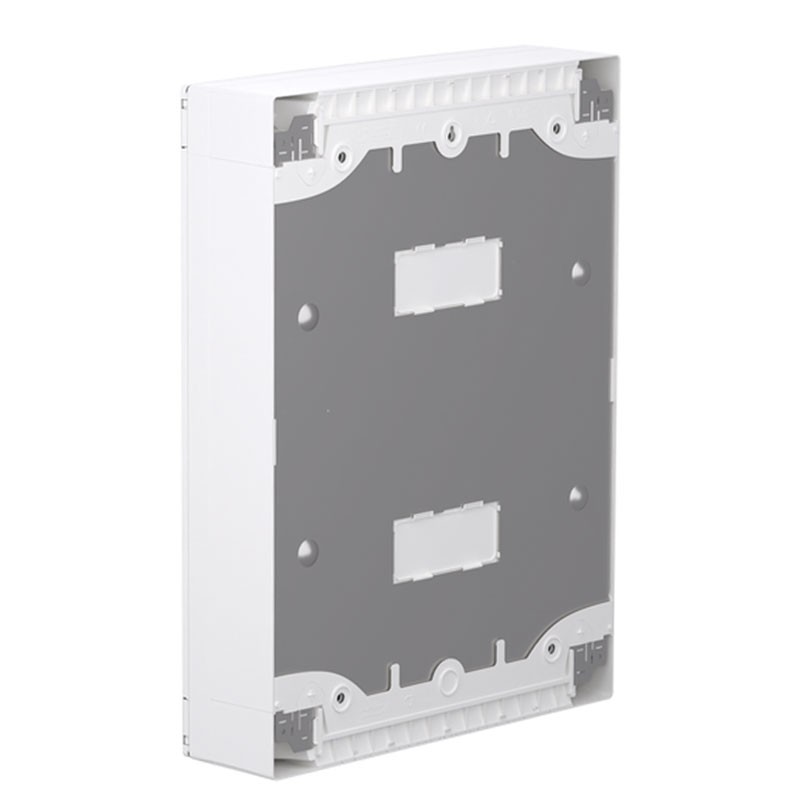

This PrismaSeT XS enclosure is a surface-mounted distribution enclosure. This metal and plastic enclosure consists of 4 rows of 24 18 mm modules. It can accommodate all types of modular switchgear. This enclosure is dedicated for indoor installation. The IP rating is IP40 when the door is closed. It is equipped with a colorless transparent door. The color of the enclosure and front plate is white (RAL 9003). This ready-to-use enclosure is intended for the residential and tertiary sectors. It is designed for electricians, providing ergonomics and installation flexibility. Cables can enter from the top or bottom of the cabinet via removable grommet plates. It allows entry via cable, pipe or conduit. Features 1 back plate and 4 DIN rails. The rails are removable and facilitate wiring and maintenance. It comes with 1 ground terminal block. This terminal block provides 38 outputs (6x25mm²+32x4mm²). It can also accommodate a 24-module Acti9 VDIS vertical distributor. It comes with 1 identification label, 1 label protector, 1 blind plate strip, and some accessories for securing cables. The electrical insulation class is class II. The rated insulation voltage Ui is 400V. The overvoltage category is II. The rated current In is up to 125A. It complies with IEC 60670-1 and 24, IEC 61439-1 and 3. The total dimensions are (W) 550 mm x (H) 750 mm x (D) 168 mm. The weight of the product is 16.910 kg. The case and front plate are made of technoplastic. The back is made of metal. The door is made of glass. The resistance of plastic to flame and abnormal heat is 650°C for housing and front plate. The degree of protection IK is IK09 when the door is closed. The operating temperature is between -25°C and 60°C.




Advantages:

• Ease of installation
• Removable side and top/bottom entry cables
• Removable DIN rails
• IP30 degree of protection that becomes IP40 with additional port
• Wide range of terminal blocks, screw or screwless, supplied or available as accessories
• Product environmental performance



Equipment provided:

• 4 identification label
• 4 label protectors
• 1 terminal block
• 1 end plate
• 1 door
• 4 DIN rail
• 6 hardware for securing cables
• 1 back plate




Other technical features:

• Front plate type: Modular
• Type of door: Transparent
• Track type: DIN symmetrical
• Mounting plate description: Without mounting plate
• Removable parts: DIN rail
• Power dissipation 87W
• Rated current: 125A
• Rated insulation voltage [Ui]: 400V
• Cable entry: Cable or tube - Cutout plates - Channels - Removable plates
• Number of terminal blocks: 1 ground with 38.0 outlets
• Distribution block outlets: 6 x 25 mm² + 32 x 4 mm² for ground
• Connections - terminals: Screw connection (earth) , 6.0 x 6...25 mm², Push-in (earth) , 32.0 x 1.5...4 mm² (flexible), Push-in (earth) , 32.0 x 6 mm² (rigid or flexible)
• Description of lock options: Key lock option
• Housing material: Back: metal -Case: technoplastic -Front: technoplastic -Port: glass
• Net weight: 16.910 kg
• Color: Enclosure: white (RAL 9003) - Front panel: white (RAL 9003) - Door: colorless
• Market segment: Residential - Small buildings
• Fire resistance: Enclosure: 650 °C in accordance with IEC 60695-2-11 - Front plate: 650 °C in accordance with IEC 60695-2-11
• Standards: IEC 60670-1 - IEC 60670-24 - IEC 61439-1 - IEC 61439-3
• Quality labels: IMQ
