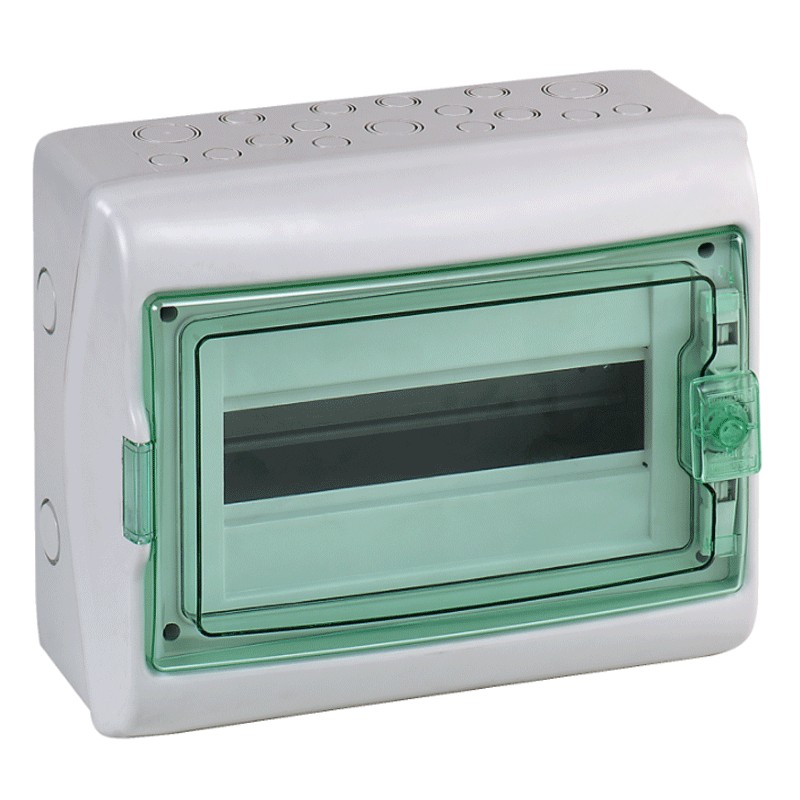

Schneider wall-mounted switchboard 18 modules IP65 transparent door 10341
SNR 10341
3303430103417
Schneider Kaedra wall-mounted switchboard, with the following features
- 18 modules
- IP65 degree of protection in accordance with IEC 60529
- Degree of protection IK09 in accordance with EN 50102
€48.67
Items Available: 66
: 23
Features:
- Schneider Series
- Power dissipation 34W
- Nominal current [In] 90 A
- 18 modules
- Without mounting plate
- Insulation class II
- Reversible front panel type transparent
- DIN rail type
- Description optional key lock options
- Housing material self-extinguishing polymer
- Width 448 mm
- Height 280 mm
- Depth 160 mm
- Internal depth 88 mm
- Door colour transparent green
- Enclosure colour light grey (RAL 7035)
- Fire resistance 650 °C acc. to IEC 60695-2-1
- Degree of protection IP65 in accordance with IEC 60529
- Degree of protection IK09 in accordance with EN 50102
- Overvoltage category II
- Ambient operating temperature -25 + 60 °C
There are no reviews
Data sheet
- Type: Front panels
- Modules: 18
- Degree of protection: IP65
- Model: With door
Wall
