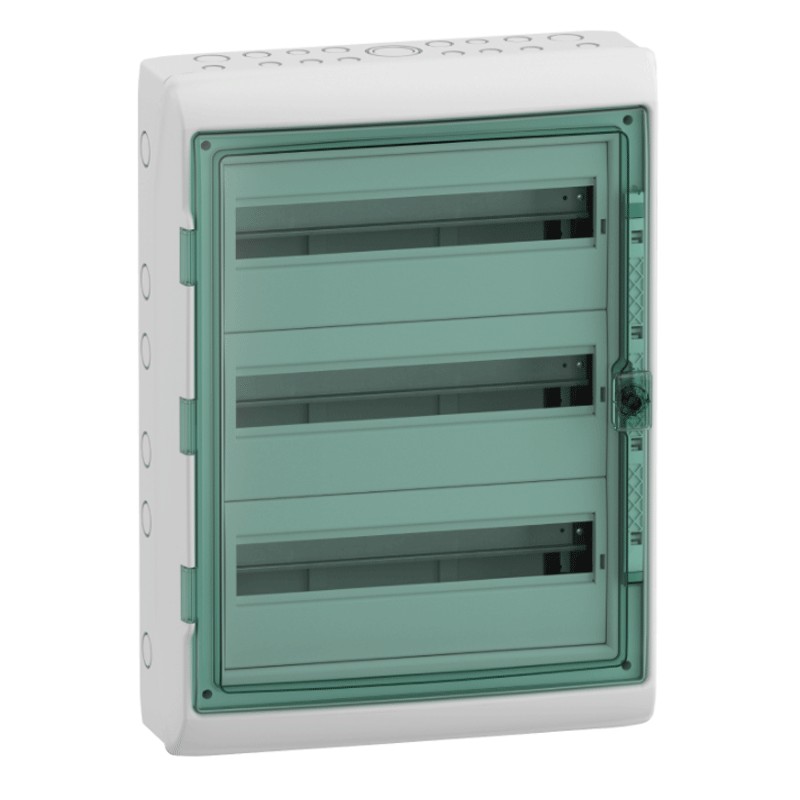

Schneider switchboard 54 modules IP65 transparent door 10345
SNR 10345
3303430103455
Schneider Kaedra wall-mounted switchboard, with the following features:
- 54 modules (in three rows)
- IP65 degree of protection in accordance with IEC 60529
- Degree of protection IK09 in accordance with EN 50102
€151.76
Items Available: 42
: 18
Features:
- Schneider Series
- Power dissipation 46W
- Nominal current [In] 90 A
- 54 modules (three rows)
- Without mounting plate
- Insulation class II
- Reversible front panel type transparent
- DIN rail type
- Description optional key lock options
- Housing material self-extinguishing polymer
- Width 448 mm
- Height 610 mm
- Depth 160 mm
- Internal depth 88 mm
- Door colour transparent green
- Housing colour light grey (RAL 7035)
- Fire resistance 650 °C in accordance with IEC 60695-2-1
- Degree of protection IP65 in accordance with IEC 60529
- Degree of protection IK09 in accordance with EN 50102
- Overvoltage category II
- Ambient operating temperature -25 + 60 °C
Le carton du colis était déchiré, et le tableau un peu sale.
A part ça, le tableau est conforme à la commande
Data sheet
- Type: Front panels
- Modules: 54
- Degree of protection: IP65
- Model: With door
Wall
