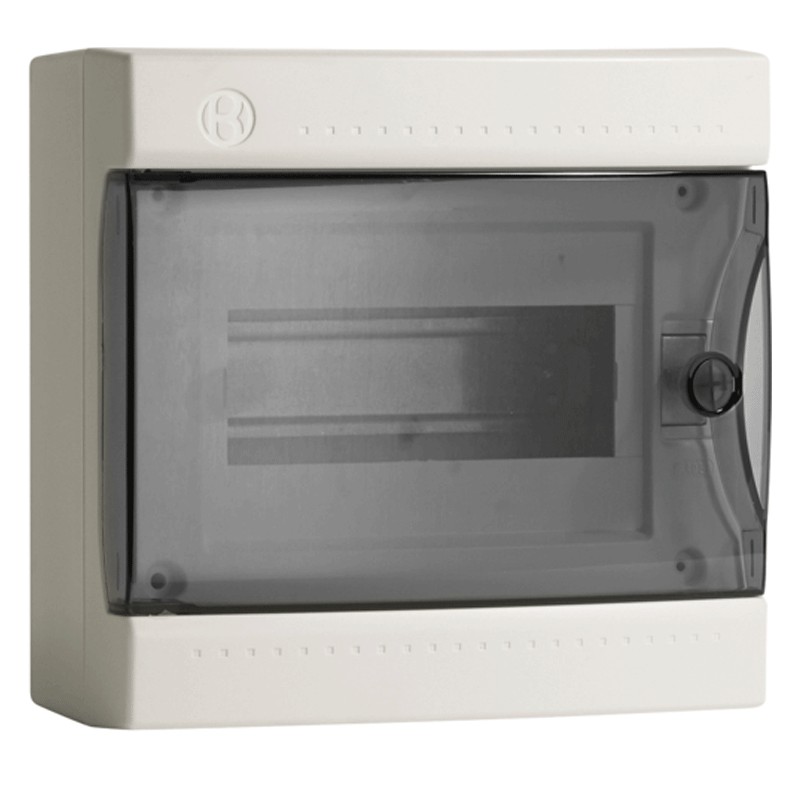

Bocchiotti switchboard with door 8 modules IP40 B04083
IBO B04083
8015892040838
Switchboard with door Bocchiotti, with the following features:
- Wall installation with DIN bar (universal connection that allows to hook any switch with DIN connection even of different brand)
- 8 modules
- Degree of protection IP40 (protection against solid bodies 1mm)
€19.31
Items Available: 205
: 99
Features:
- Bocchiotti Series
- Rated current 125 A
- Wall installation with DIN bar (universal connection that allows to hook any switch with DIN connection even of different brand)
- 8 modules
- Degree of protection IP40 (protection against solid bodies 1mm)
- Protruding fixing method
- Door colour smoky grey
- Switchboard colour white cream RAL 9001
- Material plastic
- Depth 103 mm
- Internal depth 48 mm
- Height 200 mm
- Width 210 mm
- Insulation protection class II
- Degree of resistance to glow wire according to EN 60695-2-11: 960°C
- Operating temperature -25...60 °C
There are no reviews
Data sheet
- Type: Front panels
- Modules: 8
- Degree of protection: IP40
- Model: With door
Wall
