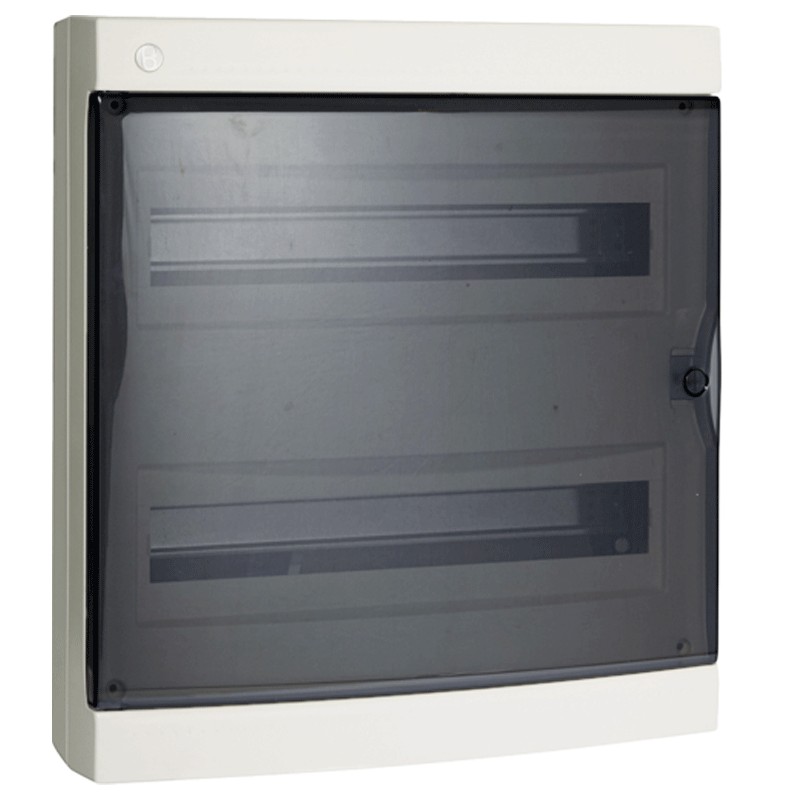

Bocchiotti switchboard with door 36 modules IP40 B04089
IBO B04089
8015892040890
Switchboard with door Bocchiotti, with the following features:
- Wall installation with DIN bar (universal connection that allows to hook any switch with DIN connection even of different brand)
- 36 modules (two rows)
- Degree of protection IP40 (protection against solid bodies 1mm)
€73.53
Items Available: 26
: 9
Features:
- Bocchiotti Series
- Rated current 125 A
- Wall installation with DIN bar (universal connection that allows to hook any switch with DIN connection even of different brand)
- 36 modules (two rows)
- Degree of protection IP40 (protection against solid bodies 1mm)
- Protruding fixing mode
- Door colour smoky grey
- Switchboard colour cream white RAL 9001
- Material plastic
- Depth 137 mm
- Internal depth 48 mm
- Height 450 mm
- Width 408 mm
- Insulation protection class II
- Degree of resistance to glow wire according to EN 60695-2-11: 960°C
- Operating temperature -25...60 °C
Data sheet
- Type: Front panels
- Modules: 36
- Degree of protection: IP40
- Model: With door
Wall
