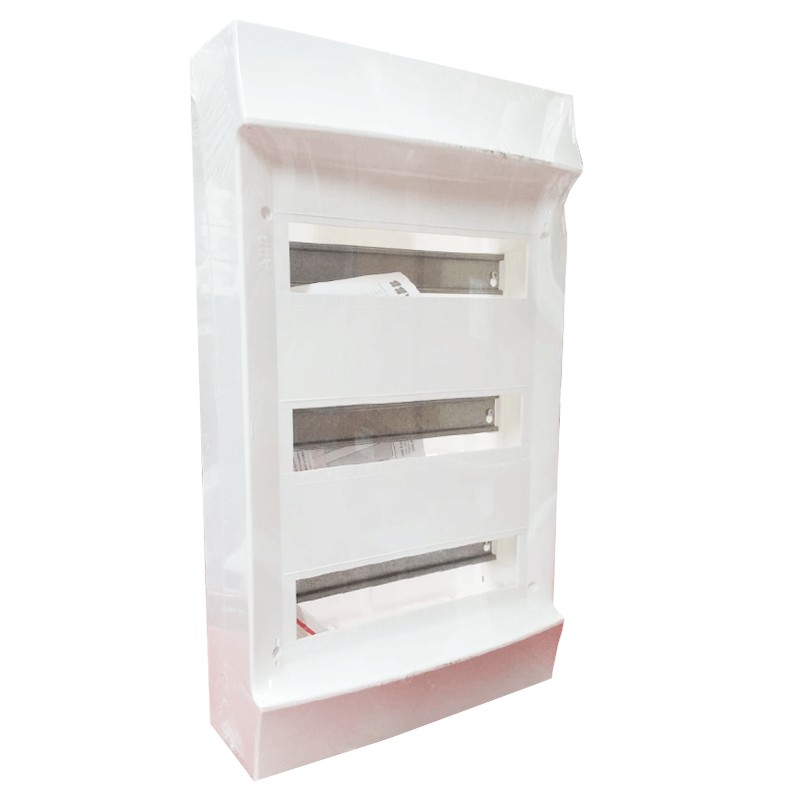

ABB wall-mounted switchboard 36 IP40 modules without door 3 rows 41P12X30
ABB 41P12X30
8712507119452
Wall-mounted switchboard without Abb door, with the following features:
- With DIN bar (universal connection that allows to hook any switch with DIN connection even of different brand)
- 36 modules (three rows)
- IP41 degree of protection (protection against solid bodies 1mm)
€43.76
Items Available: 2
Features:
- With DIN bar (universal connection that allows to hook any switch with DIN connection even of different brand)
- 36 modules (three rows)
- Degree of protection IP41 (protection against solid bodies 1mm)
- Width 292 mm
- Height 507 mm
- Depth/net length 120 mm
- Internal depth 74 mm
- Product net weight 1.532 kg
- Colour white
- Housing material thermoplastic
- Housing material plastic
- Mounting type - wall mounting
- Ambient temperature - operation -10 ...+60 °C
- Glow wire test 650°C
- Number of line terminals 0
- Number of lines 3
- Power loss 36.8W
Centralino ABB da parete 36 moduli IP40 senza porta 3 file 41P12X30:
ottimo centralino
Data sheet
- Type: Front panels
- Modules: 36
- Degree of protection: IP40
- Model: Without door
Wall
